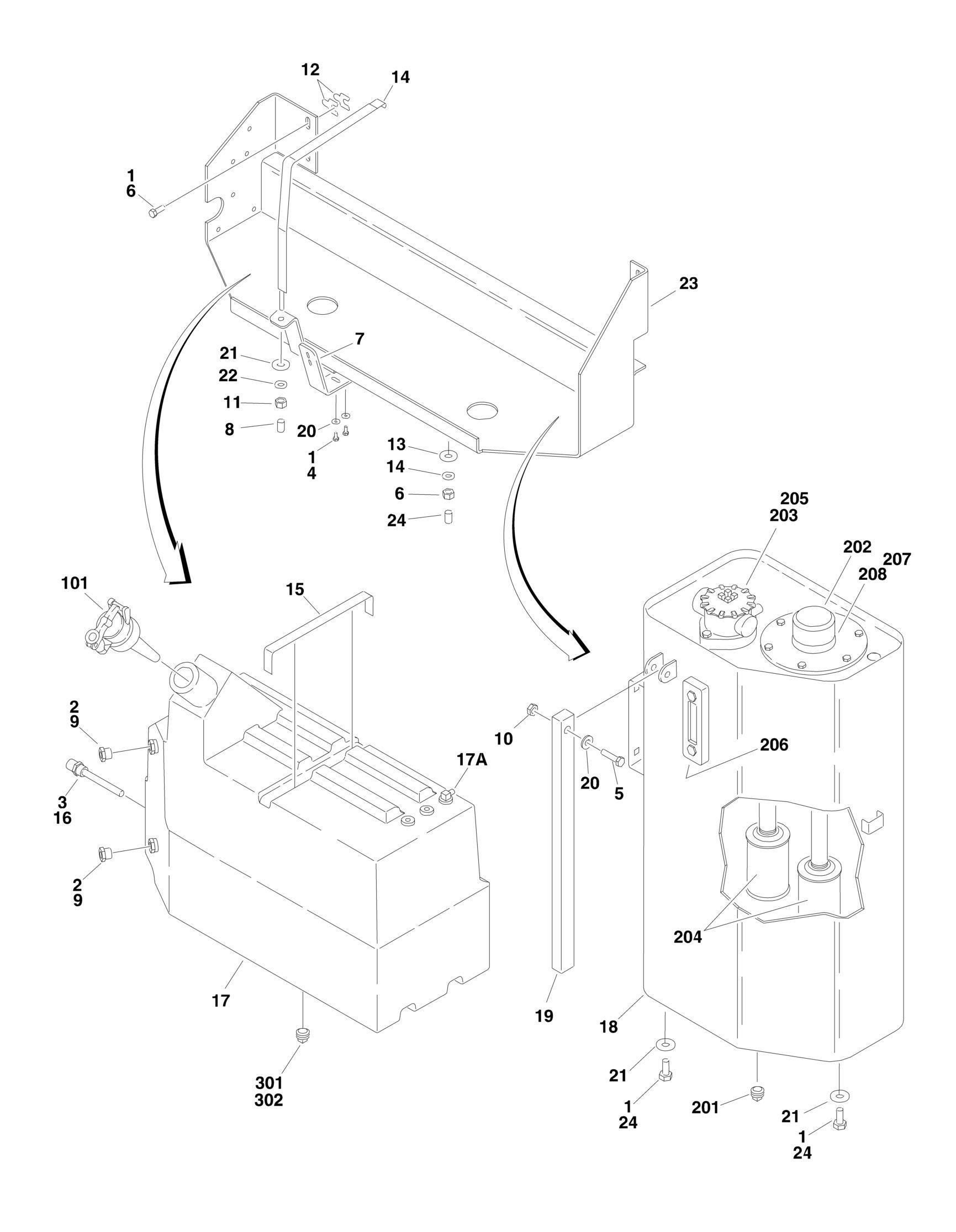

FIGURE 2-17. TANK INSTALLATIONS
FIGURE 2-17. TANK INSTALLATIONS
FIGURE 2-17. TANK INSTALLATIONS
ITEM PART NUMBER QTY
0272491 Ref TANK INSTALLATIONS
DESCRIPTION
1 0100011 AR Compound, Locking 2 0100020 AR Sealant, Pipe 3 0100079 AR Permatex 4 0641405 2 Bolt 1/4in-20NC x 5/8in 5 0641416 1 Bolt 1/4in-20NC x 2in 6 0641608 4 Bolt 3/8in-16NC x 1in 7 0902535 1 Bracket, Hood Latch 8 1120532 2 Cap, Protective 9 2420115 2 Gauge, Sight (All Belgium Built Machines) 9 2420115 2 Gauge, Sight (All Romanian Built Machines) (SN E300000100
through E300000323)
10 3311405 1 Locknut 1/4in-20NC 11 3311601 1 Nut 3/8in-16NC 12 4070410 2 Shim 14 4240145 1 Strap, Tank Mount 15 4280295 2 ft/.61m Strip, Bumper 16 4360436 1 Switch, Fuel Level 17 4400408 1 Tank, Fuel (Includes p/n 7016314 Standard Cap) 17A 7020056 1 Fitting and Hose (Supply Line) 18 4400451 1 Hydraulic Tank Assembly (See Items 201-209 for Breakdown) 19 4567627 1 Tube, Hood Prop 20 4751400 4 Flatwasher 1/4in Regular 21 4751600 8 Flatwasher 3/8in Regular 22 4761600 1 Lockwasher 3/8in 23 4846665 1 Tray Weldment 24 0641606 2 Bolt 3/8in-16NC x 3/4in 25 2820035 2 ft/.61m Insulate, Tubing (Not Shown) 101 Ref FUEL CAP OPTIONS 101 7016314 Ref Standard Non-Locking Cap 101 1120484 Ref Locking Cap (Red) 101 1120487 Ref Locking Cap (Blue) 4400451 Ref HYDRAULIC TANK ASSEMBLY 201 7024446 1 Plug, Magnetic 202 7024444 1 Cap, Fill 203 7024445 1 Screen 204 7024442 2 Strainer 205 Ref ASSEMBLY FILTER, RETURN OPTIONS: 205 Ref Belgium Built Machines (Prior to SN 1300006742) 205 7020226 1 Assembly Filter, Return 205 7023205 1 Filter, Element 205 7023205 1 Filter, Element Belgium Built Machines (SN 1300006742 to
Present)
205 7023205 1 Filter, Element Romanian Built Machines (SN E300000100
through E300001114)
205 70001959 1 Assembly Filter, Return 205 70001960 1 Filter, Element 205 70002768 1 Spring, Return Filter Assembly 206 7024441 1 Gauge, Sight 207 7024439 1 Cover
REV
F
H
ITEM PART NUMBER QTY DESCRIPTION
208 7024443 1 Filler Neck 209 7024440 1 Gasket (Not Shown) Ref ENGINE INSTALLATIONS 301 2200222 1 Plug 302 0100020 AR Sealant, Pipe
