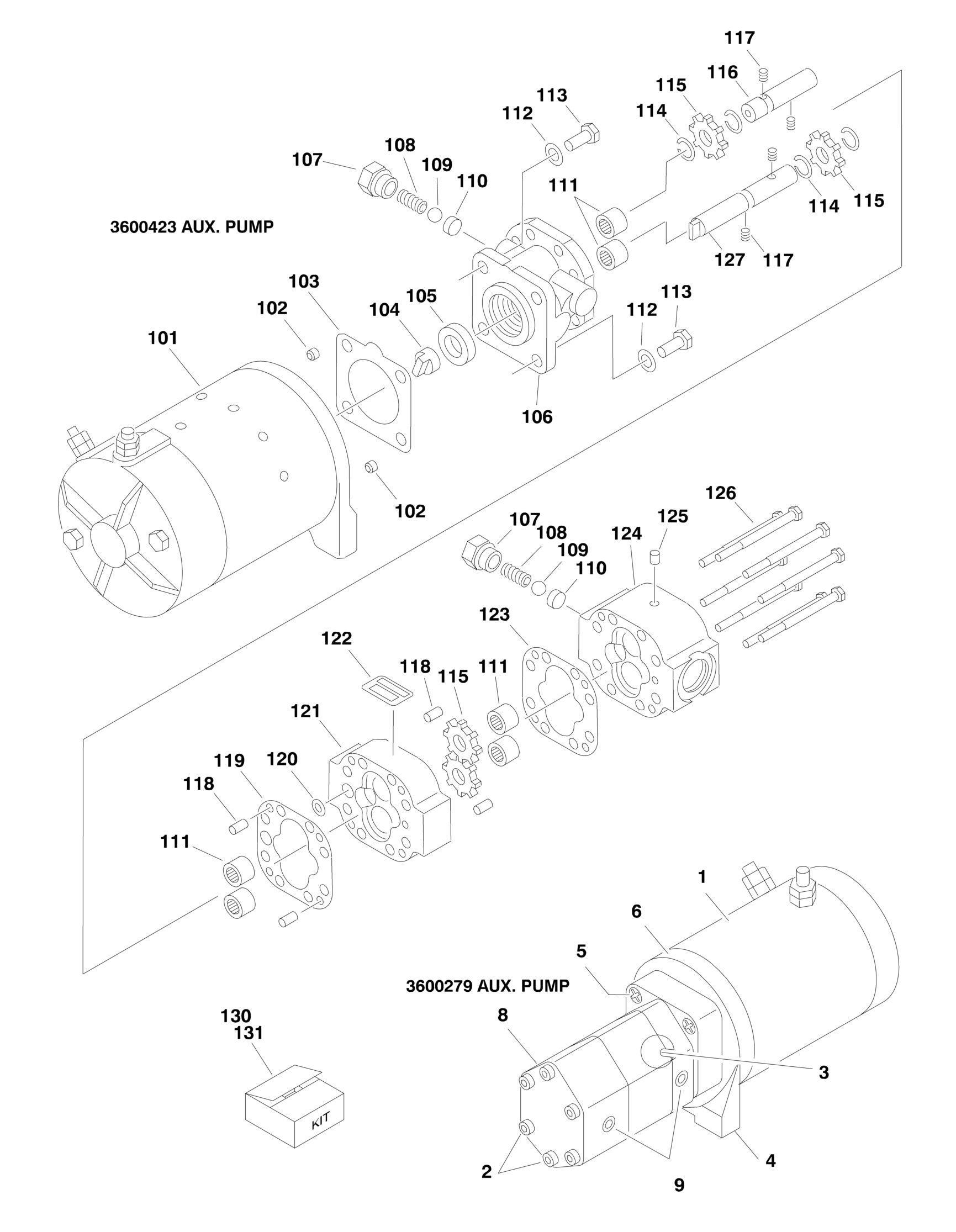

FIGURE 2-16. AUXILIARY PUMP ASSEMBLY
FIGURE 2-16. AUXILIARY PUMP ASSEMBLY
FIGURE 2-16. AUXILIARY PUMP ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
Ref AUXILIARY PUMP ASSEMBLIES Ref Usage: 3600279 Ref Belgium Built Machines (Original Equipment) (Prior to SN
1300003239)
3600423 Ref Belgium Built Machines (Service Replacement) (Prior to SN
1300003239)
3600423 Ref Belgium Built Machines (SN 1300003239 to Present) 3600423 Ref Romanian Built Machines (SN E300000100 through
E300001114)
Ref Note: Original Equipment Pump p/n 3600279 may have been
replaced with p/n 3600423 as a Service Replacement. Identify component before ordering parts.
3600279 Ref AUXILIARY PUMP ASSEMBLY 1 7016768 1 Motor, Replacement 1 7013757 1 Brush Kit 2 7016745 4 Capscrew, Socket Head 5/16in-24NF x 4-3/4in 3 7013711 1 Coupling, Drive 4 7016769 1 Bracket, Mounting 5 7016744 2 Screw 5/16in-18NC x 1in 6 7016746 1 Adapter, Mounting 7 7013766 2 Pin (Not Shown) 8 7013771 1 Pump, Replacement 8 See Note 1 Seal Kit - 7013771 Pump (Note: Not Available - Purchase qty 4 of p/n 7016701 O-Ring & qty 1 of p/n 7000754 Shaft Seal) 9 See Note 2 Valve, Check (Note: Not Available for Purchase) 3600423 Ref AUXILIARY PUMP ASSEMBLY 101 7011067 1 Motor and Adapter 102 See Note 2 Setscrew (Note: Not Available for Purchase) 103 7011044 1 Gasket, Mounting 104 7011016 1 Coupling 105 70000969 1 Seal, Shaft 106 70000978 1 Stator 107 See Note 2 Cap Assembly (Note: Use Item 130 or 131.) 108 70000978 2 Spring 109 70000978 2 Ball 110 70000978 2 Seat 111 70000976 6 Bearing, Needle 112 70000978 4 Washer 113 70000978 4 Screw 114 70000970 4 Ring, Retaining 115 70000971 4 Gear 116 70000972 1 Shaft, Idler 117 70000978 4 Pin, Drive 118 70000978 4 Pin, Dowel 119 70000973 1 Gasket 120 See Note 1 O-Ring (Note: Use Item 130 or 131.) 121 70000978 1 Housing, Gear 122 See Note 1 Label (Note: Not Available for Purchase) 123 7000974 1 Gasket 124 70000978 1 Housing, Gear 125 70000978 1 Plug
REV
B
A
ITEM PART NUMBER QTY DESCRIPTION
126 70000978 8 Screw 127 70000975 1 Shaft, Drive 130 70000977 1 Seal Kit (Includes Items 103, 105, 120 & Qty 2 O-Rings for Item 107) 131 70000978 1 Replacement Pump Kit (Includes Items 103-121 & 123-127)
