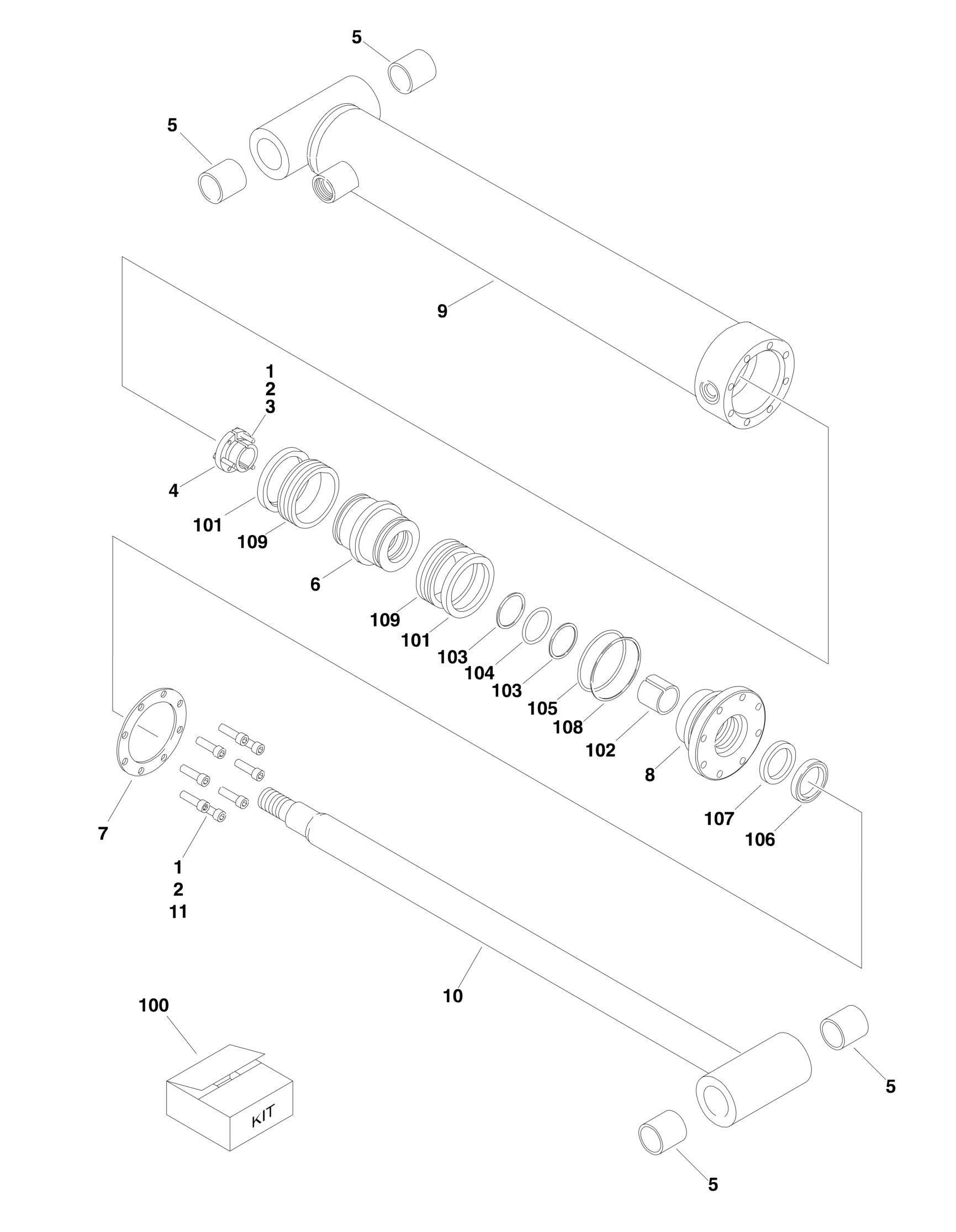

FIGURE 5-11. USA BUILT MACHINES/MASTER CYLINDER (450AJ SERIES II WITH ARCTIC PACKAGE
ITEM PART NUMBER QTY
DESCRIPTION
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1001138817 Ref MASTER CYLINDER ASSEMBLY (450AJ SERIES II WITH
ARCTIC PACKAGE)
1 0100011 AR Compound, Locking 2 0100038 AR Primer, Locking 3 3931016 3 Bolt Socket Head #10-24NC x 1in 4 0962185 1 Bushing, Tapered 5 0961951 4 Bushing, Garmax 6 3480247 1 Piston 7 3760368 1 Washer, Ring 8 1683052 1 Head 9 1683756 1 Barrel 10 1683772 1 Rod 11 3931516 8 Bolt Socket Head 5/16in-18NC x 1in 100 1001138818 1 Seal Kit, Cylinder (Includes Items 101-109) 101 1001138818 2 Ring, Lock 102 1001138818 1 Ring, Wear 103 1001138818 2 Ring, Back-Up 104 1001138818 1 O-Ring 105 1001138818 1 O-Ring 106 1001138818 1 Wiper 107 1001138818 1 Seal 108 1001138818 1 Ring, Back-Up 109 1001138818 2 Seal
REV
A
