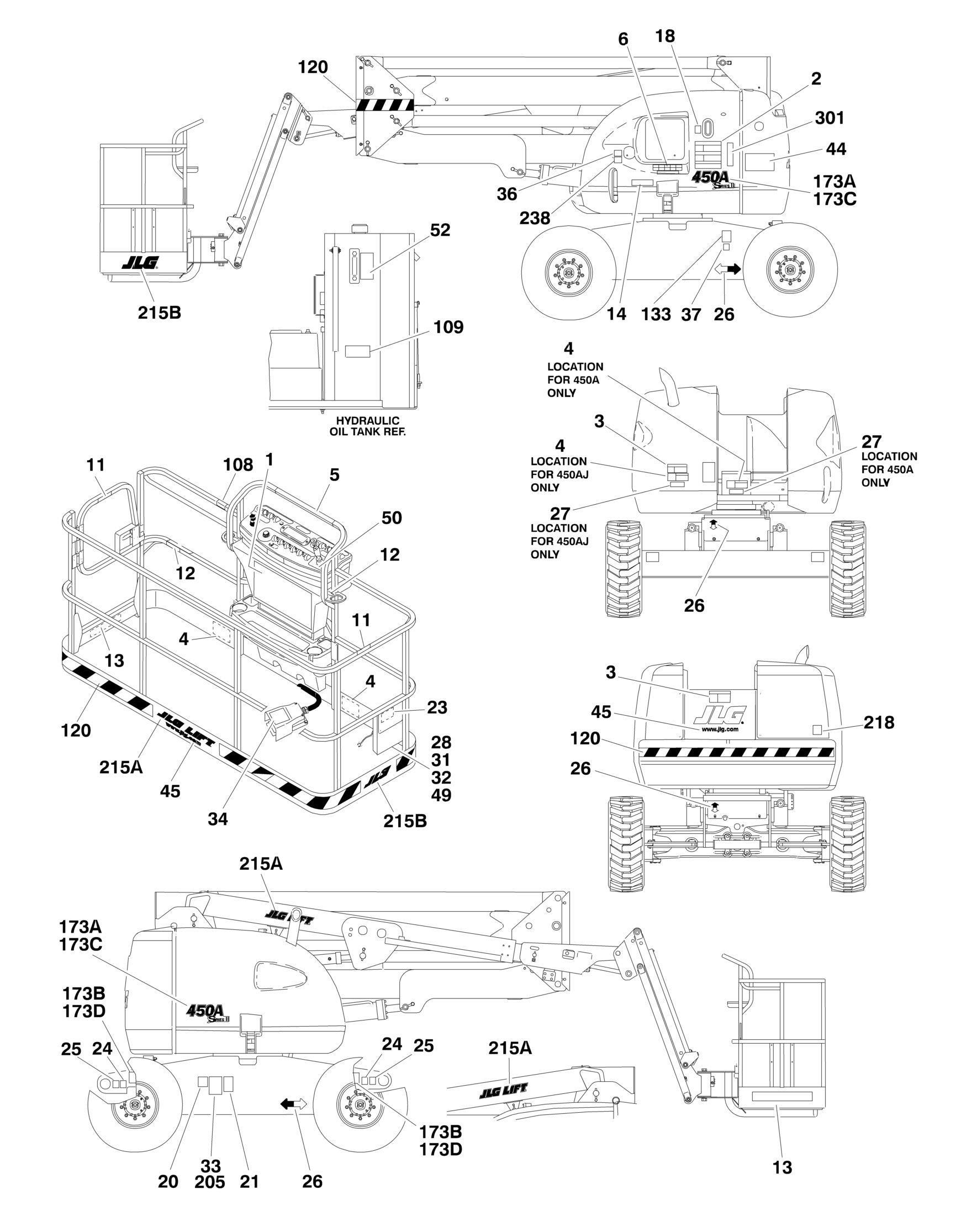

FIGURE 8-1. DECAL INSTALLATION - ANSI SPEC

FIGURE 8-1. DECAL INSTALLATION - ANSI SPEC

FIGURE 8-1. DECAL INSTALLATION - ANSI SPEC

ITEM PART NUMBER QTY

DESCRIPTION

1001143099 Ref STANDARD DECAL INSTALLATION 1 1703797 1 Decal - Danger/Warning 2 1703798 1 Decal - Danger/Warning 3 1703805 2 Decal - Danger/Electrocution 4 1703804 3 Decal - Warning/Crushing 5 1001108493 1 Decal - Legend 6 1706941 1 Decal - Legend 11 1702868 2 Decal - No Hands 12 1704277 3 Decal - Attach Lanyard Here 13 1001121801 1 Decal - Max Capacity 14 1001121814 1 Decal - Max Capacity 18 1701504 1 Decal - Hydraulic Oil 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 21 Ref Decal - Patent Options: 21 1700584 1 Decal - Patent (SN 0300160835 through 0300163014) 21 1001131269 1 Decal - Patent (SN 0300163015 through 0300201990) 23 1701509 1 Decal - Manual 24 1702300 4 Decal - Tie Down /Lift 25 1701500 4 Decal - Tie Down /Lift 26 1701529 4 Decal - Arrow 27 3251243 1 Nameplate 120V-60Hz 28 0860520 1 Box, Manual Storage 31 4751400 4 Flatwasher 1/4in Regular 32 3311405 4 Locknut 1/4in-20NC 33 3820001 2 Rivet 34 3252347 1 Decal - Footswitch 36 Ref Decal - Fuel 36 1701542 1 Gas Engine Machines 36 1701505 1 Diesel Engine Machines 37 Ref Decal - LPG Gas (Dual Fuel Machines Only) 37 1701243 1 Gas Engine Machines 37 Not Required 0 Diesel Engine Machines 44 1001143110 1 Decal - Lift Diagram 45 1704885 AR Decal - Website 49 0641406 4 Bolt, 1/4in-20NC x 3/4in 50 1705351 1 Decal, Drive/Steer 52 1001143112 1 Decal - Hydraulic Fill (USA Built Machines) (SN 0300160835

through 0300172163)

52 1001143112 1 Decal - Hydraulic Fill (Romanian Built Machines) (SN E300001114

through E300001163)

1001142990 Ref DECAL OPTIONS

108 108 1702962 Ref Decal - Warning Prop Options: Diesel Machines

108 1702961

Gas Machines 109 1704412 1 Decal - Hydraulic Fluid 120 0272165 Ref Warning Stripe Decal Installation 120 4420051 21.7 ft /6.6m Decal - Warning Stripes 133 1700818 1 Decal - LP (Gas Engine Machines Only) 173 Ref Model Designation Decal Installation Options

REV

D

ITEM PART NUMBER QTY DESCRIPTION REV

173 1001143108 Ref Model Designation Decal Installation 450A Series II A

173B 1704752 4 Decal - Max Tire Load 173 1001143109 Ref Model Designation Decal Installation 450AJ Series II A 173D 1704752 4 Decal - Max Tire Load 205 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 215 0272530 Ref JLG Logo Decals 1 215A 1702774 3 Decal - JLG Lift (3 1/2in) 215B 1702773 1 Decal - JLG (5in) 218 3251813 1 Decal - USA 238 1001108923 1 Decal - Low Sulfur Fuel (Diesel Machines Only) 0272341 Ref TIRE SEALANT DECAL INSTALLATIONS 1 301 1705363 1 Decal - Tire Sealant
