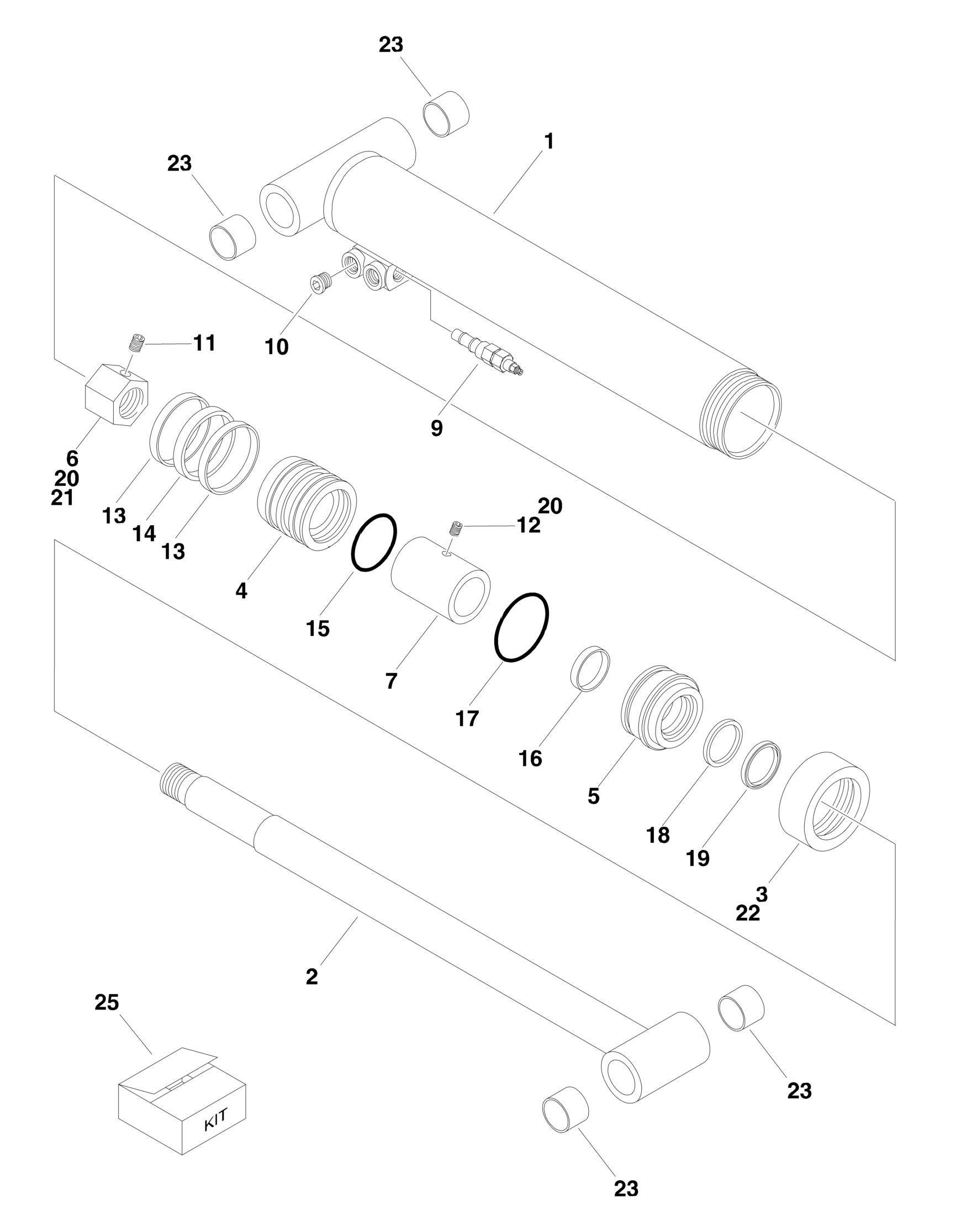

FIGURE 5-7. USA BUILT MACHINES/LIFT (MAIN BOOM) CYLINDER
ITEM PART NUMBER QTY DESCRIPTION REV
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. Ref LIFT (MAIN BOOM) CYLINDER ASSEMBLY 1684155 Ref Lift (Main Boom) Cylinder Assembly 450A SERIES II 2-D 1684154 Ref Lift (Main Boom) Cylinder Assembly 450AJ SERIES II 2-D 1 Ref Barrel Weldment Options: 1 1684060 1 1684155 Cylinder 1 1683946 1 1684154 Cylinder 2 Ref Rod Weldment Options: 2 1684059 1 1684155 Cylinder 2 1683947 1 1684154 Cylinder 3 1120108 1 Cap, End 4 3480240 1 Piston 5 1683504 1 Head 6 Ref Nut, Hex Options: 6 3300315 1 1684155 Cylinder 6 3300279 1 1684154 Cylinder 7 Ref Spacer, Tube Options: 7 4567177 1 1684155 Cylinder 7 4567908 1 1684154 Cylinder 9 4640936 1 Cartridge, Valve 9 2900770 1 Seal Kit - 4640936 Valve 10 2220885 1 Plug, O-Ring 11 3900170 1 Setscrew 12 Ref Setscrew Options: 12 3951402 1 1684155 Cylinder 12 3900142 1 1684154 Cylinder 13 1001118241 2 Ring, Wear 14 1001118241 1 Seal 15 1001118241 1 O-Ring 16 1001118241 1 Ring, Wear 17 1001118241 1 O-Ring 18 1001118241 1 Seal 19 1001118241 1 Wiper 20 0100011 AR Compound, Locking 21 0100038 AR Primer, Locking 22 0100035 AR Compound, Locking 23 0961950 4 Bushing 25 1001118241 1 Seal Kit, Cylinder (Includes Items 13-19)
