PACKAGE FIGURE 5-4. USA BUILT MACHINES/ LEVEL (PLATFORM SLAVE) CYLINDER (450AJ SERIES II WITH ARCTIC PACKAGE) ......................................................................................................................................................................................................286
ITEM PART NUMBER QTY
DESCRIPTION

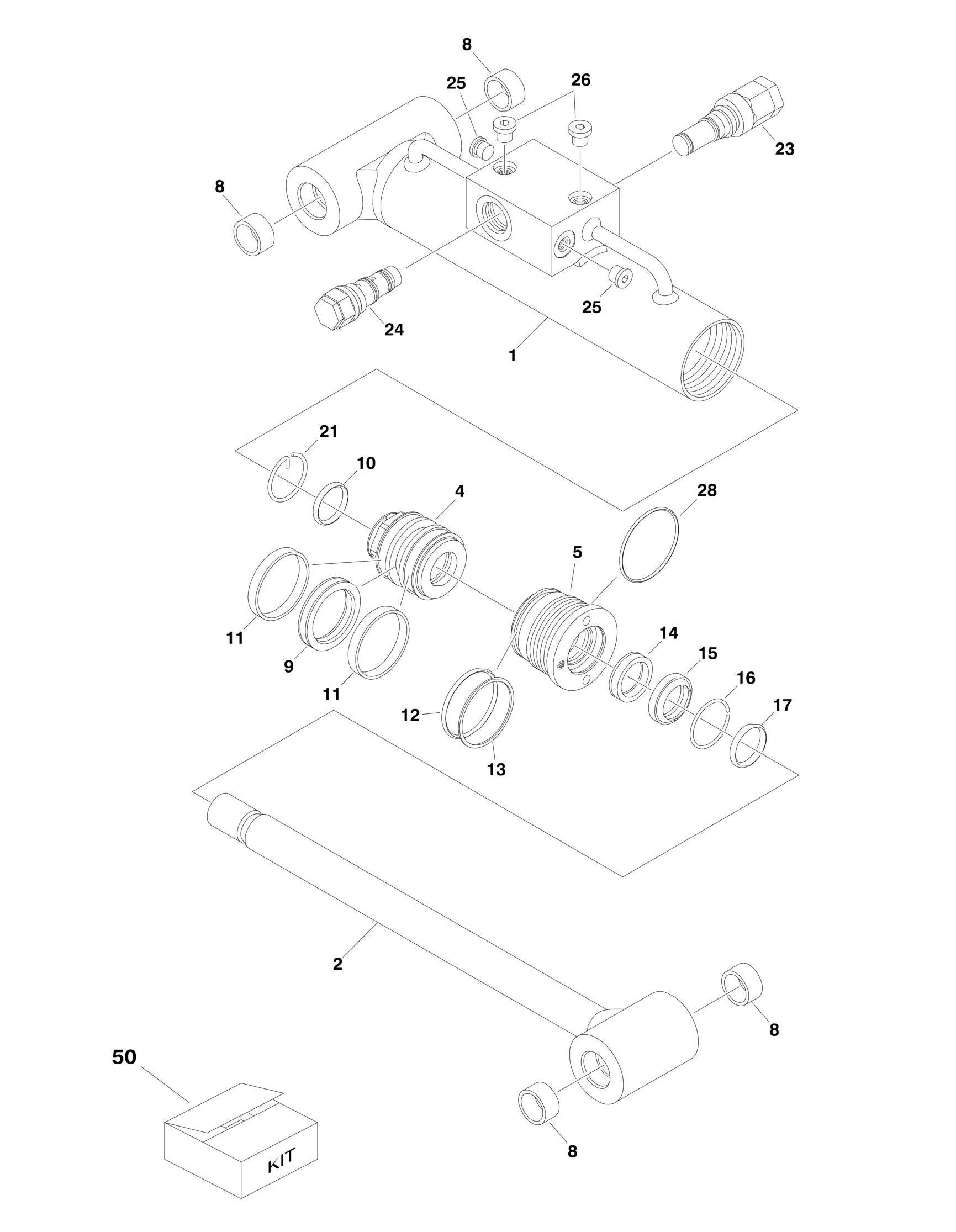

Ref USA Built Machines use SNs 03xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1001140279 Ref LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY (450AJ
SERIES II WITHOUT ARCTIC PACKAGE)
1 70003846 1 Barrel 2 70003847 1 Rod 4 70003819 1 Piston 5 7026082 1 Head 8 0961951 4 Bushing 9 70003845 1 Seal 10 70003845 1 O-Ring 11 70003845 2 Ring, Wear 12 70003845 1 O-Ring 13 70003845 1 Ring, Back-up 14 70003845 1 Seal 15 70003845 1 Wiper 16 70002217 1 Ring, Retaining 17 7026084 1 O-Ring 21 70002216 1 Retainer 23 4640932 1 Cartridge, Counterbalance Valve 23 7011112 1 Seal Kit - 4640932 Valve 24 4641086 1 Cartridge, Counterbalance Valve 24 2900792 1 Seal Kit - 4641086 Valve 25 7024844 2 Plug 26 See Note 2 Plug (Note: Not Available for Purchase) 28 70003845 1 O-Ring 50 70003845 1 Seal Kit (Includes Items 9-15 & 28)
REV
A
ITEM PART NUMBER QTY
DESCRIPTION

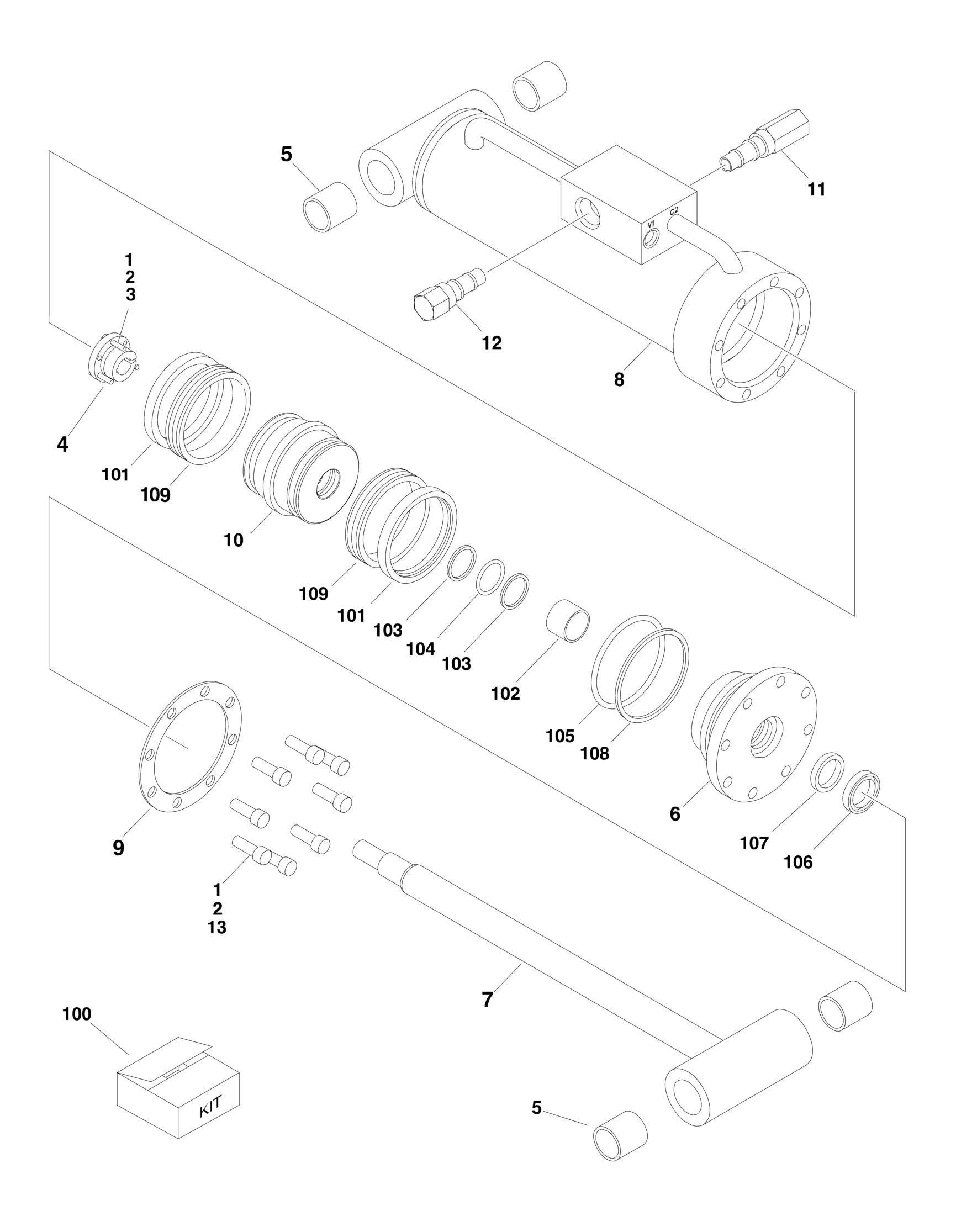

Ref USA Built Machines use SNs 03xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1001138815 Ref LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY (450AJ
WITH ARCTIC PACKAGE)
1 0100011 AR Compound, Locking 2 0100038 AR Primer, Locking 3 0630534 3 Bolt, Socket Head #10-24NC x 1in 4 0962185 1 Tapered Bushing 5 0961951 4 Bushing, Garmax 6 1683052 1 Head 7 1683759 1 Rod 8 1683761 1 Barrel 9 3760368 1 Washer, Ring 10 3480247 1 Piston 11 4640932 1 Cartridge, Valve (Counterbalance Vented) 11 7011112 1 Seal Kit - 4640932 Valve 12 4641086 1 Cartridge, Valve (Counterbalance Nonvented) 12 2900792 1 Seal Kit - 4641086 Valve 13 3931516 8 Bolt, Socket Head 5/16in-18NC x 1in 100 1001138818 1 Seal Kit, Cylinder (Includes Items 101-109) 101 1001138818 2 Ring, Lock 102 1001138818 1 Ring, Wear 103 1001138818 2 Ring, Back-Up 104 1001138818 1 O-Ring 105 1001138818 1 O-Ring 106 1001138818 1 Wiper 107 1001138818 1 Seal 108 1001138818 1 Ring, Back-Up 109 1001138818 2 Seal
REV
A
