FIGURE 5-2. USA BUILT MACHINES/LEVEL (PLATFORM SLAVE) CYLINDER (450A SERIES II FIGURE 5-3. USA BUILT MACHINES/LEVEL (PLATFORM SLAVE) CYLINDER (450AJ SERIES II WITHOUT ARCTIC

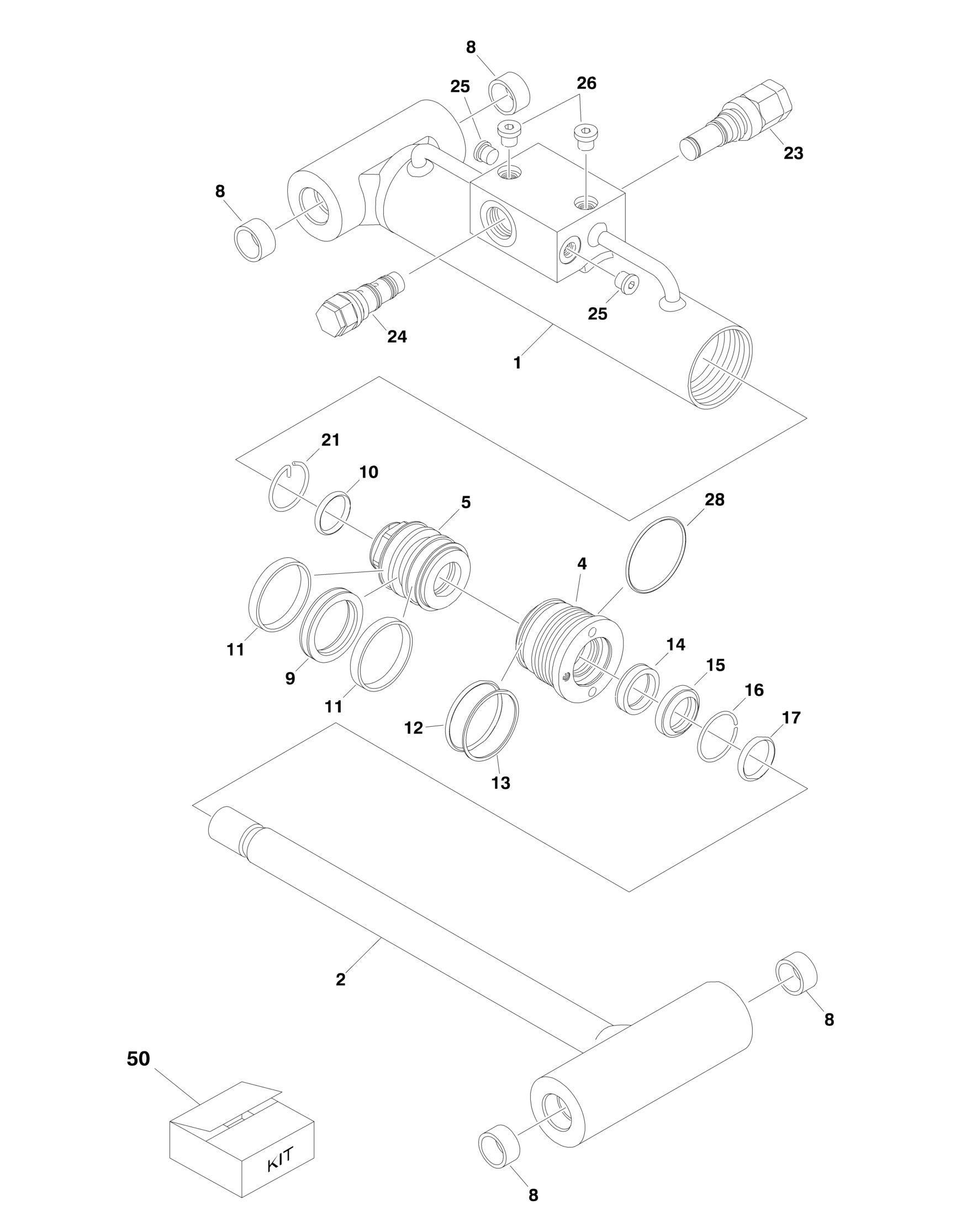

FIGURE 5-2. USA BUILT MACHINES/LEVEL (PLATFORM SLAVE) CYLINDER (450A SERIES II)

FIGURE 5-2. USA BUILT MACHINES/LEVEL (PLATFORM SLAVE) CYLINDER (450A SERIES II)

ITEM PART NUMBER QTY

DESCRIPTION

Ref USA Built Machines use SNs 03xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1001140274 Ref LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY (450A

SERIES II)

1 70003812 1 Barrel 2 70003813 1 Rod 4 70003809 1 Head 5 70003810 1 Piston 8 0961947 4 Bushing 9 70003814 1 Seal 10 70003814 1 O-Ring 11 70003814 2 Ring, Wear 12 70003814 1 O-Ring 13 70003814 1 Ring, Back-up 14 70003814 1 Seal 15 70003814 1 Wiper 16 70002217 1 Ring, Retaining 17 7026084 1 O-Ring 21 70002216 1 Retainer 23 4640932 1 Cartridge, Counterbalance Valve 23 7011112 1 Seal Kit - 4640932 Valve 24 4641086 1 Cartridge, Counterbalance Valve 24 2900792 1 Seal Kit - 4641086 Valve 25 7024844 2 Plug 26 See Note 2 Plug (Note: Not Available for Purchase) 28 70003814 1 O-Ring 50 70003814 1 Seal Kit (Includes Items 9-15 & 28)

REV

B
