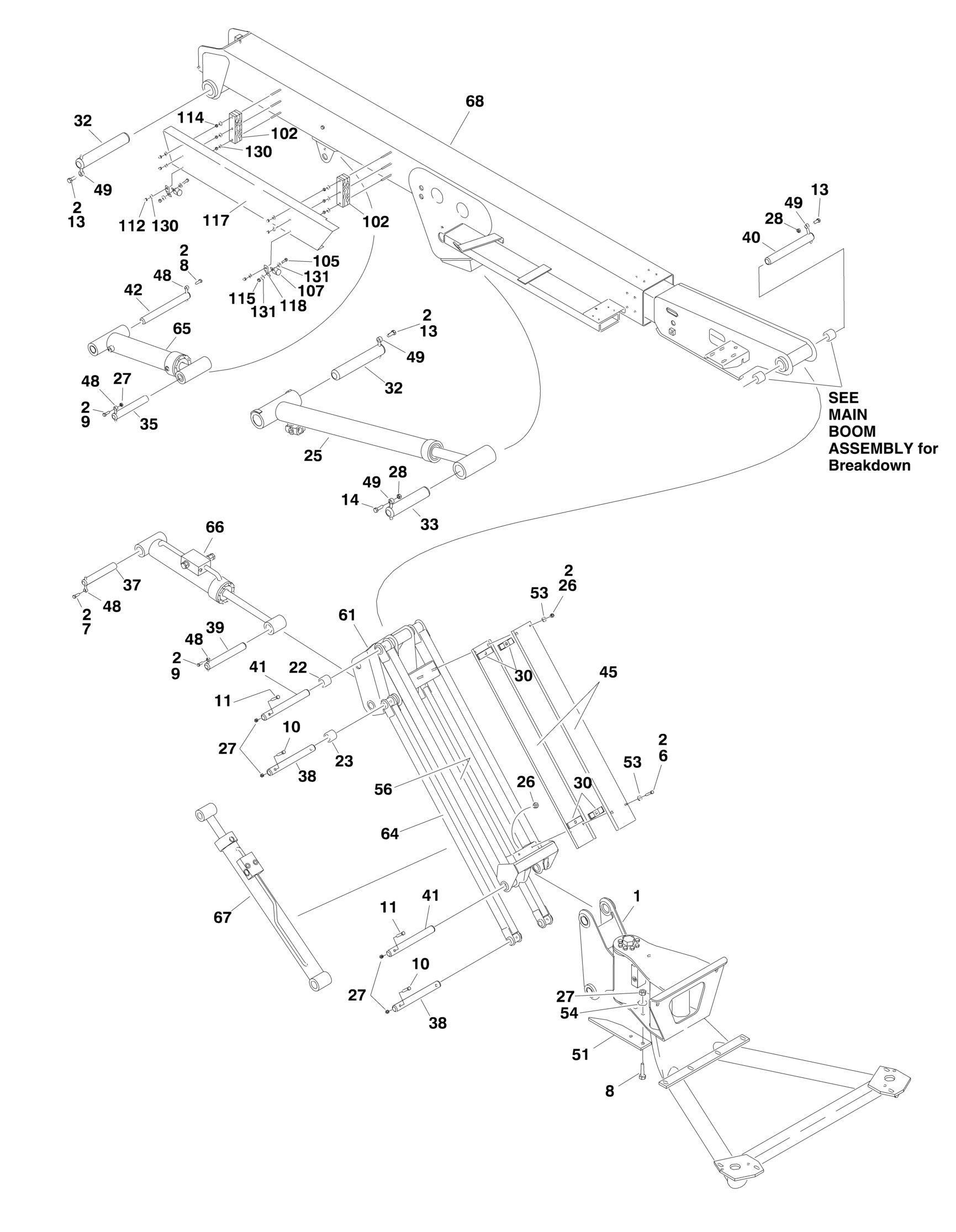

FIGURE 3-4. MAIN BOOM INSTALLATION - 450AJ SERIES II (USA BUILT MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. Ref BOOM AND CYLINDERS INSTALLATION 1001143922 Ref Boom and Cylinders Installation 450AJ Series II without Arctic
Package
1001143923 Ref Boom and Cylinders Installation 450AJ Series II with Arctic
Package
1 Ref Rotator Assembly Options (See ROTATOR ASSEMBLIES for Breakdown): 1 0060050 NLA Without Arctic Package (Note: Use p/n 0030096) (SN
0300160835 through 0300201799)
1 0060096 1 Without Arctic Package (SN 0300201800 through
0300201990)
1 0060096 1 With Arctic Package 2 0100011 AR Compound, Locking 6 0641518 2 Bolt 516in-18NC x 2-1/4in 7 0641607 1 Bolt 3/8in-16NC x 7/8in 8 0641608 3 Bolt 3/8in-16NC x 1in 9 0641610 2 Bolt 3/8in-16NC x 1-1/4in 10 0641616 4 Bolt 3/8in-16NC x 2in 11 0641618 2 Bolt 3/8in-16NC x 2-1/4in 13 0641810 3 Bolt 1/2in-13NC x 1-1/4in 14 0641812 1 Bolt 1/2in-13NC x 1-1/2in 22 0961951 2 Bushing 23 0962292 2 Bushing 25 1684154 1 Main Lift Cylinder Assembly (See CYLINDER SECTION for Breakdown) 26 3311501 4 Locknut 5/16in-18NC 27 3311605 9 Locknut 3/8in-16NC 28 3311805 2 Locknut 1/2in-13NC 30 3340860 4 Pad, Rubber 32 3422177 2 Pin 33 3422178 1 Pin 35 3422582 1 Pin 37 3422669 1 Pin 38 3422791 2 Pin 39 3422792 1 Pin 40 3422793 1 Pin 41 3422794 2 Pin 42 3422806 1 Pin 45 3572551 2 Channel, Hose Carrier 48 3841143 4 Keeper, Pin 49 3841203 4 Keeper, Pin 51 4220244 1 Stop 53 4751500 6 Flatwasher 5/16in Regular 54 4751600 2 Flatwasher 3/8in Regular 56 4846278 1 Link, Jib (Upper) 61 4846356 1 Pivot, Jib 63 Ref Cable, Electrical 18/2 Options (Not Shown): 63 4922770 1 Without Arctic Package 63 4923469 1 With Arctic Package
REV
B
B
ITEM PART NUMBER QTY DESCRIPTION
64 1001094670 2 Link, Jib (Lower) 65 Ref Master Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 65 1001140278 1 Without Arctic Package 65 1001138817 1 With Arctic Package 66 Ref Level (Platform Slave) Cylinder Assembly (See CYLINDER SECTION for Breakdown) 66 1001140279 1 Without Arctic Package 66 1001138815 1 With Arctic Package 67 Ref Jib Lift Cylinder Assembly (See CYLINDER SECTION for Breakdown) 67 1001140282 1 Without Arctic Package 67 1001138816 1 With Arctic Package 68 1001143918 1 Main Boom Assembly (See MAIN BOOM ASSEMBLY for Breakdown) Ref BOOM CABLES AND CLAMPS INSTALLATIONS Ref Note: See Section 10 for 4000W Generator Boom Cables and
Clamps Installation.
0271122 Ref ANSI/ANSI Export /CSA Specs without SkyPower 0271206 Ref Australian/CE Specs without SkyPower 0275116 Ref Without SkyPower with Arctic Package 1001115917 Ref Without SkyPower with Communication System 0273280 Ref With SkyPower 0275786 Ref With SkyPower with Arctic Package 1001116516 Ref With SkyPower with Communication System Ref Note: For Additional Components See ELECTRICAL
SECTION
102 Ref Block, Clamp Options: 102 0561459 2 Without Arctic Package 102 1321696 2 With Arctic Package 105 0641506 2 Bolt 5/16in-18NC x 3/4in (With SkyPower Only) 107 1320202 2 Clamp (With SkyPower Only) 112 3300151 6 Nut, Acorn 1/4in-20NC 114 3311401 6 Nut 1/4in-20NC 115 3311505 2 Locknut 5/16in-18NC (With SkyPower Only) 117 3571462 1 Shield 118 3574532 2 Plate, Clamp Mounting (With SkyPower Only) 130 4751400 12 Flatwasher 1/4in Regular 131 4751500 4 Flatwasher 5/16in Regular (With SkyPower Only) 134 Ref Harness, Main Boom Options (Not Shown - See ELECTRICAL SECTION): 134 4922532 1 Without Arctic Package 134 4923459 1 With Arctic Package 135 Ref Cable, Electrical (Not Shown - See ELECTRICAL SECTION) 135 1060988 1 Without SkyPower (12/3 AC Power Cable) 135 4923481 1 With Arctic Package (12/3 AC Power Cable) 135 4922857 1 With SkyPower (8/5 AC Power Cable) 135 4922929 1 With Arctic Package with SkyPower (8/5 AC Power Cable) 135 4922929 1 With Communication System with SkyPower (8/5 AC Power Cable) 136 1001115916 AR Cable, Communication (with Communication System Only) (Not Shown)
REV
J J D A C C A
