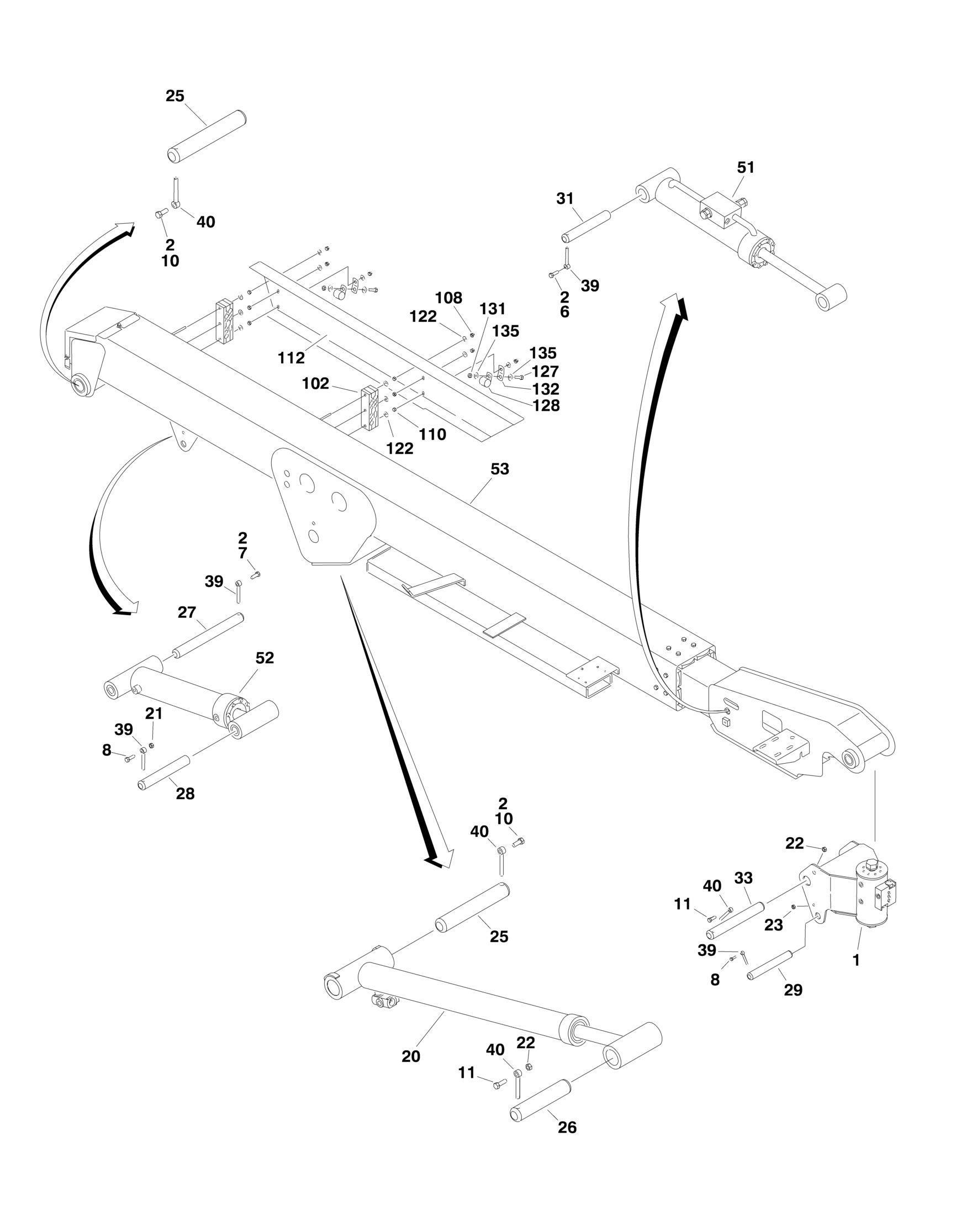

FIGURE 3-3. MAIN BOOM INSTALLATION - 450A SERIES II
ITEM PART NUMBER QTY
DESCRIPTION
Ref BOOM AND CYLINDERS INSTALLATION - 450A SERIES II 1001143921 Ref Boom and Cylinders Installation 450A Series II without Arctic
Package
1001143924 Ref Boom and Cylinders Installation 450A Series II with Arctic
Package
Ref Rotator Assembly Options (See ROTATOR ASSEMBLIES for Breakdown): 1 0060062 NLA USA Built Machines (Note: Use p/n 1001181053) (SN
0300160835 through 0300201799)
1 1001181053 1 USA Built Machines (SN 0300201800 through 0300201990) 1 0060062 NLA Romanian Built Machines (Note: Use p/n 1001181053) (SN
E300001114 through E300002464)
1 1001181053 1 Romanian Built Machines (SN E300002465 through
E300002832)
2 0100011 AR Compound, Locking 6 0641607 1 Bolt 3/8in-16NC x 7/8in 7 0641608 1 Bolt 3/8in-16NC x 1in 8 0641610 2 Bolt 3/8in-16NC x 1-1/4in 10 0641810 2 Bolt 1/2in-13NC x 1-1/4in 11 0641812 2 Bolt 1/2in-13NC x 1-1/2in 20 1684155 1 Main Lift Cylinder Assembly (See CYLINDER SECTION for Breakdown) 21 3311605 2 Locknut 3/8in-16NC 22 3311805 2 Locknut 1/2in-13NC 25 3422177 2 Pin 26 3422178 1 Pin 27 3422179 1 Pin 28 3422180 1 Pin 29 3422558 1 Pin 31 3422578 1 Pin 33 3422793 1 Pin 39 3841143 4 Keeper, Pin 40 3841203 4 Keeper, Pin 51 1001140274 1 Level (Platform Slave) Cylinder Assembly (See CYLINDER SECTION for Breakdown) 52 1001140276 1 Master Cylinder Assembly (See CYLINDER SECTION for Breakdown) 53 1001143917 1 Main Boom Assembly (See MAIN BOOM ASSEMBLY for Breakdown) Ref BOOM CABLES AND CLAMPS INSTALLATIONS Ref Note: See Section 10 for 4000W Generator Boom Cables and
Clamps Installation.
0271311 Ref ANSI/ANSI Export/CSA Specs without SkyPower 0271310 Ref Australian/CE Specs without SkyPower 0273279 Ref All Specs with SkyPower 1001097502 Ref All Specs with Arctic Package 1001097503 Ref All Specs with Arctic Package and SkyPower Ref Note: For Additional Components See ELECTRICAL
SECTION
102 Ref Block, Clamp Options: 102 0561459 2 Without Arctic Package 102 1321696 2 With Arctic Package
REV
B
B
J J C A B
ITEM PART NUMBER QTY DESCRIPTION
108 3300151 6 Nut, Acorn 1/4in-20NC 110 3311401 6 Nut 1/4in-20NC 112 3570535 1 Shield 122 4751400 12 Flatwasher 1/4in Regular 124 Ref Harness, Main Boom Options (Not Shown - See ELECTRICAL SECTION): 124 4922531 1 Without Arctic Package 124 1001097504 1 With Arctic Package 125 Ref Cable, Electrical (Not Shown - See ELECTRICAL SECTION) 125 Ref Machines without Arctic Package or SkyPower (12/3 AC Power Cable): 125 1060988 1 ANSI/ANSI Export/CSA Specs 125 1060990 1 Australian/CE Specs 125 Ref Machines with Arctic Package or SkyPower: 125 4922857 1 With SkyPower Only (8/5 AC Power Cable) 125 4923461 1 With Arctic Package Only (12/3 AC Power Cable) 125 4922857 1 With Both Arctic Package and Sky Power (8/5 AC Power Cable) 127 0641506 2 Bolt 5/16in-18NC x 3/4in (With SkyPower Only) 128 1320202 2 Clamp (With SkyPower Only) 131 3311505 2 Locknut 5/16in-18NC (With SkyPower Only) 132 3574532 2 Plate, Clamp Mounting (With SkyPower Only) 135 4751500 4 Flatwasher 5/16in Regular (With SkyPower Only)
