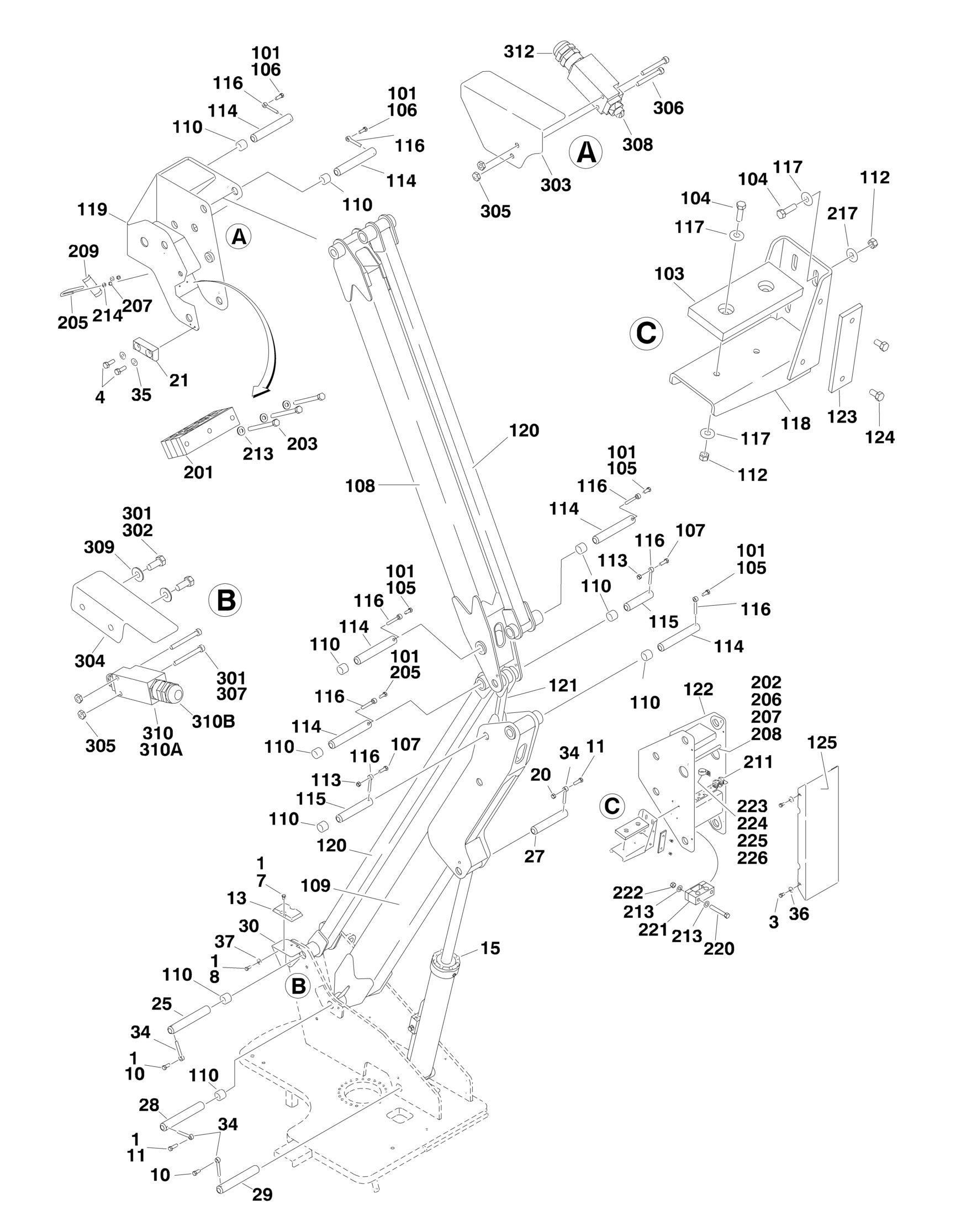

FIGURE 3-2. TOWER/MID BOOMS AND CYLINDERS INSTALLATION (ROMANIAN BUILT MACHINES
ITEM PART NUMBER QTY DESCRIPTION REV
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. Ref TOWER BOOMS AND CYLINDERS INSTALLATION 0272664 Ref Tower Booms and Cylinders Installation 450AJ Series II
Booms and Cylinders Installation
1001098640 Ref Tower Booms and Cylinders Installation 450AJ Series II Boom
Assembly
0275438 Ref Tower Booms and Cylinders Installation 450AJ Series II with
SkyPower
1001107354 Ref Tower Booms and Cylinders Installation 450AJ Series II Boom
Assembly with SkyPower
H
F
C
E
1 0100011 AR Compound, Locking 3 0641505 4 Bolt 5/16in-18NC x 5/8in 4 0641507 2 Bolt 5/16in-18NC x 7/8in 7 0641806 2 Bolt 1/2in-13NC x 3/4in 8 0641810 3 Bolt 1/2in-13NC x 1-1/4in 10 0642012 2 Bolt 5/8in-11NC x 1-1/2in 11 0642016 2 Bolt 5/8in-11NC x 2in 13 0940048 1 Bumper 15 1684239 1 Lower Lift Cylinder Assembly (See CYLINDER SECTION for Breakdown) 20 3312005 1 Locknut 5/8in-11NC 21 3340914 1 Pad 25 3422664 1 Pin 27 3422912 1 Pin 28 3422913 1 Pin 29 3422664 1 Pin 30 3572691 1 Bracket, Boom Rest 34 3841258 4 Keeper, Pin 35 4711500 2 Flatwasher 5/16in Thin 36 4751500 4 Flatwasher 5/16in Regular 37 4751800 3 Flatwasher 1/2in Regular Ref TOWER BOOM ASSEMBLY 0272340 Ref Tower Boom Assembly 450AJ Series II J 0801592 Ref Tower Boom Assembly 450AJ Series II with SkyPower H 101 0100011 AR Compound, Locking 103 0561076 1 Block, Boom Rest 104 0641610 6 Bolt 3/8in-16NC x 1-1/4in 105 0642012 4 Bolt 5/8in-11NC x 1-1/2in 106 0642014 2 Bolt 5/8in-11NC x 1-3/4in 107 0642016 2 Bolt 5/8in-11NC x 2in 108 0801356 1 Boom, Mid 109 0801357 1 Boom, Tower 110 0961950 20 Bearing, Garmax 112 3311605 6 Locknut 3/8in-16NC 113 3312005 2 Locknut 5/8in-11NC 114 3422568 6 Pin 115 3422912 2 Pin 116 3841258 8 Keeper, Pin 117 4751600 14 Flatwasher 3/8in Regular 118 4846905 1 Rest, Boom
ITEM PART NUMBER QTY DESCRIPTION REV
119 4846697 1 Upright (Upper) 120 3010140 2 Link 121 4846701 1 Link, Timing 122 1001145890 1 Upright (Lower) 123 3340608 1 Pad, Wear 124 0641605 2 Bolt, 3/8in-16NC x 3/8in 125 3574066 1 Cover Ref BOOM CABLES AND CLAMPS INSTALLATIONS 0272594 Ref Boom Cables and Clamps Installations 450AJ Series II D 0275436 Ref Boom Cables and Clamps Installations 450AJ Series II with
SkyPower
D Ref Note: For Additional Components See ELECTRICAL
SECTION
201 0561460 1 Block, Clamp 202 0630498 1 Bolt 203 0641528 3 Bolt 5/16in-18NC x 3-1/2in 204 Ref Cable, Electrical Options (Not Shown - See ELECTRICAL SECTION): 204 1060991 1 Without SkyPower (12/3 AC Power Cable) 204 4922857 1 With SkyPower 205 1320300 1 Clamp, Hose 206 3300420 1 Nut, Acorn 1/4in-20NC 207 3311605 3 Locknut 3/8in-16NC 208 3860096 1 Roller 209 4061032 2 Shield, Cable 210 4240018 7 Tie-Strap (Not Shown) 211 Ref Connector, Strain Relief 211 4460425 2 Without SkyPower 211 1321692 1 With SkyPower 213 4711500 AR Flatwasher 5/16in Thin 214 4711600 2 Flatwasher 3/8in Thin 215 4922530 1 Harness, Tower Boom (Not Shown - See ELECTRICAL SECTION) 216 4922770 1 Cable, Electrical (18/2 Limit Switch) (Not Shown - See ELECTRICAL SECTION) 220 0641524 AR Bolt 5/16in-18NC x 3in 221 1321738 1 Clamp, Block (Machines with SkyPower Only) 222 3311505 AR Nut 5/16in-18NC 223 0641408 1 Bolt 1/4in-20NC x 1in 224 1320061 1 Clamp, Hose (Machines with SkyPower Only) 225 3311405 1 Locknut 1/4in-20NC 226 4751400 2 Flatwasher 1/4in Regular 227 1320177 1 Clamp, Hose (Not Shown - Used on Airline) (Machines with SkyPower Only) 228 2220829 1 Fitting, Plug (Not Shown - Used on Airline) (Machines with SkyPower Only) 229 2221037 1 Fitting, Barbed (Not Shown - Used on Airline) (Machines with SkyPower Only) 230 2720646 1 Hose, Airline (Not Shown) (Machines with SkyPower Only) 0272497 Ref LIMIT SWITCHES INSTALLATION E
301 0100011 AR Compound, Locking 302 0641406 2 Capscrew, 1/4in-20NC x 3/4in 303 1001096617 1 Cover, Switch
ITEM PART NUMBER QTY DESCRIPTION
304 1671086 1 Cover, Switch 305 3311005 4 Locknut #10-24NC 306 3931024 2 Capscrew, Socket Head #10-24NC x 1-1/2in 307 3931030 2 Capscrew, Socket Head #10-24NC x 1-7/8in 308 4360548 1 Switch, Limit 309 4751400 2 Flatwasher, 1/4in Regular 310 4922714 1 Cable/Limit Switch Harness Assembly 310 1060902 8.5 ft /2.6m Cable, Electrical 18/2 (Not Shown - See ELECTRICAL SECTION) 310 4460226 2 Socket, Contact (Not Shown) 310A 4360548 1 Switch, Limit 310B 4460968 1 Connector, Strain Relief 311 4060803 8.5 in /217mm Shield, Flex Trim (Not Shown) 312 4460968 1 Connector, Strain Relief
