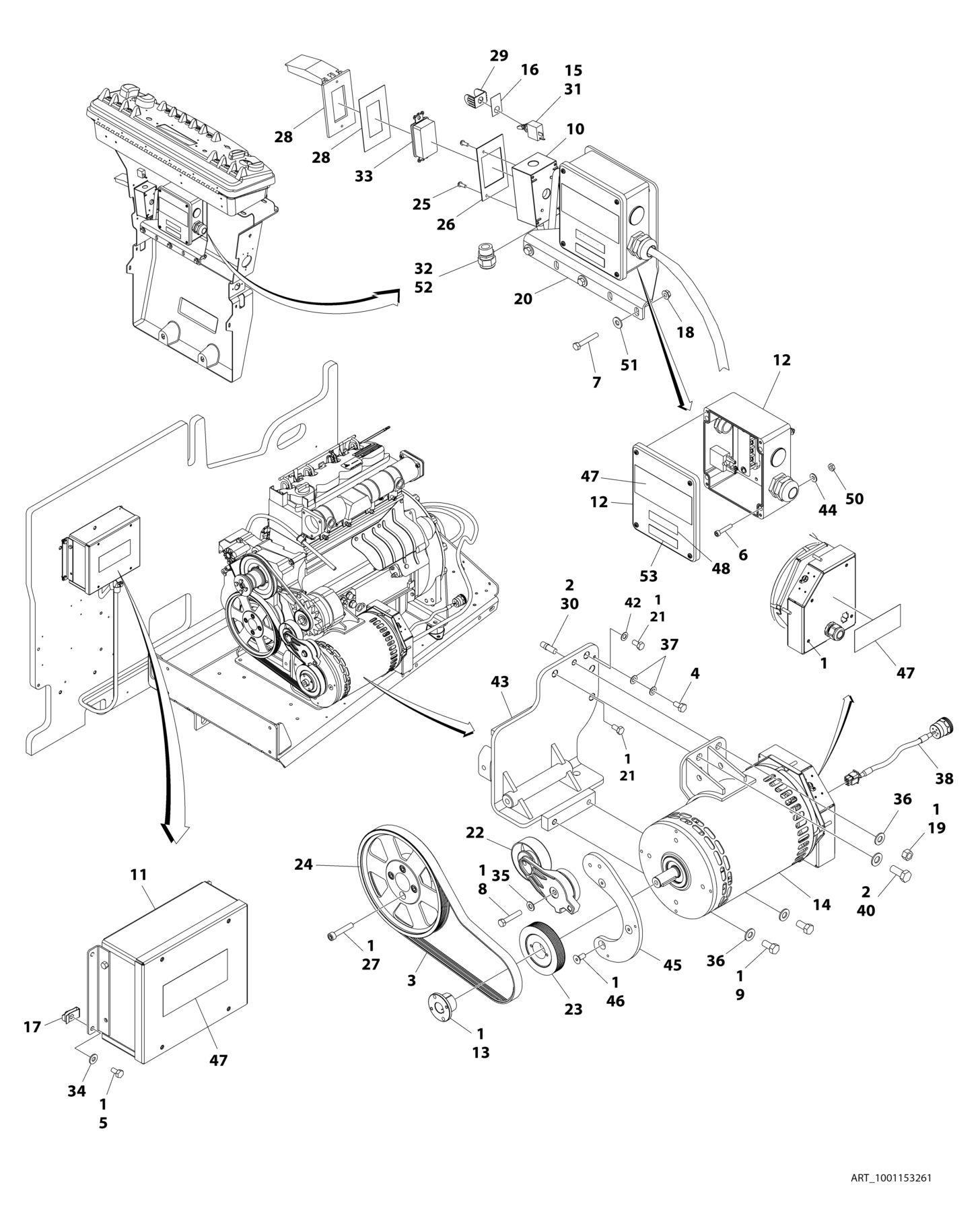

FIGURE 2-26. 4000W GENERATOR INSTALLATION - DEUTZ D2011 ENGINES
ITEM PART NUMBER QTY DESCRIPTION REV
Ref 4000W GENERATOR INSTALLATION - DEUTZ D2011 ENGINES 1001153261 Ref 4000W/60Hz Generator Installation (USA Built Machines) B 1001153262 Ref 4000W/50Hz Generator Installation (USA Built Machines) E 1001153262 Ref 4000W/50Hz Generator Installation (Romanian Built Machines) E 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0480128 1 Belt, Generator (60Hz) 3 0480129 1 Belt, Generator (50Hz) 4 0641404 1 Bolt 1/4 x 1/2 5 0641407 4 Bolt 1/4 x 7/8 6 3931016 4 Capscrew #10 x 1 (60Hz) 7 0641516 3 Bolt 5/16 x 2 (60Hz) 8 0641616 1 Bolt 3/8 x 2 9 0641808 2 Bolt 1/2 x 1 10 0860038 1 Box, Switch - Weatherhead (60Hz) 11 1001138566 1 Control Box Assembly 11 70006552 1 Capacitor 11 70006553 1 Relay 12 1001152457 1 Junction Box Assembly (60Hz) 12 3300396 1 Cover, Breaker 12 4360070 1 Breaker, Circuit - 15Amp 12 4460425 1 Connector, Strain Relief (LH Side) 12 4460426 1 Connector, Strain Relief (RH Side) 13 0962520 1 Bushing, Split 14 1001129858 1 Generator Assembly (60Hz) 14 1001138565 1 Generator Assembly (50Hz) 14 70003709 1 Ring, Retaining (External) 14 70003708 1 Ring, Retaining (Internal) 14 70001966 1 Bearing 14 70004092 1 Endbell (Shaft End) 14 70004171 1 Key 14 70004676 1 Rotor 14 70004684 1 Stator (60Hz) 14 70004677 1 Stator (50Hz) 14 70004678 1 Endbell (Rear) 14 70004679 1 Cover, Endbell (Rear) 14 70004680 1 Enclosure, Wiring 14 70004685 1 Cover, Enclosure (60Hz) 14 70004681 1 Cover, Enclosure (50Hz) 14 70004682 1 Switch, Reset (Located on Enclosure Cover) 14 70004098 1 Connector, Strain Relief (60Hz) (Located on Enclosure Cover) 14 70004683 1 Connector, Strain Relief (50Hz) (Located on Enclosure Cover) 15 2820031 0.33 ft/ 0.1m Heat Shrink 16 3251102 1 Nameplate - Generator 17 3300454 4 Nut 1/4 18 3311508 3 Nut 5/16 (60Hz) 19 3311801 1 Nut 1/2 20 0902888 1 Bracket (60Hz) 21 0711414 3 Bolt M14 x 30
ITEM PART NUMBER QTY
DESCRIPTION
22 3580317 1 Tensioner, Belt with Pulley 23 3580318 1 Pulley, Generator (60Hz) 23 3580319 1 Pulley, Generator (50Hz) 24 3580320 1 Pulley, Engine 25 3910606 4 Screw #6 x 3/8 (60Hz) 26 3960422 1 Gasket (60Hz) 27 4032015 4 Capscrew M10 x 55 28 1001110873 1 Cover, Receptacle (60Hz) 29 4060802 1 Guard, Switch 30 4300157 1 Stud 31 4360336 1 Switch, Toggle 32 4460071 1 Connector (60Hz) 33 4460346 1 Receptacle (60Hz) 34 4711400 4 Washer 1/4 35 4711600 1 Washer 3/8 36 4711800 3 Washer 1/2 37 4791400 2 Washer 1/4 38 1001152532 1 Generator Harness (See ELECTRICAL SECTION for Breakdown) 39 1001132055 1 Diagram, Wiring (Not Shown) (See ELECTRICAL SECTION for Breakdown) 40 0771415 1 Bolt M14 x 35 41 3311805 1 Nut 1/2 (Not Shown - Attaches Item 43 to Engine Tray) 42 4812200 1 Washer M14 43 4846567 1 Bracket, Motor Mounting 44 4751000 4 Washer #10 (60Hz) 45 1001139357 1 Mount, Tensioner 46 0741607 3 Screw 3/8 x 7/8 47 1705387 3 Decal - Hazardous Voltage (60Hz) 47 1705489 2 Decal - Hazardous Voltage (50Hz) 48 3251243 1 Decal - 120V-60Hz 49 0641820 1 Bolt 1/2 x 2-1/2 (Not Shown - Attaches Item 43 to Engine Tray) 50 3311005 4 Nut #10 (60Hz) 51 4751500 3 Washer 5/16 (60Hz) 52 0100020 AR Sealant #567 53 1705374 1 Decal - 240V-60Hz 54 1001096070 1 Breaker Box Kit (Not Shown) (50Hz) (See ELECTRICAL SECTION for Breakdown) 55 1001162445 1 Bracket (Attaches Item 54) (Not Shown) (50Hz)
