FIGURE 2-24. 2500W GENERATOR INSTALLATION - DEUTZ TD2.9L4 MACHINES (ANSI, CSA AND JAPANESE SPECS) OPTIONAL FIGURE 2-25. 2500W GENERATOR INSTALLATION - GM MACHINES (ANSI, ANSI EXPORT AND CSA SPECS) (OPTIONAL) ...................................................................................................................................................................................................... 152
ITEM PART NUMBER QTY
DESCRIPTION

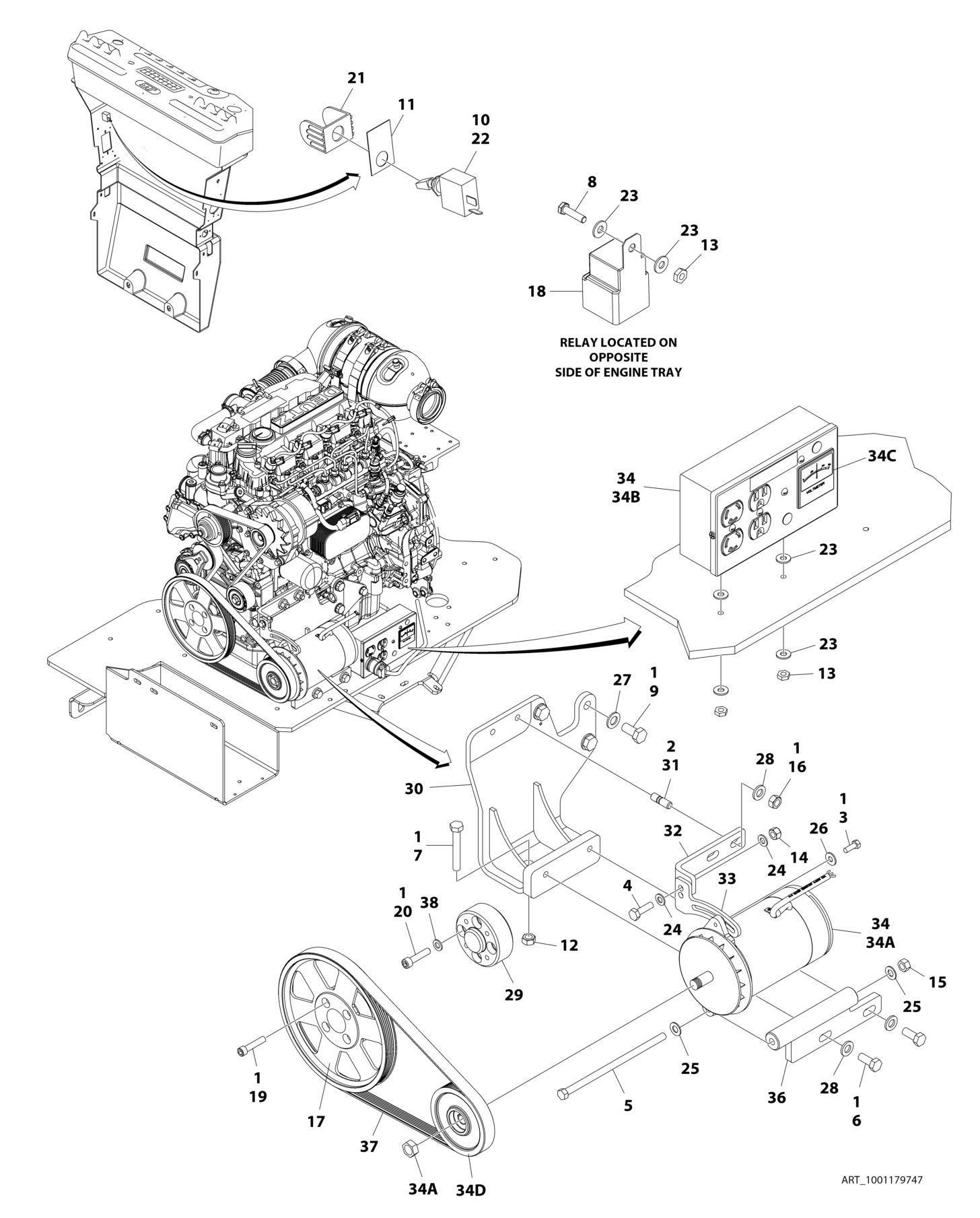

1001179747 Ref 2500W GENERATOR INSTALLATION - DEUTZ TD2.9L4
MACHINES (ANSI, CSA AND JAPANESE SPECS) (OPTIONAL)
1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0641508 1 Bolt 5/16 x 1 4 0641610 1 Bolt 3/8 x 1-1/4 5 0641772 1 Bolt 7/16 x 9 6 0641812 2 Bolt 1/2 x 1-1/2 7 0681822 1 Bolt 1/2 x 2-3/4 Grade 8 8 0721006 1 Screw #10 x 3/4 9 0771414 3 Bolt M14 x 30 10 2820031 AR Heat Shrink 11 3251102 1 Nameplate - Generator On 12 3311801 1 Nut 1/2 13 3311005 3 Nut #10 14 3311605 1 Nut 3/8 15 3311705 1 Nut 7/16 16 3311801 2 Nut 1/2 17 3580320 1 Pulley 18 3740080 1 Relay 19 3931628 4 Capscrew 3/8 x 1-3/4 20 4032014 4 Bolt M10 x 50 21 4060802 1 Guard, Switch 22 4360336 1 Switch, Toggle 23 4711000 6 Washer #10 24 4711600 2 Washer 3/8 25 4711700 2 Washer 7/16 26 4751500 1 Washer 5/16 27 4812200 3 Washer M14 28 4891800 4 Washer 1/2 29 1001135679 1 Adapter 30 1001146670 1 Bracket, Motor Mounting 31 1001163599 2 Stud 32 1001179836 1 Bracket 33 1001179837 1 Arm, Adjustment 34 1001180001 1 Generator and Control Box Assembly 34A 7012558 1 Generator Only - 110V/60Hz 34A Ref Note: Replacement Generators come standard with p/n
3580134 pulley. This pulley may not be correct for all applications. Refer to pulley options below.
34A 7026199 1 Armature with Slip Rings 34A 7012513 4 Cap, Brush Holder 34A 7020108 4 Brush 34A 7020109 4 Holder, Brush 34A 7012514 1 Fan 34A 7020110 1 Bell, Front 34A 7020111 1 Bell, Rear 34A 7020190 2 Bearing 34B 7019680 1 Box, Control - 110V/60Hz
REV
B
ITEM PART NUMBER QTY DESCRIPTION
34B Ref Receptacle Options: 34B 4460190 1 Receptacle, Standard (110V Only) 34B 4460027 1 Receptacle, Twistlock (110V Only) 34B 4360542 1 Breaker, Circuit 34B 3520028 1 Plug, Hole 34C 2420203 1 Voltmeter 34D 3580276 1 Pulley 34D 7027887 1 Key, Woodruff 35 1001180050 1 Diagram, Wiring (Not Shown) (See ELECTRICAL SECTION for Breakdown) 36 1001181243 1 Mount, Generator 37 1001148138 1 V-Belt 38 4812000 4 Washer M10
REV
ITEM PART NUMBER QTY
DESCRIPTION

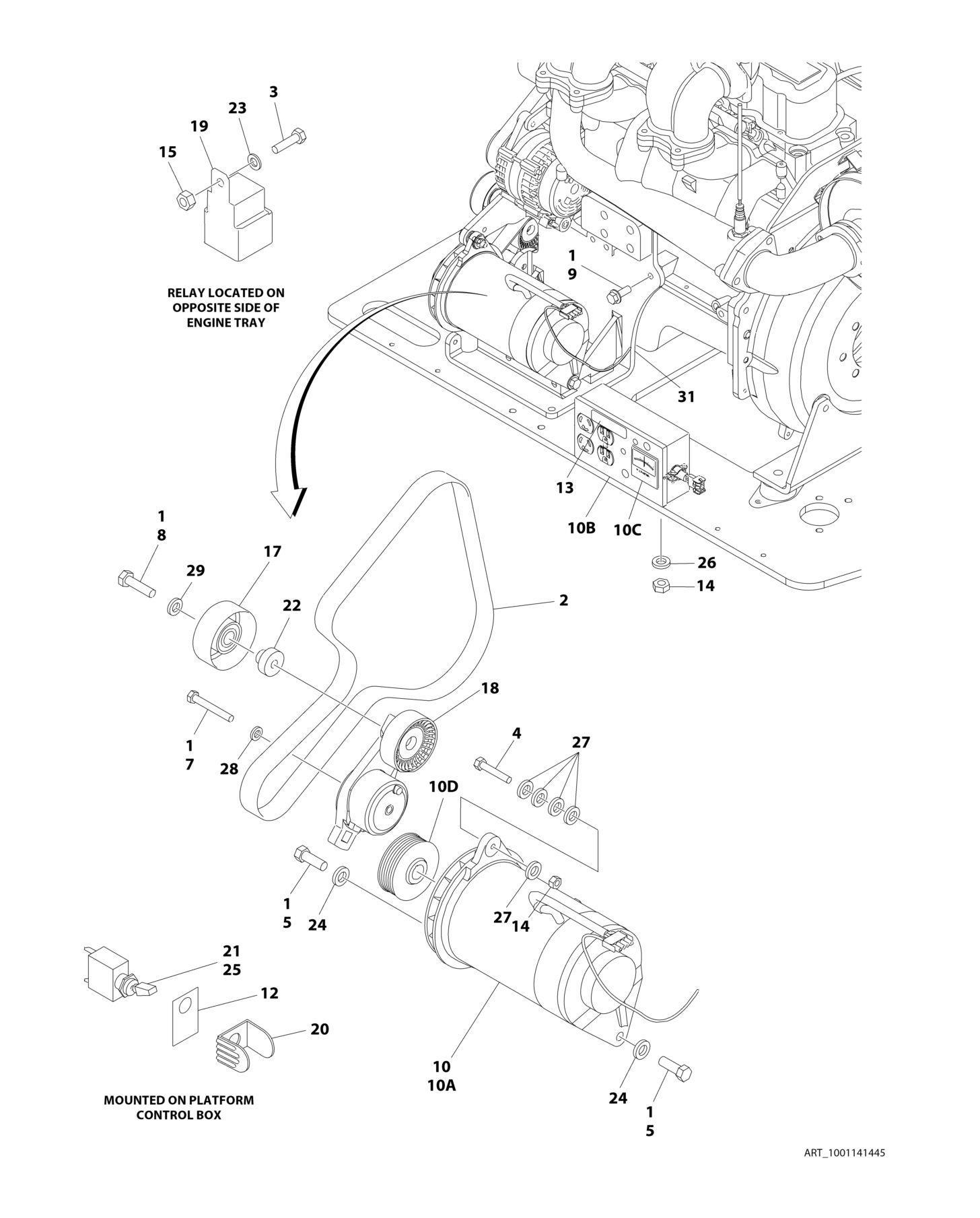

1001141445 Ref GENERATOR INSTALLATION - GM MACHINES (ANSI, ANSI
EXPORT AND CSA SPECS) (OPTIONAL)
1 0100011 AR Compound, Locking 2 0480142 1 V-Belt 3 0641405 1 Bolt 1/4 x 5/8 4 0641510 1 Bolt 5/16 x 1-1/4 5 0641710 2 Bolt 7/16 x 1-1/4 6 0641832 1 Bolt 1/2 x 4 (Not Shown - Attaches Item 31 to Engine Tray) 7 0700820 1 Bolt M8 x 60 8 0701016 1 Bolt M10 x 340 9 0811608 4 Screw 3/8 x 1 10 2460051 1 110V/60Hz Generator and Control Box Assembly 10A 7012558 1 110V/60Hz Replacement Generator Ref Note: All Replacement Generators come standard with P/N
3580134 Pulley. This Pulley may not be correct for all applications. Refer to Pulley options below.
10A 7026199 1 Armature with Slip Rings 10A 7020109 4 Holder, Brush 10A 7020108 4 Brush 10A 7012513 4 Cap, Brush Holder 10A 7012514 1 Fan 10A 7020190 2 Bearing 10A 7020110 1 End Bell, Front 10A 7020111 1 End Bell, Rear 10A 7020193 1 Cord, Power 10B 7019680 1 110V/60Hz Control Box 10B 4360542 1 Circuit Breaker 10B 4460190 1 Receptacle, Double (110V) 10B 4460027 1 Receptacle, Double Twist Lock (110V) 10B 3520028 1 Plug, Hole 10C 2420203 1 Voltmeter 10D 3580324 1 Pulley 10D 7027887 1 Key, Woodruff 11 2820031 AR Heat Shrink (Not Shown - Located at Platform) 12 3251102 1 Nameplate - Generator 13 3251243 1 Decal - 120V 14 3311005 2 Nut #10 15 3311405 1 Nut 1/4 16 3311805 1 Nut 1/2 (Not Shown - Attaches Item 31 to Engine Tray) 17 3580312 1 Pulley, Idler 18 3580348 1 Tensioner, Belt 19 3740080 1 Relay, Bosch 20 4060802 1 Guard, Switch 21 4360336 1 Switch, Toggle 22 4568735 1 Spacer, Tube (Idler Pulley Grooved) 23 4711400 1 Washer 1/4 24 4711700 2 Washer 7/16 25 4740397 1 Spacer 26 4751000 2 Washer #10
REV
A
ITEM PART NUMBER QTY DESCRIPTION
27 4751500 4 Washer 5/16 28 4811900 1 Washer M8 29 4891600 1 Washer 3/8 30 4933350 1 Diagram, Wiring (Not Shown) (See ELECTRICAL SECTION for Breakdown) 31 1001141181 1 Bracket, Motor Mounting
