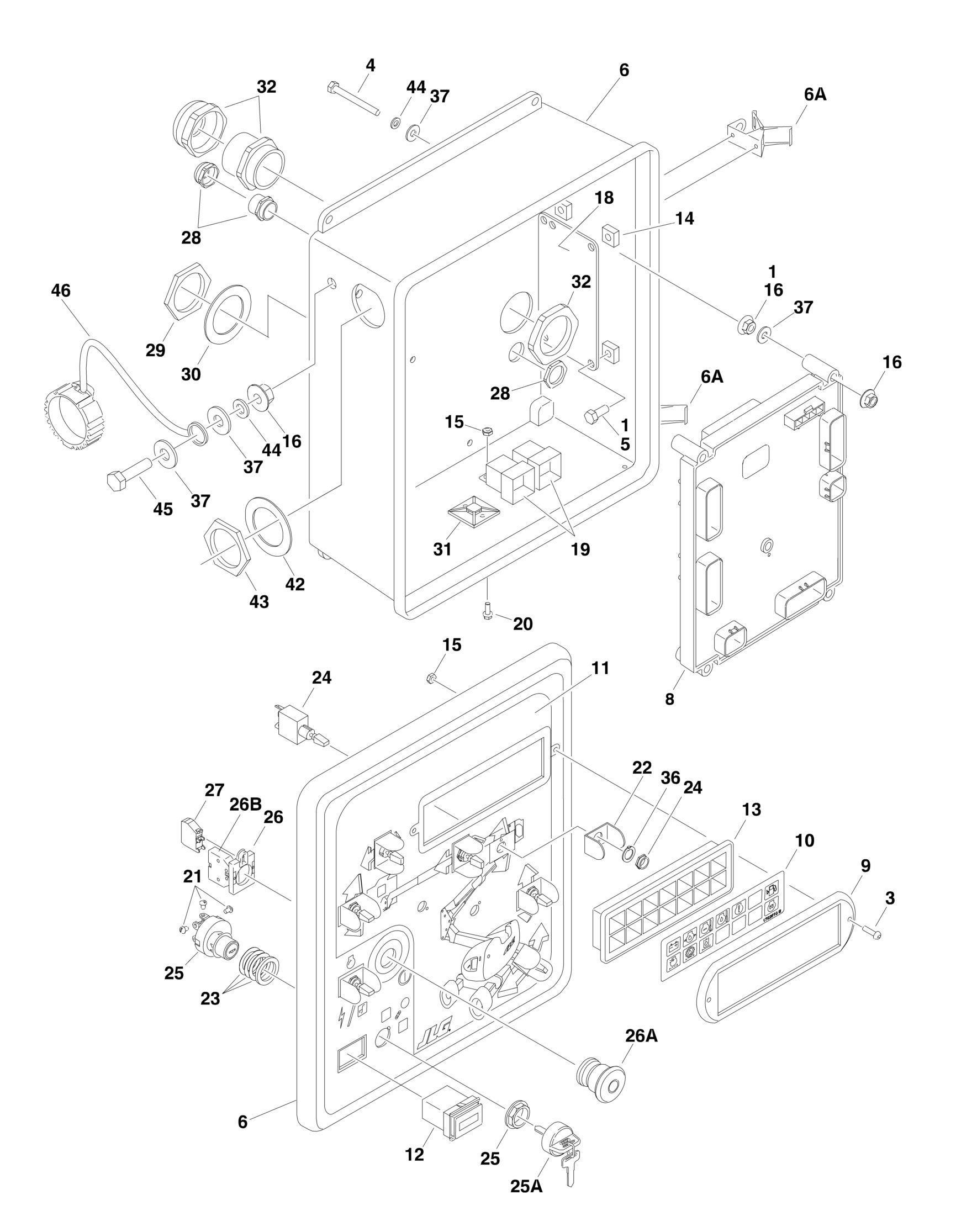

FIGURE 2-18. GROUND CONTROL BOX ASSEMBLY (FIBERGLASS BOX
ITEM PART NUMBER QTY DESCRIPTION REV
Ref GROUND CONTROL BOX ASSEMBLIES (FIBERGLASS BOX) Ref Ground Control Box Assemblies 450A Series II Ref ANSI AND ANSI EXPORT SPECS 1001138763 Ref Caterpillar Engine Machines 1001138766 Ref Deutz D2011Engine Machines 1001147000 Ref Deutz TD2.9L4 Engine Machines 1001138702 Ref GM Engine Machines
See Note Ref AUSTRALIAN SPECS (Note: Not Available) Ref CE SPECS 1001138665 Ref Caterpillar Engine Machines 1001138765 Ref Deutz Engine Machines B C C C
A C
Ref Ground Control Box Assemblies 450AJ Series II Ref ANSI AND ANSI EXPORT SPECS 1001138762 Ref Caterpillar Engine Machines B 1001138764 Ref Deutz D2011 Engine Machines (USA Built Machines) C 1001138676 Ref Deutz D2011 Engine Machines (Romanian Built Machines) C 1001147002 Ref Deutz TD2.9L4 Engine Machines C 1001138767 Ref GM Engine Machines C Ref AUSTRALIAN SPECS 1001138762 Ref Caterpillar Engine Machines B 1001138764 Ref Deutz Engine Machines C Ref CE SPECS 1001138761 Ref Caterpillar Engine Machines B 1001138676 Ref Deutz Engine Machines C 1 0100011 AR Compound, Locking 2 0100048 AR Grease, Dielectric 3 0630518 2 Screw, Button Head 4 0630548 5 Bolt 5 0641506 4 Bolt 5/16in-18NC x 3/4in 6 1001105784 1 Box, Fiberglass 6A 7020246 2 Latch 8 1001103667 1 Module, Control (Note: Re-calibration Required when Replaced) 9 1670829 1 Bezel 10 1706712 1 Decal - Ground Control Display 11 Ref Decal - Faceplate 11 1001102597 1 Decal - Faceplate 450A Series II 11 1001102598 1 Decal - Faceplate 450AJ Series II 12 2420172 1 Gauge, Hourmeter 13 2760105 1 Housing, Display Light 14 3300205 4 Nut, Retainer 15 3300408 4 Locknut, Plastic Insert 16 77143013 11 Locknut 1/4in-20NC 18 3539219 1 Plate, Reinforcement 19 3740049 2 Relay - SPDT 20 3900268 2 Screw #10-24NC x 1/2in 21 3910804 6 Screw #8-32NC x 1/4in 22 4060906 1 Shield, Toggle Switch 23 Ref Shim Options: 23 4070987 1 Shim (.015in)
ITEM PART NUMBER QTY DESCRIPTION
23 1001151393 1 Shim(.063in) 24 4360328 AR Switch, Toggle 25 Ref Switch, Key Options: 25 4360469 1 ANSI/ANSI Export/Australian/CSA Specs 25 4360470 1 CE Specs 25A 2860030 1 Key 26 4360475 1 Switch, Emergency Stop 26A 7020175 1 Cap, Mushroom Head 26B 7020176 1 Block, Contact 27 4360476 1 Switch, Contact Block 28 4460426 1 Connector, Strain Relief 29 4460470 1 Nut, Terminal 30 4460471 1 Locknut, Terminal 31 4460488 10 Base, Terminal Mounting 32 4460526 1 Connector, Strain Relief 36 4740444 AR Washer, Special 37 4751400 12 Flatwasher 1/4in Regular 39 1001138588 1 Valve Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 40 Ref Ground Control Box Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 40 1001105636 1 Caterpillar Engine Machines 40 1001105636 1 Deutz D2011 Engine Machines 40 1001147005 1 Deutz TD2.9L4 Engine Machines 40 1001105636 1 GM Engine Machines 41 Ref Engine Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 41 1001139084 1 Caterpillar Engine Machines 41 1001139085 1 Deutz D2011 Engine Machines 41 1001147004 1 Deutz TD2.9L4 Engine Machines 41 1001139086 1 GM Engine Machines 42 4460496 1 Lockwasher 43 4460497 1 Nut 44 4761400 6 Lockwasher 1/4in 45 0641407 1 Bolt 1/4in-20NC x 7/8in 46 1001106736 1 Cap, Dust
