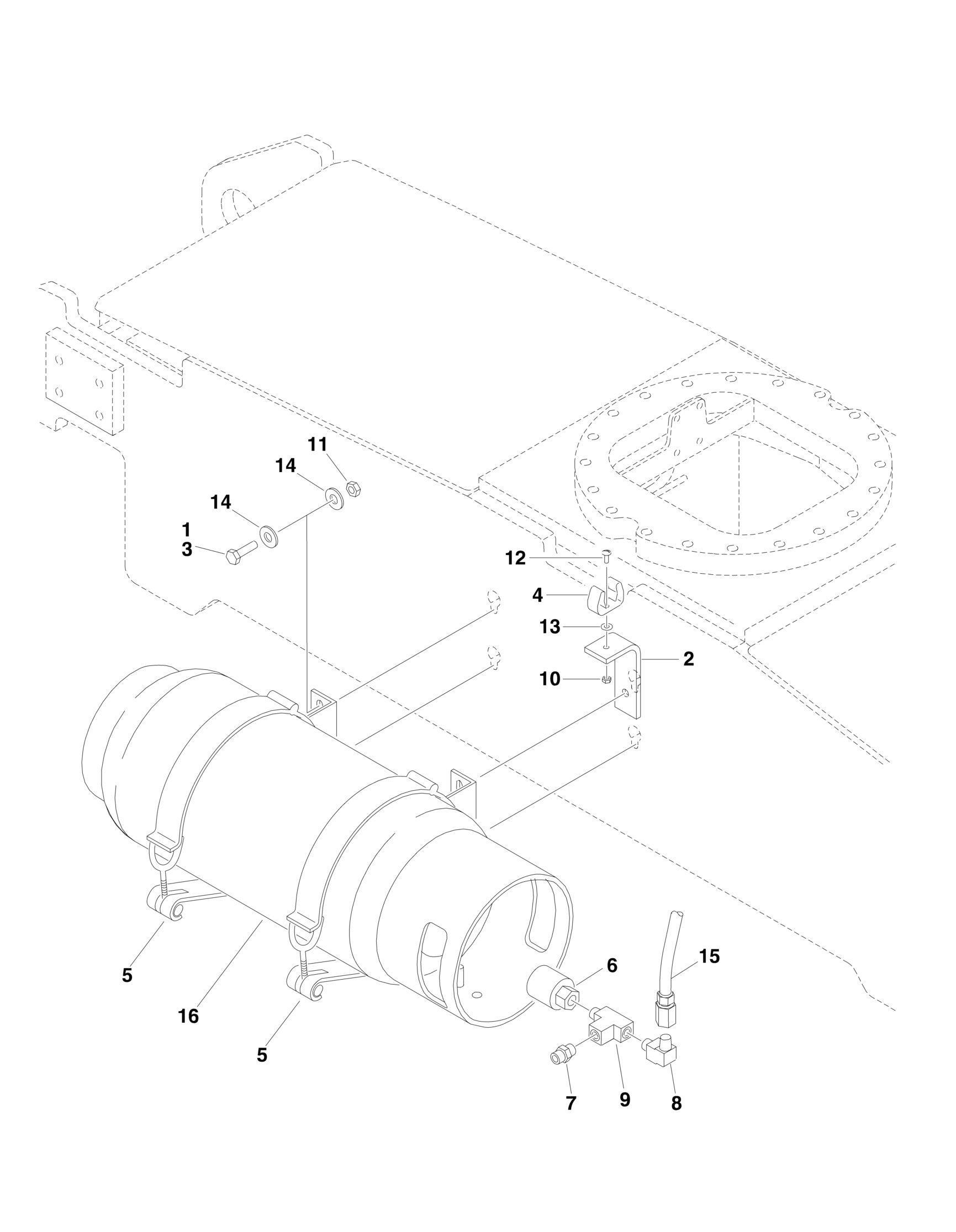

FIGURE 2-17. LP TANK INSTALLATION (GM ENGINE MACHINES ONLY
ITEM PART NUMBER QTY
DESCRIPTION
1001139888 Ref LP TANK AND BRACKETS INSTALLATIONS 1 0100011 AR Compound, Locking 2 0181949 AR Angle, Support 3 0641615 4 Bolt 3/8in-16NC x 1-7/8in 4 1320218 1 Clamp, Spring 5 1320220 1 Clamp Kit 6 2180387 1 Fitting, LP 7 2180389 1 Fitting 8 2180504 1 Fitting, Elbow 9 2220290 1 Fitting, Tee 10 3310805 1 Locknut #8-32NC 11 3311601 4 Nut 3/8in-16NC 12 3910808 1 Screw #8-32NC x 1in 13 4750800 1 Flatwasher #8 Regular 14 4891600 8 Flatwasher 3/8in Hardened 15 2720149 1 Hose 16 Ref Tank, LPG Options: 16 4400275 1 Aluminum Tank 16 4400420 1 Steel Tank
REV
A
