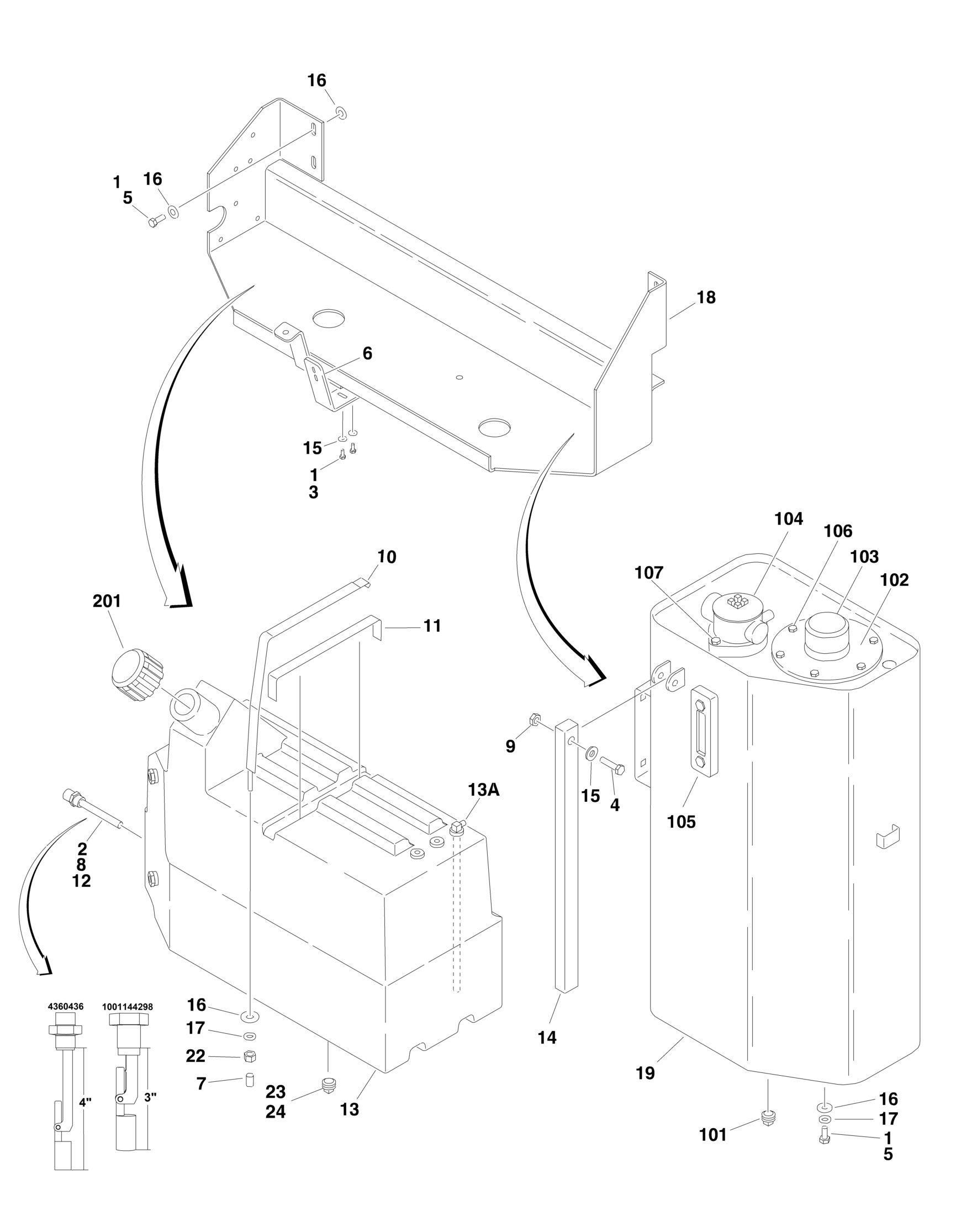

FIGURE 2-16. TANK INSTALLATIONS

FIGURE 2-16. TANK INSTALLATIONS

FIGURE 2-16. TANK INSTALLATIONS

ITEM PART NUMBER QTY DESCRIPTION REV

Ref TANK INSTALLATIONS 0272669 Ref Caterpillar and Deutz Engine USA Built Machines (SN

0300160835 through 0300161419)

G

1001144401 Ref Caterpillar and Deutz Engine USA Built Machines (SN

0300161420 through 0300201990)

G

1001144403 Ref Caterpillar and Deutz Engine Romanian Built Machines F 1001144402 Ref GM Engine Machines H 1 0100011 AR Compound, Locking 2 1001182997 AR Adhesive 3 0641405 2 Bolt 1/4in-20NC x 5/8in 4 0641416 1 Bolt 1/4in-20NC x 2in 5 Ref Bolt 3/8in-16NC x 1in 5 0641606 AR Bolt 3/8in-16NC x 3/4in 5 0641608 AR Bolt 3/8in-16NC x 1in 6 0902535 1 Bracket, Hood Latch 7 1120532 1 Cap, Protective 8 2820035 2 ft/.61m Insulate, Tubing 9 3311405 1 Locknut 1/4in-20NC 10 4240145 1 Strap, Tank Mount 11 4280295 2 ft/.61m Strip, Bumper 12 4360436 1 Switch, Fuel Level - 4in (Note: Identify the length of switch before ordering. Measure from threads to the float as shown in illustration.) 12 1001144298 1 Switch, Fuel Level - 3in (Note: Identify the length of switch before ordering. Measure from threads to the float as shown in illustration.)

13

Ref Tank, Fuel Options (Includes Standard Non-Locking Cap): 13 Ref Caterpillar and Deutz Engine Machines Options: 13 4400408 NLA Caterpillar and Deutz Engine Machines (USA Built Machines) (Use p/n 1001160569) (SN 0300160835 through

0300189441)

13 4400408 NLA Caterpillar and Deutz Engine Machines (Romanian Built Machines) (Use p/n 1001160569) (SN E300001114 through

E300002148)

13 1001160569 1 Caterpillar and Deutz Engine Machines (USA Built Machines)

(SN 0300189442 through 0300201990)

13 1001160569 1 Caterpillar and Deutz Engine Machines (Romanian Built Machines) (SN E300002149 through E300002832) 13 Ref GM Engine Machines Options: 13 1001091560 NLA GM Engine Machines (Use p/n 1001160558) (SN 0300160835

through 0300185513)

13 1001160558 1 GM Engine Machines (SN 0300185514 through 0300201990) 13A Ref Fitting and Pick-up Tube (Supply Line) Options: 7020056 1 Fitting and Pick-up Tube (Supply Line) 1001160558 Tank 70004786 1 Fitting and Pick-up Tube (Supply Line) 1001160569 Tank 14 4567627 1 Tube, Hood Prop 15 4751400 4 Flatwasher 1/4in Regular 16 4751600 10 Flatwasher 3/8in Regular 17 4761600 4 Lockwasher 3/8in 18 Ref Tray Weldment Options: 18 4846375 1 USA Built Machines 18 4846665 1 Romanian Built Machines

ITEM PART NUMBER QTY

DESCRIPTION

19 1001141821 NLA Hydraulic Tank Assembly (See Items 101-109 for Breakdown) (Use p/n 1001153619) 22 3311601 1 Nut 3/8in-16NC 23 0100020 AR Sealant 24 2200222 1 Plug Ref HYDRAULIC TANK ASSEMBLIES 1001141821 Ref Original Equipment 1001153619 Ref Service Replacement Ref Note: Original Equipment Tank may have been replaced with

Service Replacement Tank p/n 1001153619. Identify p/n stamped on tank before ordering parts.

101 7024446 1 Plug, Magnetic 102 7024439 1 Cover 103 7024444 1 Cap 103 7024445 1 Strainer 103 Ref Neck, Fill Options: 7024443 1 Neck, Fill (USA Built Machines) 70004862 1 Neck, Fill (Romanian Built Machines) 103 7024440 1 Gasket (Cover to Tank) 104 70001959 1 Filter, Return 104 70001960 1 Element, Filter 104 7023347 1 Gasket (Filter Flange to Tank) 104 7023306 Seal (Filter Cap to Filter Housing 105 Ref Gauge, Sight Options: 105 70003865 1 1001141821 Tank 105 7024441 1 1001153619 Tank 106 83304174 6 Nut 1/4in-20NC 106 83304173 6 Flatwasher 1/4in Regular 106 83304172 6 Stud 1/4in-20NC 107 83304170 2 Bolt 3/8in-16NC x 1-1/4in 107 4751600 2 Flatwasher 3/8in Regular 201 Ref FUEL CAP OPTIONS 201 70004414 Ref Caterpillar and Deutz Engine Machines (Standard Black) 201 1120487 Ref Caterpillar and Deutz Engine Machines (Optional Blue) 201 70001103 Ref GM Engine Machines

REV

C C
