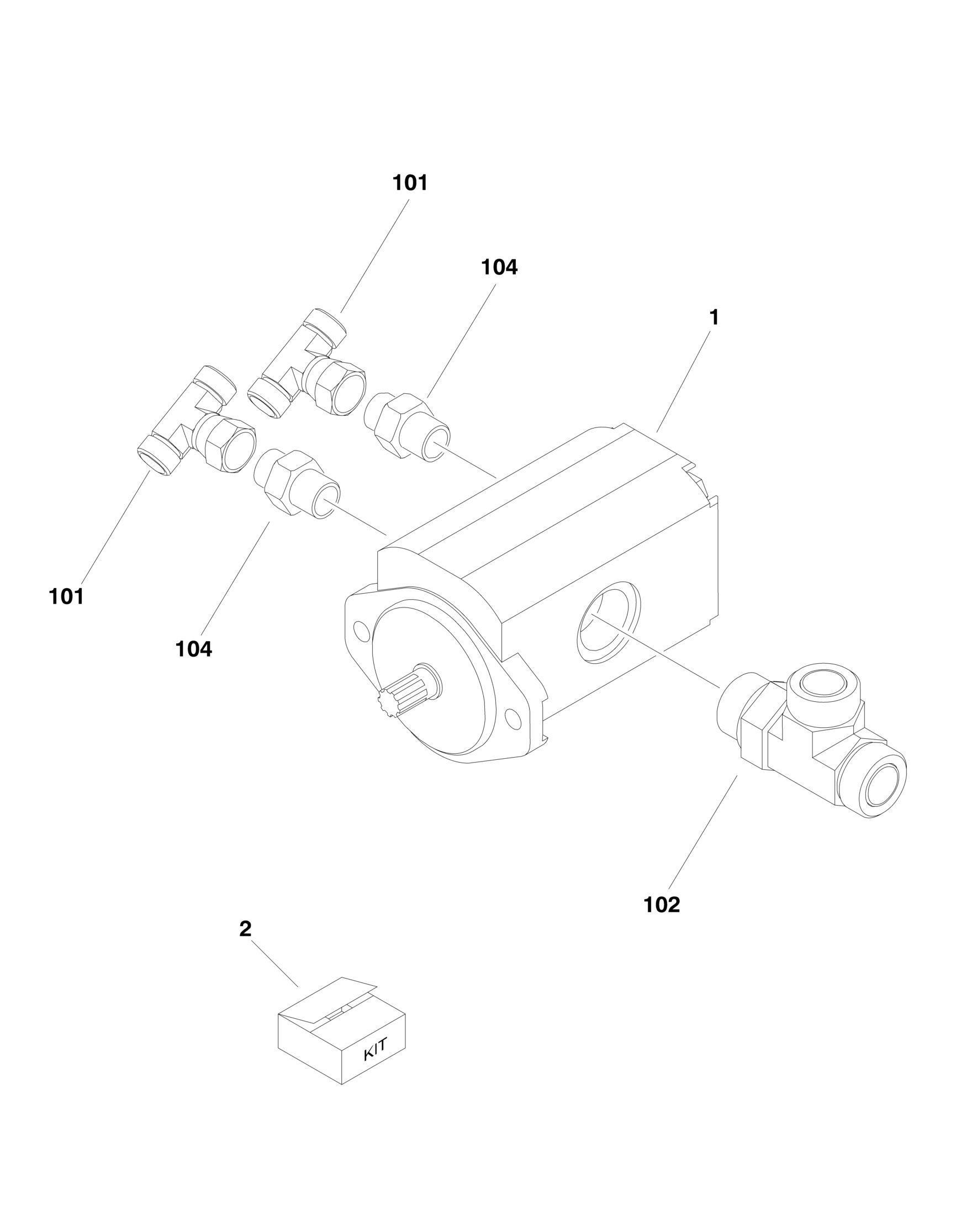

FIGURE 2-14. GEAR PUMP ASSEMBLY

FIGURE 2-14. GEAR PUMP ASSEMBLY

FIGURE 2-14. GEAR PUMP ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1 Ref GEAR PUMP ASSEMBLY 1 3600318 Ref Caterpillar Engine Machines (Without Fittings) 1 1001141449 Ref Deutz and GM Engine Machines 2 7023929 1 Seal Kit Ref Note: Seal Kit is Only Serviceable Part Available. Ref FITTING COMPONENTS Ref Caterpillar Engine Machines (Not Shown Here - See Engine

Installation)

Ref Deutz and GM Engine Machines 101 2220383 2 Fitting, Tee 102 2221026 1 Fitting, Tee 104 1001141913 2 Valve, Check

REV

B A
