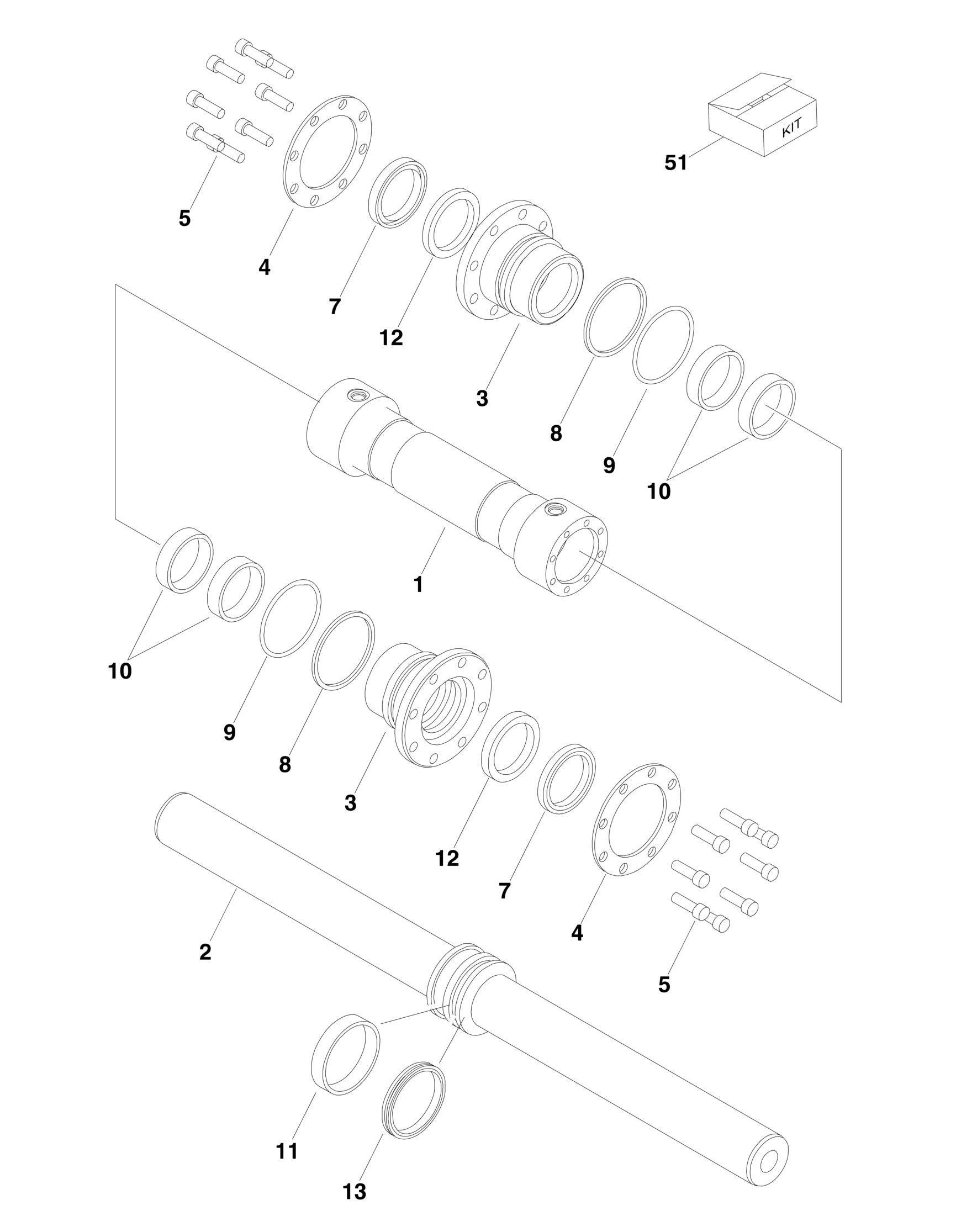

FIGURE 5-8. STEER CYLINDER ASSEMBLY (ORIGINAL EQUIPMENT
ITEM PART NUMBER QTY DESCRIPTION REV
1683614 Ref STEER CYLINDER ASSEMBLY (ORIGINAL EQUIPMENT) C Ref Note: Original Cylinder May Have Been Replaced with Service
Replacement. Identify PN Stamped on Cylinder Before Ordering Parts.
