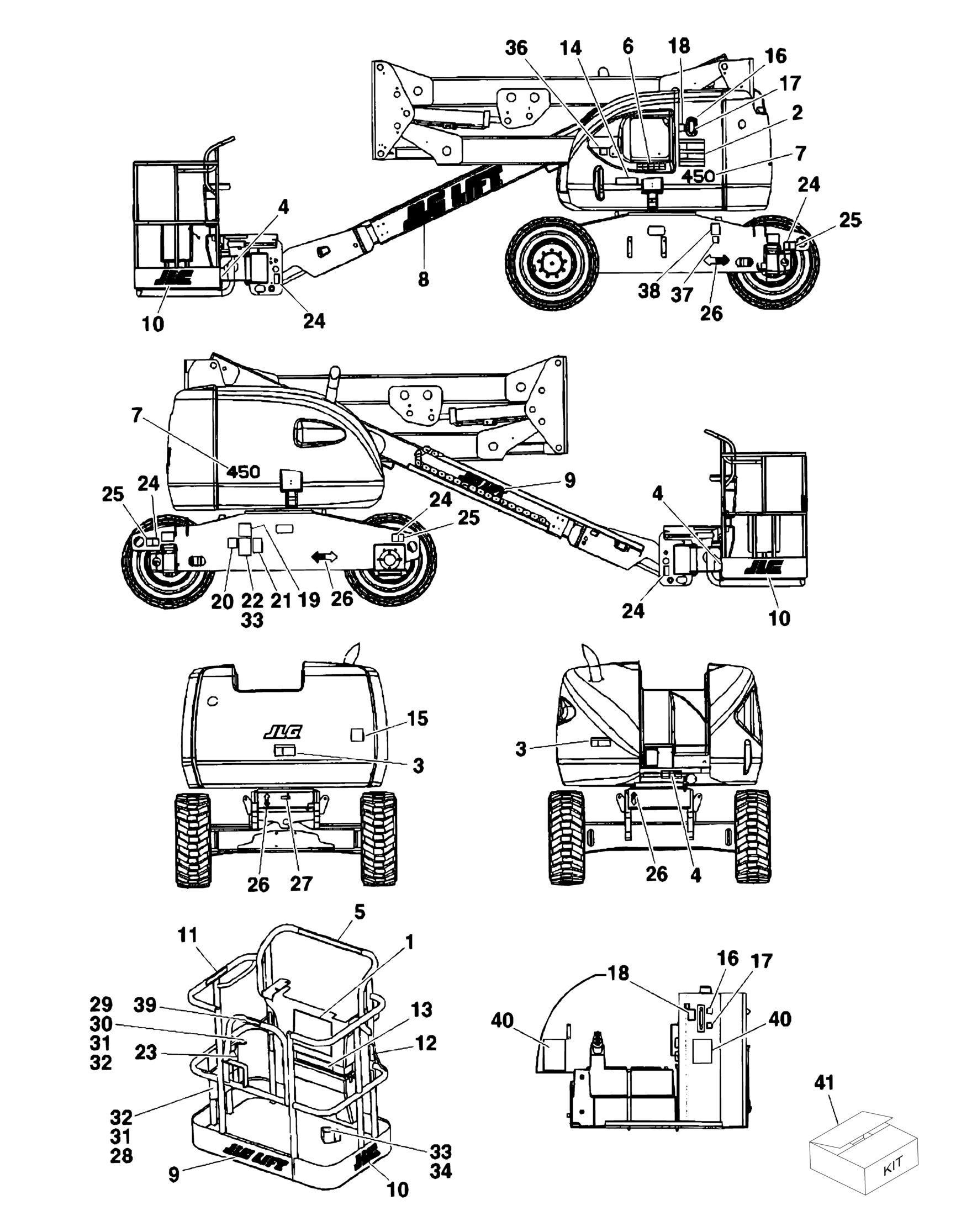

FIGURE 8-1. DECALS INSTALLATION (STANDARD
FIGURE 8-1. DECALS INSTALLATION (STANDARD)
FIGURE 8-1. DECALS INSTALLATION (STANDARD)
ITEM PART NUMBER QTY
DESCRIPTION
Ref STANDARD DECAL INSTALLATIONS 0258347 Ref Standard Decal Installations 450A 0258348 Ref Standard Decal Installations 450AJ 0271017 Ref JLG Logo Decals 1 1703797 1 Decal - Danger/Warning 2 1703798 1 Decal - Danger/Warning 3 1703805 2 Decal - Danger/Electrocution 4 1703804 3 Decal - Warning/Crushing 5 1702784 1 Decal - Legend 6 1703808 1 Decal - Legend 7 Ref Decal - Model Options: 7 1703774 2 Decal - Model 450A 7 1703775 2 Decal - Model 450AJ 8 1702860 1 Decal - JLG Lift (5in) 9 1702774 2 Decal - JLG Lift (3 1/2in) 10 1702773 2 Decal - JLG (5in) 11 1702868 2 Decal - - No Hands 12 Ref Decal - Attach Lanyard Here Options: 12 1702612 3 Decal - Attach Lanyard Here (Prior to SN 0300061091) 12 1704277 3 Decal - Attach Lanyard Here (SN 0300061091 through
0300065080)
13 1701645 1 Decal - 500LBS Max Capacity 14 1702688 1 Decal - 500LBS Max Capacity 15 3251813 1 Decal - USA 16 1701502 2 Decal - High Oil Level 17 1701503 2 Decal - Low Oil Level 18 1701504 2 Decal - Hydraulic Oil 19 1702153 1 Decal - Inspection 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 21 1700584 1 Decal - Patent 22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 6 Decal - Tie Down /Lift 25 1701500 4 Decal - Tie Down /Lift 26 1701529 4 Decal- Arrow 27 Ref Nameplate Options: 27 3251243 1 120V-60Hz 27 3252507 1 220V-/5060Hz 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard 30 0641408 1 Bolt 1/4in-20NC x 1in 31 4751400 6 Flatwasher 1/4in 32 3311405 5 Locknut 1/4in-20NC 33 3820001 AR Rivet 34 3252347 1 Decal - Footswitch (Part of 4360031 Footswitch) 36 Ref Decal - Fuel 36 1701542 1 Ford Engine Machines 36 1701505 1 Deutz Engine Machines 37 Ref Decal - LPG Gas 37 Not Required 0 Non-Dual Fuel Machines
REV
6 6 1
ITEM PART NUMBER QTY DESCRIPTION
37 1701543 1 Dual Fuel Machines 38 Ref Decal - LP Gas Liquid Withdrawal System 38 Not Required 0 Non-Dual Fuel Machines 38 1700818 1 Dual Fuel Machines 40 1702265 1 Decal - Upright Level Override 41 2910061 Decal Kit (Includes Items 1-19, 21, 23-27 & 40)
