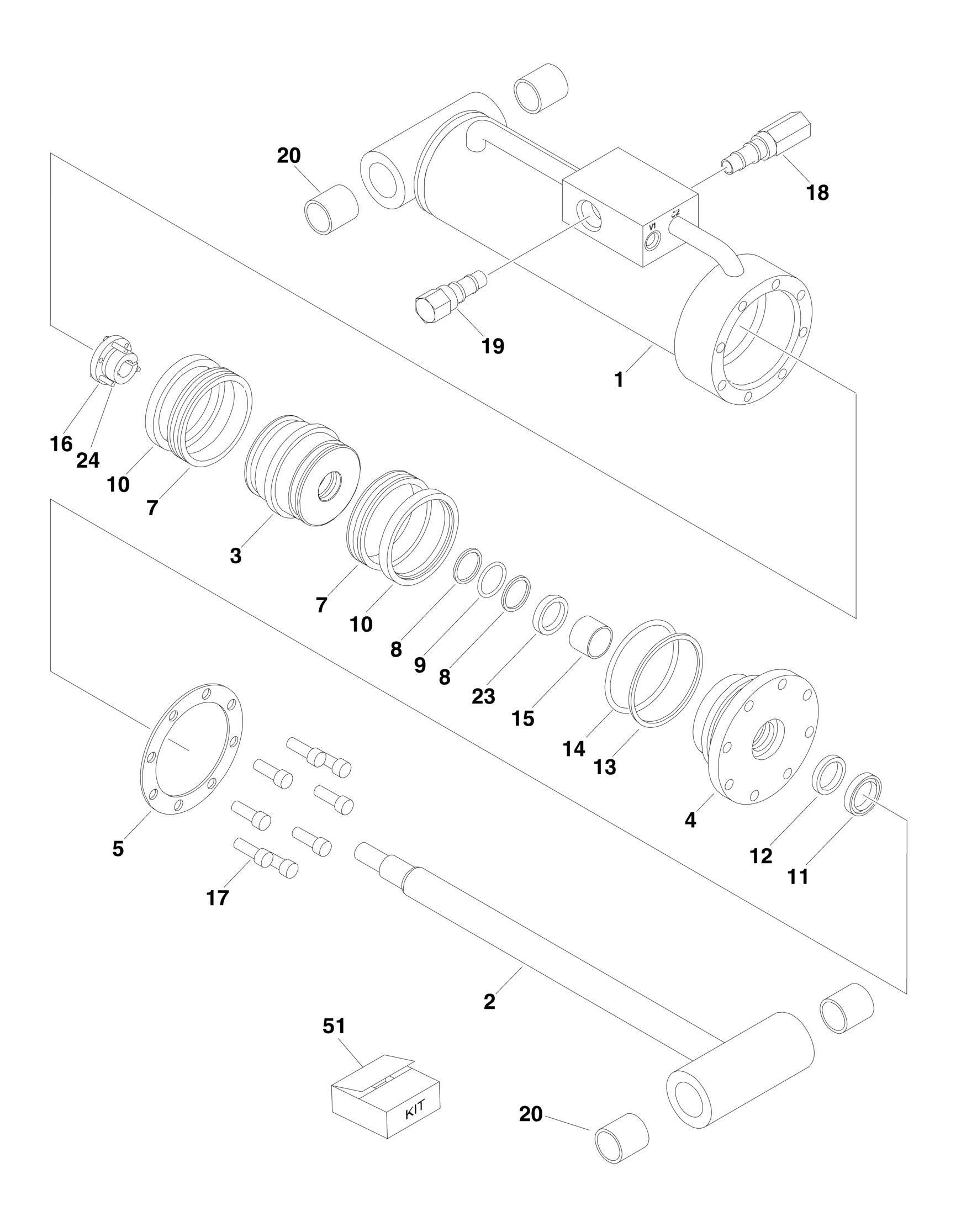

FIGURE 5-2. PLATFORM LEVEL CYLINDER ASSEMBLY
FIGURE 5-2. PLATFORM LEVEL CYLINDER ASSEMBLY
FIGURE 5-2. PLATFORM LEVEL CYLINDER ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
Ref PLATFORM LEVEL CYLINDER ASSEMBLY 1683598 Ref Platform Level Cylinder Assembly 450A (Prior to SN
0300038944)
1683730 Ref Platform Level Cylinder Assembly 450A (SN 0300038944
through 0300065080)
1683598 Ref Platform Level Cylinder Assembly 450AJ (Prior to SN
0300038103)
1683726 Ref Platform Level Cylinder Assembly 450AJ (SN 0300038103
through 0300038943)
1683731 Ref Platform Level Cylinder Assembly 450AJ (SN 0300038944
through 0300065080)
1 1683599 1 Barrel Weldment 2 Ref Rod Options: 2 1683600 NLA Rod (Use Qty 1 of p/ns 1683885 & 4567978) (Prior to SN
0300045397)
2 1683885 1 Rod (SN 0300045397 through 0300065080) 3 3480230 1 Piston 4 1683058 1 Head 5 3760370 1 Washer, Ring 7 See Note NSS Seal, Piston (Note: Use Item 51) 8 See Note NSS Ring, Back-Up (Note: Use Item 51) 9 See Note NSS O-Ring (Note: Use Item 51) 10 See Note NSS Ring, Lock (Note: Use Item 51) 11 See Note NSS Wiper (Note: Use Item 51) 12 See Note NSS Seal (Note: Use Item 51) 13 See Note NSS Ring, Back-Up (Note: Use Item 51) 14 See Note NSS O-Ring (Note: Use Item 51) 15 See Note NSS Ring, Wear (Note: Use Item 51) 16 Ref Bushing, Tapered Options: 16 0961900 NLA Bushing, Tapered (Use p/n 0962185) (Prior to SN
0300054193)
16 0962185 1 Bushing, Tapered (SN 0300054193 through 0300065080) 17 3931720 8 Bolt, Socket Head 7/16in-14NC x 1 1/4in 18 4640932 1 Cartridge, Valve (Counterbalance Vented) 18 7011112 1 Seal Kit - 4640932 Valve 19 Ref Cartridge, Valve Options (Counterbalance Non-Vented): 19 4640509 NLA Cartridge, Valve (Use p/n 4641086) 450A (Prior to SN
0300038944)
19 4641086 1 Cartridge, Valve 450A (SN 0300038944 through 0300065080) 19 4640509 NLA Cartridge, Valve (Use p/n 4641086) 450AJ (Prior to SN
0300038103)
19 4640999 NLA Cartridge, Valve (Use p/n 4641086) 450AJ (SN 0300038103
through 0300038943)
19 4641086 1 Cartridge, Valve 450A (SN 0300038944 through 0300065080) 19 2900792 1 Seal Kit - 4641086 Valve 20 0962006 4 Bushing 21 0100011 AR Loctite #242 (Not Shown) 22 0100038 AR Primer, Locking (Not Shown) 23 Ref Tube, Spacer Options Only: (SN 0300038944 through
0300065080)
23 4567761 1 Tube, Spacer 450A (SN 0300038944 through 0300045396) 23 4567978 1 Tube, Spacer 450A (SN 0300045397 through 0300065080)
REV
D
D
D
B
E
ITEM PART NUMBER QTY
DESCRIPTION
23 4567760 1 Tube, Spacer 450AJ (SN 0300038944 through 0300065080) 23 4567979 1 Tube, Spacer 450AJ (SN 0300045397 through 0300065080) 24 0630534 3 Capscrew #10-24NC x 1in 51 2901543 1 Seal Kit (Includes Items 7-15)
