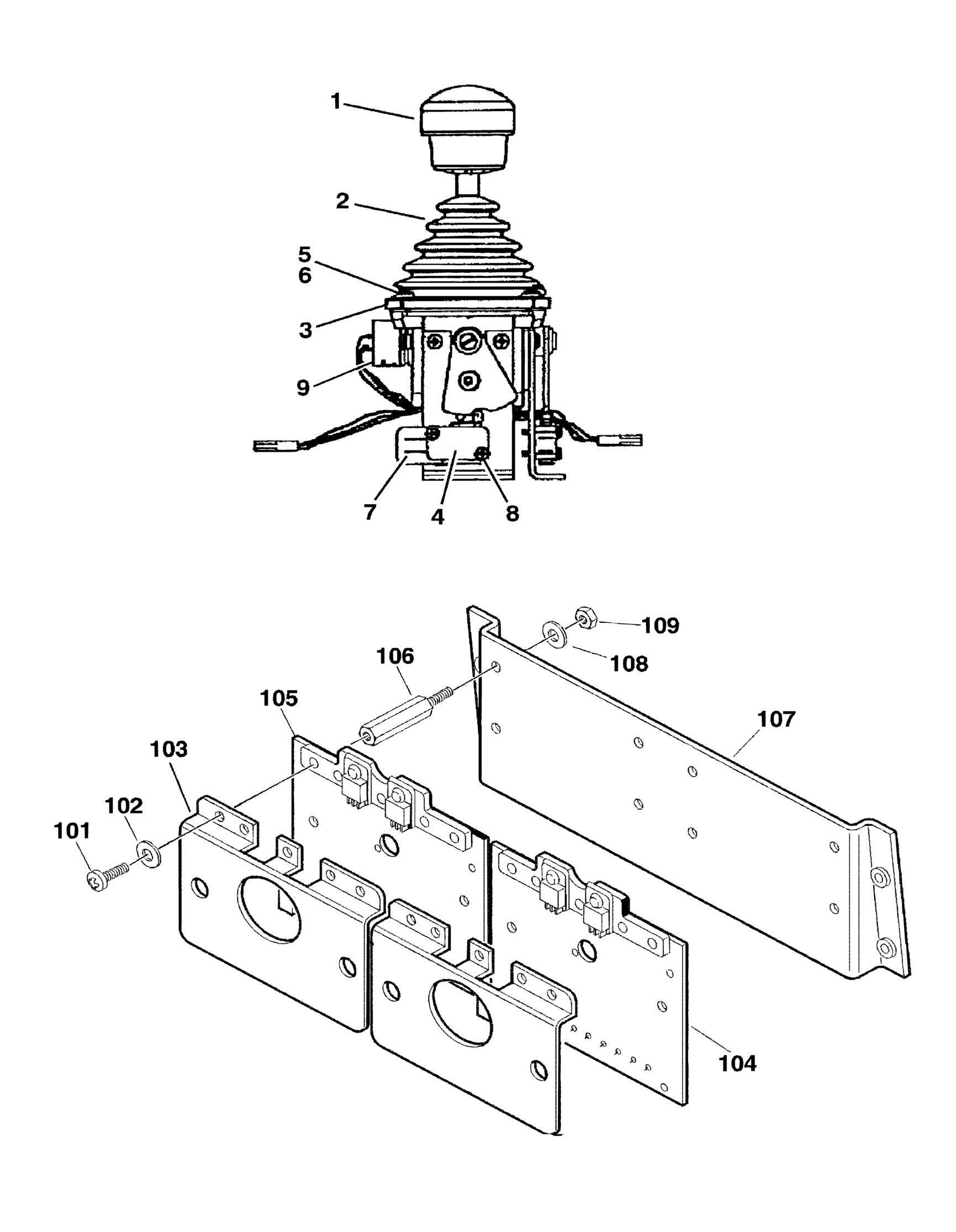

FIGURE 4-3. CONTROLLER ASSEMBLY (LIFT AND SWING) (Prior to SN 0300039857

FIGURE 4-3. CONTROLLER ASSEMBLY (LIFT AND SWING) (Prior to SN 0300039857)

FIGURE 4-3. CONTROLLER ASSEMBLY (LIFT AND SWING) (Prior to SN 0300039857)

ITEM PART NUMBER QTY

DESCRIPTION

Ref Note: use p/n 1600288 when replacing complete controller 1600278 Ref CONTROLLER ASSEMBLY 1 7003951 1 Cap 2 7022813 1 Boot (was p/n 7003955) 3 7022813 1 Flange (was p/n 7003954) 4 7003961 2 Microswitch 5 7019137 4 Screw 6 7003953 4 Flatwasher 7 7019138 2 Insulator 8 7019139 4 Screw 9 7022809 2 Potentiometer 10 7019122 1 Gimble (Inner) (Not Shown) 11 7019123 1 Gimble (Outer) (Not Shown) Ref PC BOARD ASSEMBLY 101 7019136 8 Screw 4mm x 12mm 102 7019135 8 Washer, Wavy 4mm 103 7019134 2 Cover, Heat Shrink 104 7019133 1 PC Board Assembly (Lift) 105 7019132 1 PC Board Assembly (Swing) 106 7019131 8 Stand-Off 107 7019130 1 Bracket 108 7019129 8 Starwasher 4mm 109 7019128 8 Nut 4mm

REV

C
