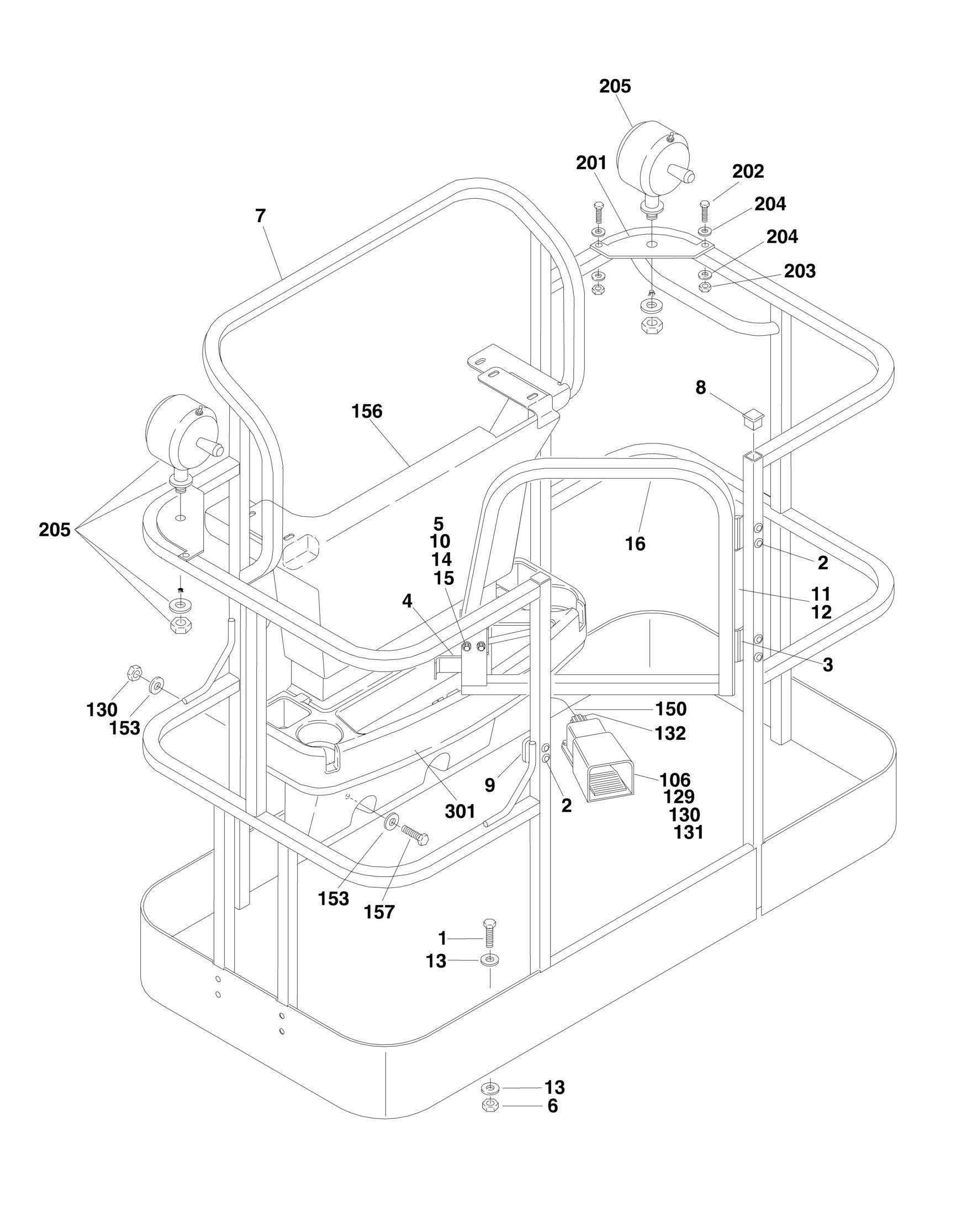

FIGURE 4-1. PLATFORM INSTALLATION

FIGURE 4-1. PLATFORM INSTALLATION

FIGURE 4-1. PLATFORM INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

Ref PLATFORM ASSEMBLIES: 3510626 Ref 48in x 30in (1.22m x .76m) with Standard Gate 3510632 Ref 48in x 30in (1.22m x .76m) with Self-Closing Gate 3510625 Ref 60in x 30in (1.52m x .76m) with Standard Gate 3510678 Ref 60in x 30in (1.52m x .76m) with Standard Gate/Mesh to Top

Rail

3510631 Ref 60in x 30in (1.52m x .76m) with Self-Closing Gate 3510680 Ref 60in x 30in (1.52m x .76m) with Self-Closing Gate/Mesh to Top

Rail

3510624 Ref 72in x 30in (1.83m x .76m) with Standard Gate 3510672 Ref 72in x 30in (1.83m x .76m) with Standard Gate/Mesh to Top

Rail

3510630 Ref 72in x 30in (1.83m x .76m) with Self-Closing Gate 3510679 Ref 72in x 30in (1.83m x .76m) with Self-Closing Gate/Mesh to Top

Rail

Ref Note: Replacement Decals Must Be Ordered Separately - See

DECALS SECTION.

1 0681610 6 Bolt 3/8in-16NC x 1 1/4in (Grade 8) 2 2080040 13 Fastener, Huck 2 7016652 1 Huck Fastener Tool 3 Ref Hinge Options: 3 2600216 2 Standard Gate 3 2600219 2 Self-Closing Gate 4 2940074 1 Latch 5 3311001 4 Nut #10-24NC 6 3311605 6 Locknut 3/8in-16NC 7 See Note NSS Platform Weldment (Note: Purchase Platform Assembly) 8 3520072 3 Cap-Plug 9 3539685 1 Plate, Latch 10 3911008 4 Screw #10-24NC x 1in 11 4060803 1 Trim 12 4220165 1 Stop, Gate 13 4711600 12 Flatwasher 3/8in Narrow 14 4751000 4 Flatwasher #10 15 4761000 4 Lockwasher 3/8in 16 Ref Gate Weldment Options: 16 4845327 1 Standard 16 4845824 1 Mesh to Top Rail (Standard Gate) 16 4845951 1 Mesh to Top Rail (Self-Closing Gate) Ref FOOTSWITCH AND COVERS INSTALLATION 106 4360031 1 Footswitch 106 7000625 2 Block, Contact 129 0641408 3 Bolt 1/4in-20NC x 1in 130 3311405 7 Locknut 1/4in-20NC 131 4740362 5 Washer, Fender 132 4460071 1 Terminal, Strain Relief 150 1060012 7 ft/2.2m Cable, Electrical - 12/4 153 4751400 4 Flatwasher 1/4in 156 3380434 1 Panel, Poly 157 0641406 2 Bolt 1/4in-20NC x 3/4in 0258309 Ref WORKLIGHTS INSTALLATION (OPTIONAL)

REV

E E E B

E C

E B

E C

ITEM PART NUMBER QTY DESCRIPTION

201 3536089 2 Plate, Mounting 202 0641414 4 Bolt 1/4in-20NC x 1 3/4in 203 3311405 4 Locknut 1/4in-20NC 204 4711400 8 Flatwasher 1/4in Narrow 205 2920140 2 Worklight 206 4240099 10 Tie-Strap (Not Shown) 207 2820035 9 Loom, Vinyl (Not Shown) 209 4460598 1 Connector, Strain Relief (Not Shown - Located at Console Box) 210 4920018 18 in/46cm Wire, Black (Not Shown) Ref TRAY INSTALLATIONS (OPTIONAL) 301 1580012 1 Tray, Storage (Center) 302 1580013 1 Tray, Storage (Rail Mounted - Not Shown)

REV
