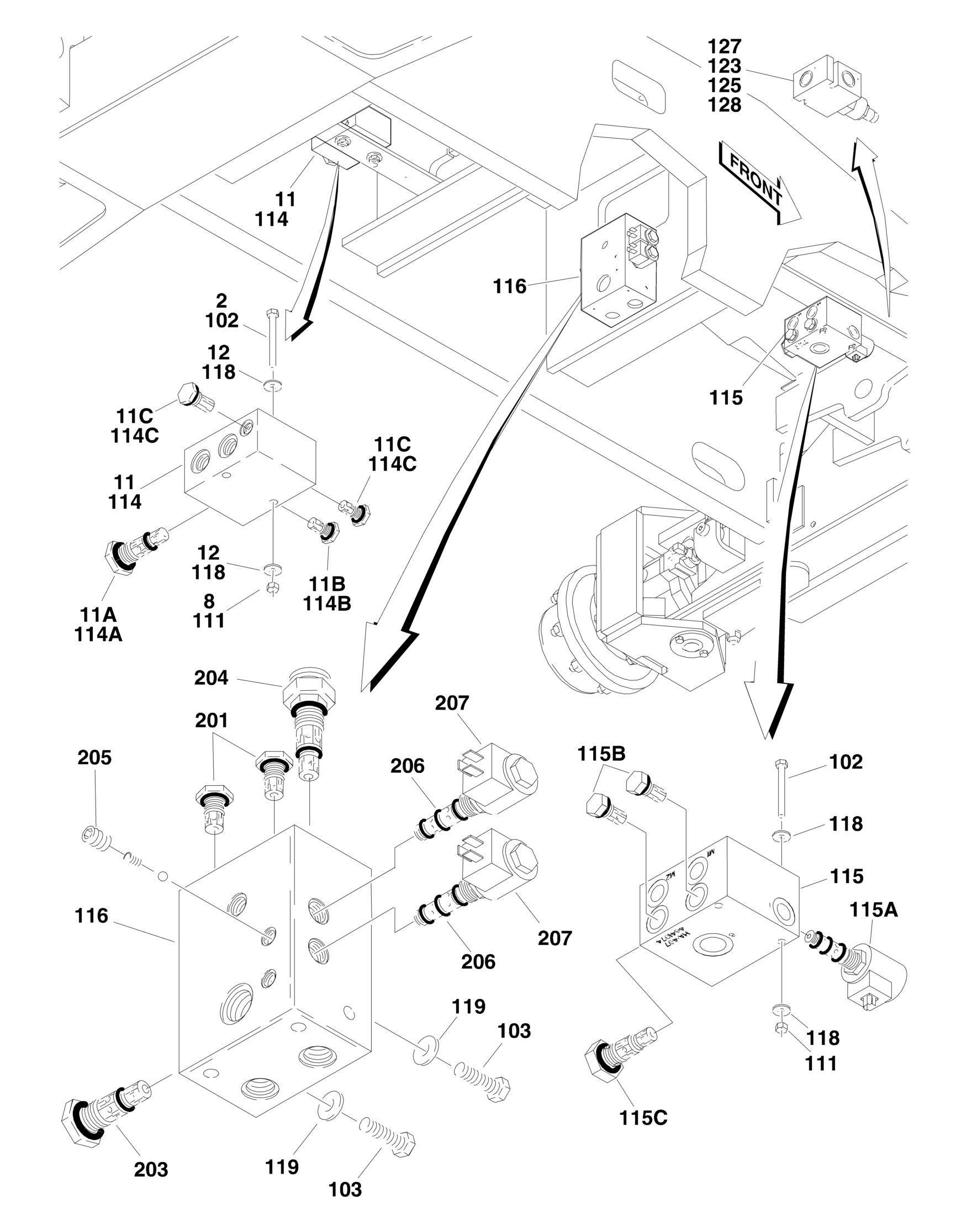

FIGURE 1-10. DRIVE VALVES INSTALLATIONS

FIGURE 1-10. DRIVE VALVES INSTALLATIONS

FIGURE 1-10. DRIVE VALVES INSTALLATIONS

ITEM PART NUMBER QTY DESCRIPTION REV

Ref DRIVE VALVES INSTALLATION - 2WD 0258020 Ref Drive Valves Installation - 2WD (Prior to SN 0300056958) E 0270207 Ref Drive Valves Installation - 2WD (SN 0300056958 through

0300065080)

B 2 0641532 2 Bolt 5/16in-18NC x 4in 8 3311505 2 Locknut 5/16in-18NC 11 Ref Flow Divider Valve Assembly Options: 11 4640923 1 Valve (Not Shown) (Prior to SN 0300037577) 11 7012992 1 Valve, Cartridge 11 7021625 1 Seal Kit - 7012992 Cartridge 11 7012993 1 Orifice 11 4641041 1 Valve (SN 0300037577 through 0300065080) C 11A 7022396 1 Valve, Cartridge (Flow Divider) (Was p/n 7017442) 11A 7021625 1 Seal Kit - 7022396 Cartridge 11B 7022398 1 Valve, Cartridge (Load Shuttle) (Was p/n 7010542) 11B 7023900 1 Seal Kit - 7022398 Cartridge 11C 7022397 2 Valve, Cartridge (Check) (Was p/n 7012930) 11C 7022399 2 Seal Kit - 7022397 Cartridge 11C See Note NSS Orifice (Note: Not Available for Purchase) 12 4751500 4 Flatwasher 5/16in Ref DRIVE VALVES INSTALLATION - 4WD 0258021 Ref Drive Valves Installation - 2WD (Prior to SN 0300056958) F 0270208 Ref Drive Valves Installation - 2WD (SN 0300056958 through

0300065080)

C 101 0100011 AR Loctite #242 (Not Shown) 102 0641532 4 Bolt 5/16in-18NC x 4in 103 0641612 2 Bolt 3/8in-16NC x 1 1/2in 111 3311505 Locknut 5/16in-18NC 114 Ref Flow Divider Valve Assembly Options: 114 4640923 1 Valve (Not Shown) (Prior to SN 0300037577) 114 7012992 1 Valve, Cartridge 114 7021625 1 Seal Kit - 7012992 Cartridge 114 7012993 1 Orifice 114 4641041 1 Valve (SN 0300037577 through 0300065080) C 114A 7022396 1 Valve, Cartridge (Flow Divider) (Was p/n 7017442) 114A 7021625 1 Seal Kit - 7022396 Cartridge 114B 7022398 1 Valve, Cartridge (Load Shuttle) (Was p/n 7010542) 114B 7023900 1 Seal Kit - 7022398 Cartridge 114C 7022397 2 Valve, Cartridge (Check) (Was p/n 7012930) 114C 7022399 2 Seal Kit - 7022397 Cartridge 114C See Note NSS Orifice (Note: Not Available for Purchase) 115 Ref Flow Divider Valve Assembly Options: 115 4640937 1 Valve (Not Shown) (Prior to SN 0300037577) 115 7012993 1 Orifice 115 7021657 1 Valve, Cartridge 115 7021625 1 Seal Kit - 7021657 Cartridge 115 4641074 1 Valve (SN 0300037577 through 0300065080) B 115 7012994 1 Orifice 115A 7012943 1 Coil 115A 7017475 1 Valve, Cartridge (Solenoid)

ITEM PART NUMBER QTY

DESCRIPTION

115A 7012901 1 Seal Kit - 7017475 Cartridge 115B 7012930 2 Valve, Cartridge (Check) 115B 2900756 2 Seal Kit - 7012930 Cartridge 115C 7021657 1 Valve, Cartridge (Flow Divider) (Was p/n 7012980) 115C 7021625 1 Seal Kit - 7021657 Cartridge 116 4641039 1 Valve Assembly (See Items 201 to 207 for Breakdown) 118 4751500 8 Flatwasher 5/16in 119 4751600 2 Flatwasher 3/8in 123 0641418 1 Bolt 1/4in-20NC x 2 1/4in 125 3311405 1 Locknut 1/4in-20NC 127 4641073 1 Valve Assembly Only (SN 0300038566 through 0300065080) 127 7012901 1 Seal Kit - 4641073 Valve 128 4751400 2 Flatwasher 1/4in 4641039 Ref VALVE ASSEMBLY 201 4641193 2 Valve, Cartridge (Check) (was p/n 7012930) 201 7017496 2 Seal Kit - 7012930 & 4641193 Valves (1 per Cartridge) 203 Ref Valve, Cartridge Options (Fixed Flow Control): 203 7021658 1 Valve - Was p/n 7017442 (Prior to SN 0300037577) 203 7021658 1 Valve - Was p/n 7012979 (SN 0300037577 through

0300065080)

203 7021625 1 Seal Kit - 7021658 Valve 204 7017439 1 Valve, Cartridge (Flow Divider/Combiner) 204 7012925 1 Seal Kit - 7017439 Valve 205 7017440 1 Valve, Cartridge (Shuttle) 205 7017441 1 Seal Kit - 7017440 Valve 206 7021612 2 Valve, Cartridge Less Coil (Select and High Speed) 206 7010543 2 Seal Kit - 7021612 Valve (1 per Cartridge) 207 7012944 2 Coil 207 7017403 1 Waterproof Kit

REV

D
