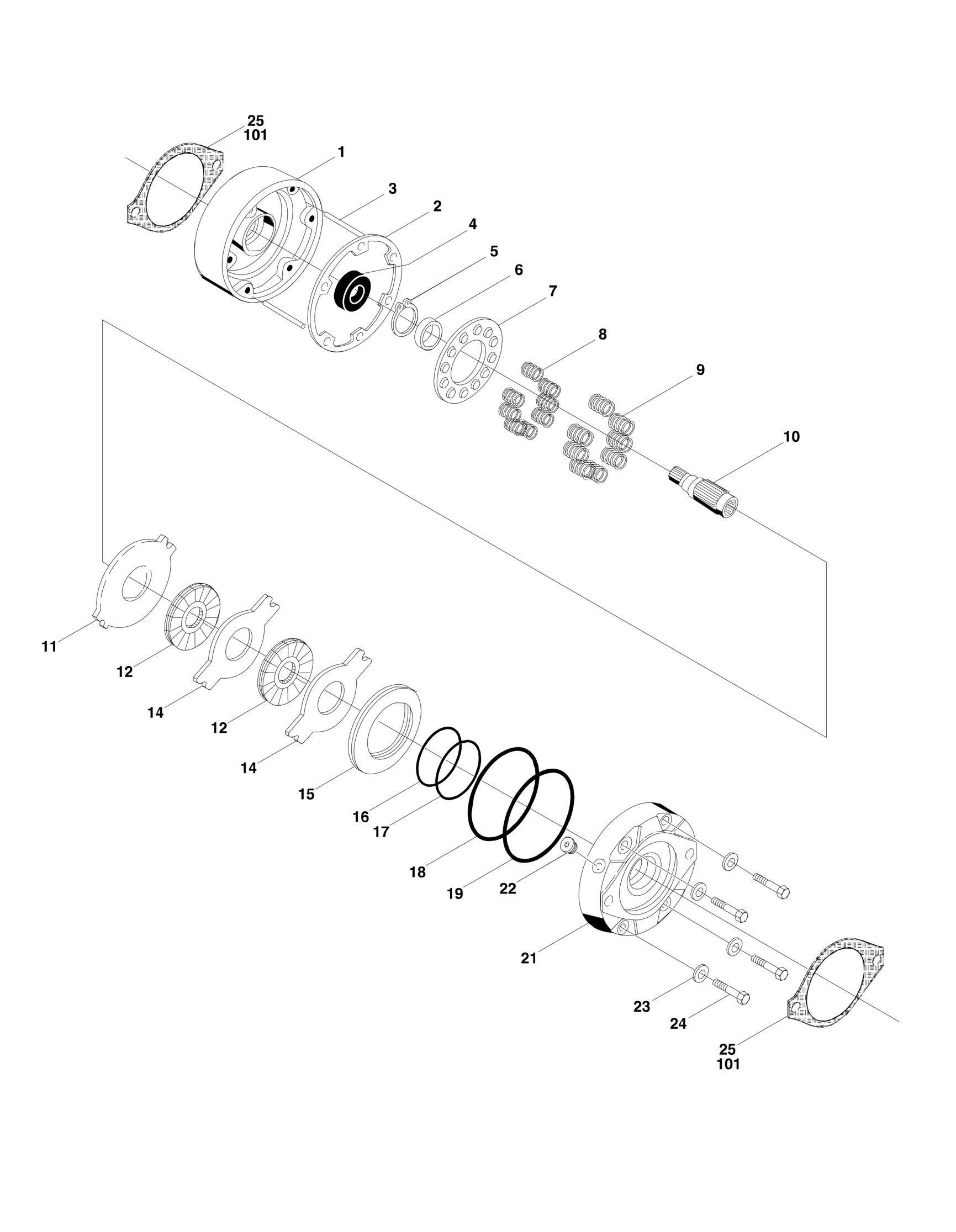

FIGURE 1-5. DRIVE BRAKE ASSEMBLY

FIGURE 1-5. DRIVE BRAKE ASSEMBLY

FIGURE 1-5. DRIVE BRAKE ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

0920112 Ref DRIVE BRAKE ASSEMBLY (Prior to SN 0300056958) 1 7003451 1 Housing 2 7003452 1 Gasket 3 7003094 2 Pin, Torque 4 7003049 1 Bearing, Ball 5 7003453 1 Ring, Retaining 6 7003050 1 Seal 7 7003454 1 Retainer, Spring 8 7000798 10 Spring, Compression (Small) 9 7000782 10 Spring, Compression (Large) 10 7003455 1 Shaft 11 7003456 1 Disc, Primary 12 7003457 2 Disc, Rotating 14 7003459 2 Disc, Stationary 15 7003460 1 Piston 16 7000722 1 Ring, Back-Up 17 7000723 1 O-Ring 18 7000724 1 Ring, Back-Up 19 7000725 1 O-Ring 21 7003461 1 Plate, Power 22 7000728 1 Plug, Protective 23 7003462 4 Flatwasher 1/2in 24 7003463 4 Bolt 1/2in-13NC 25 7000731 2 Gasket Not Available 1 Seal Kit - 0920112 Brake 0920117 Ref DRIVE BRAKE ASSEMBLY (NOT SHOWN) (SN 0300056958

through 0300065080)

101 7000731 2 Gasket (Located between Hub/Brake and Brake/Motor) 101 7018612 1 Kit, Repair - 0920117 Brake 101 7018613 2 Screw, Washer Head Cap (Securing Pressure Plate to Cover Plate) Ref Note: No Other Serviceable Parts Available.
