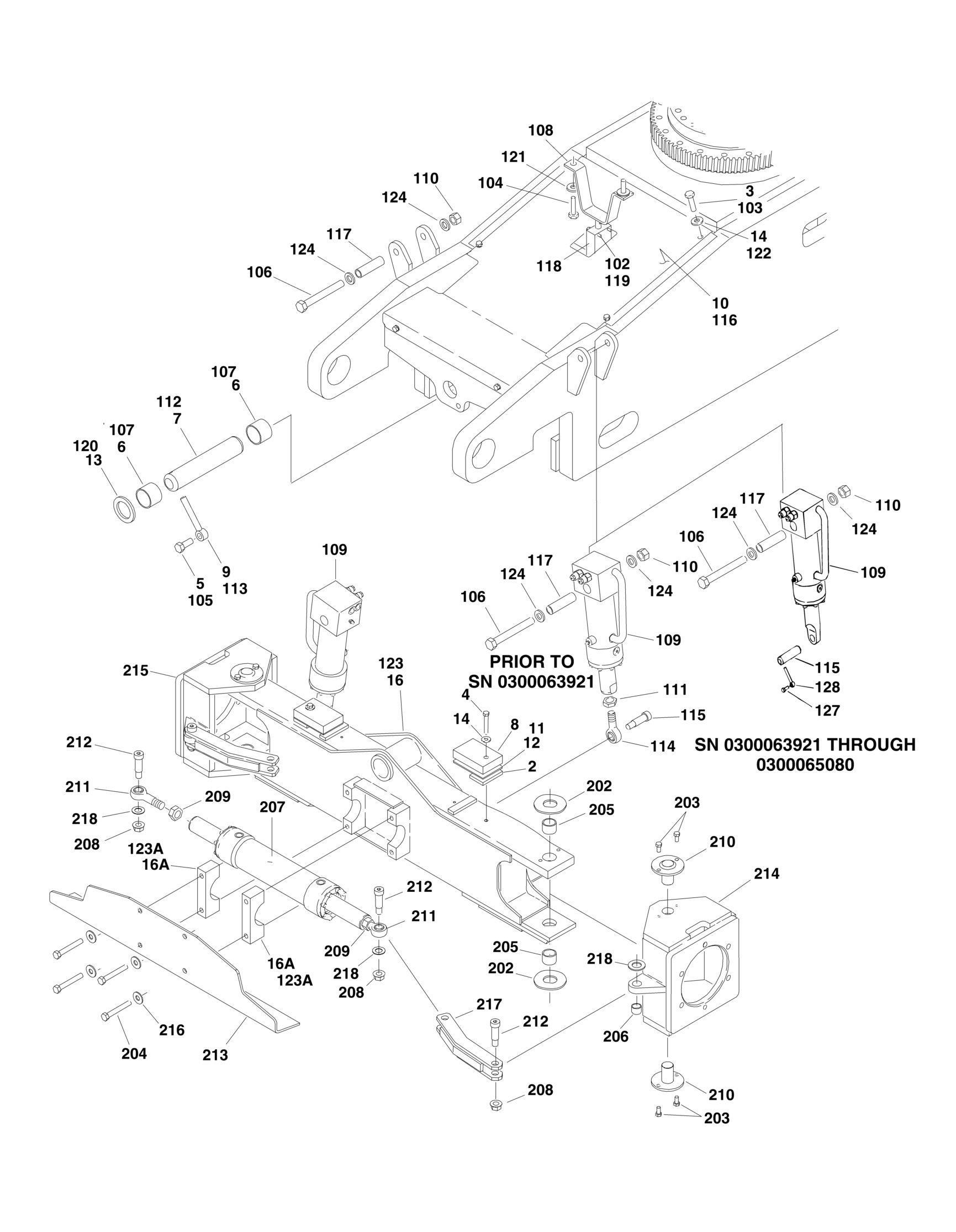

FIGURE 1-3. AXLE AND STEERING INSTALLATION - 4WD

FIGURE 1-3. AXLE AND STEERING INSTALLATION - 4WD

FIGURE 1-3. AXLE AND STEERING INSTALLATION - 4WD

ITEM PART NUMBER QTY

DESCRIPTION

0258027 Ref FIXED AXLE INSTALLATION 1 0100011 AR Loctite #242 (Not Shown) 2 0362763 2 Bar, Stop 3 0641606 6 Bolt 3/8in-16NC x 3/4in 4 0641620 2 Bolt 3/8in-16NC x 2 1/4in 5 0642012 1 Bolt 5/8in-11NC x 1 1/2in 6 0961950 2 Bushing, Garmax 7 Ref Pin, Axle Pivot Options: 7 3422431 NLA Pin, Axle Pivot (Use p/n 3422592) (Prior to SN 0300056275) 7 3422592 1 Pin, Axle Pivot (SN 0300056275 through 0300065080) 8 3570901 2 Plate, Stop 9 3841258 1 Keeper, Pin 10 4060951 1 Shield, Frame 11 4070973 AR Shim 1/8in 12 4070974 AR Shim 1/16in 13 4740158 1 Thrustwasher 14 4751600 8 Flatwasher 3/8in 16 4845700 1 Axle Weldment 16A 0561300 2 Steer Cylinder Mounting Block Assembly 0258025 Ref OSCILLATING AXLE INSTALLATION 101 0100011 AR Loctite #242 (Not Shown) 102 0641414 4 Bolt 1/4in-20NC x 1 3/4in 103 0641606 6 Bolt 3/8in-16NC x 3/4in 104 0641812 2 Bolt 1/2in-13NC x 1 1/2in 105 0642012 1 Bolt 5/8in-11NC x 1 1/2in 106 0682248 2 Bolt 3/4in-10NC x 6in 107 0961950 2 Bushing, Garmax 108 1100107 1 Cam, Lockout 109 Ref Lockout Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 109 1683575 2 Lockout Cylinder Assembly (Prior to SN 0300063921) 109 1684139 2 Lockout Cylinder Assembly (SN 0300063921 through

0300065080)

110 3272201 2 Nut 3/4in-10NC 111 3322201 2 Nut 3/4in-16NF 112 Ref Pin, Axle Pivot Options: 112 3422431 NLA Pin, Axle Pivot (Use p/n 3422592) (Prior to SN 0300056275) 112 3422592 1 Pin, Axle Pivot (SN 0300056275 through 0300065080) 113 3841258 1 Keeper, Pin 114 3841367 2 Rod-End with Grease Fitting 114 7020180 1 Grease Fitting 115 Ref Hardware Options: 115 3900109 2 Screw, Shoulder (Prior to SN 0300063921) 115 3422936 2 Pin (SN 0300063921 through 0300065080) 116 4060951 1 Shield, Frame 117 4567462 2 Tube, Mounting 118 4640871 1 Lockout Valve Assembly 118 7012693 1 Seal Kit - 4640871 Valve 118 7002480 1 Tool, Pin Removal (Not Shown) 118 7002840 1 Anti-Rotation Pin Removal Tool

REV

C

F

ITEM PART NUMBER QTY DESCRIPTION

119 4711400 4 Flatwasher 1/4in Narrow 120 4740158 1 Thrustwasher 121 4751800 4 Flatwasher 1/2in 122 4751600 6 Flatwasher 3/8in 123 4845700 1 Axle Weldment 123A 0561300 2 Steer Cylinder Mounting Block Assembly 124 4892200 4 Flatwasher 3/4in 126 0100019 AR Loctite #271 (Not Shown) 127 0641607 2 Bolt 3/8in-16NC x 7/8 (SN 0300063921 through 0300065080) 128 3841520 2 Keeper 3/8 (SN 0300063921 through 0300065080) 0258023 Ref STEERING INSTALLATION 201 0100011 AR Loctite #242 (Not Shown) 202 0440161 4 Thrustwasher 203 0641606 8 Bolt 3/8in-16NC x 3/4in 204 0681828 4 Bolt 1/2in-13NC x 3 1/2in 205 0961951 4 Bushing, Garmax 206 0962140 2 Bearing, Garmax 207 1683614 NLA Steer Cylinder Assembly (Use p/n 1684412) (Original Equipment) (See CYLINDER SECTION for Breakdown) 207 1684412 1 Steer Cylinder Assembly (Service Replacement) (See CYLINDER SECTION for Breakdown) 208 3312008 4 Nut 5/8in-11NC 209 3322201 2 Nut 3/4in-16NF 210 3422716 4 Kingpin 211 3841367 2 Rod-End with Grease Fitting 211 7020180 1 Grease Fitting 212 3900109 4 Screw, Shoulder 213 4060950 1 Shield, Frame 214 4130363 1 Spindle (Left Side) 215 4130364 1 Spindle (Right Side) 216 4751800 4 Flatwasher 1/2in 217 4845711 2 Tie-Rod 218 4740086 4 Thrustwasher

REV

B
