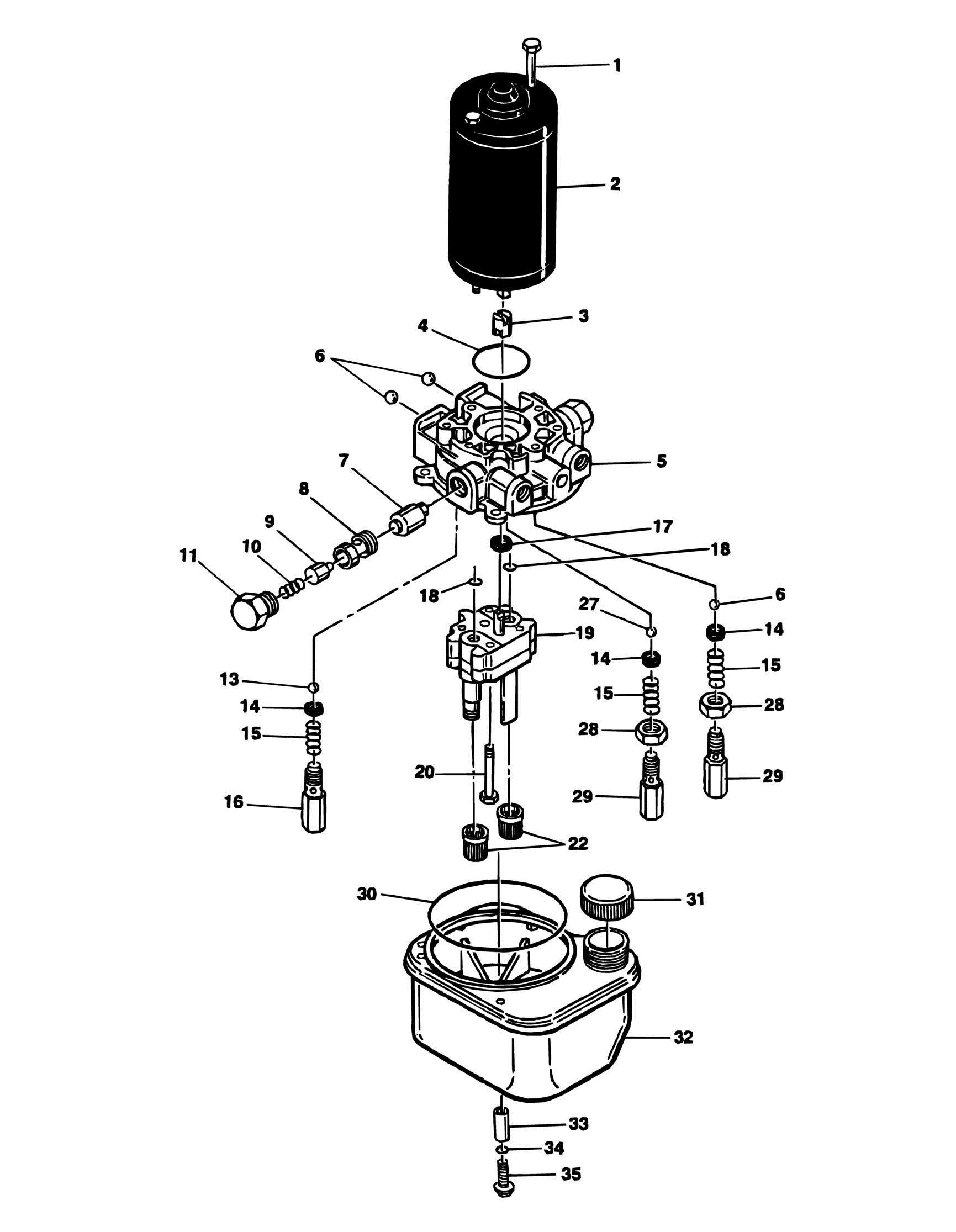

FIGURE 4-2. ROTATOR MOTOR/PUMP/TANK ASSEMBLY
FIGURE 4-2. ROTATOR MOTOR/PUMP/TANK ASSEMBLY
FIGURE 4-2. ROTATOR MOTOR/PUMP/TANK ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
3600253 Ref ROTATOR MOTOR/PUMP/TANK ASSEMBLY 1 Not Serviced 2 Stud, Motor Mounting 2 7003563 1 Motor (Includes Mounting Bolts) 2 Not Available 1 Brush/Spring Kit 3 7003551 1 Coupling 4 Kit 1 O-Ring 5 Not Serviced 1 Adapter 6 7003576 3 Ball, Steel 7 7003564 1 Spool 8 7003565 1 Body, Check Valve (Includes O-Ring) 9 7003566 2 Poppet Assembly 10 7003567 2 Spring 11 7003568 2 Retainer, Hex 13 7003569 2 Ball 14 7003570 4 Eyelet 15 7003571 4 Spring 16 7003572 2 Screw, Thermal Relief Adjusting 17 Kit 1 Seal, Shaft 18 Kit 1 O-Ring 19 7003573 1 Pump 20 Not Serviced 2 Capscrew, Torx 22 7003554 2 Filter 27 7003574 1 Ball, Steel 28 Not Serviced 2 Nut 7/16in-20 29 7003575 2 Screw, Relief Valve Adjusting 30 Kit 1 Seal, Reservoir 31 7003556 1 Cap, Reservoir 32 7003557 1 Reservoir 33 Not Serviced 1 Spacer 34 Kit 1 O-Ring 35 Not Serviced 1 Bolt, Self-Tapping 7003562 1 Seal Kit (Includes Items 4, 17, 18, 30, 34 and Pump Seals and ORings)
