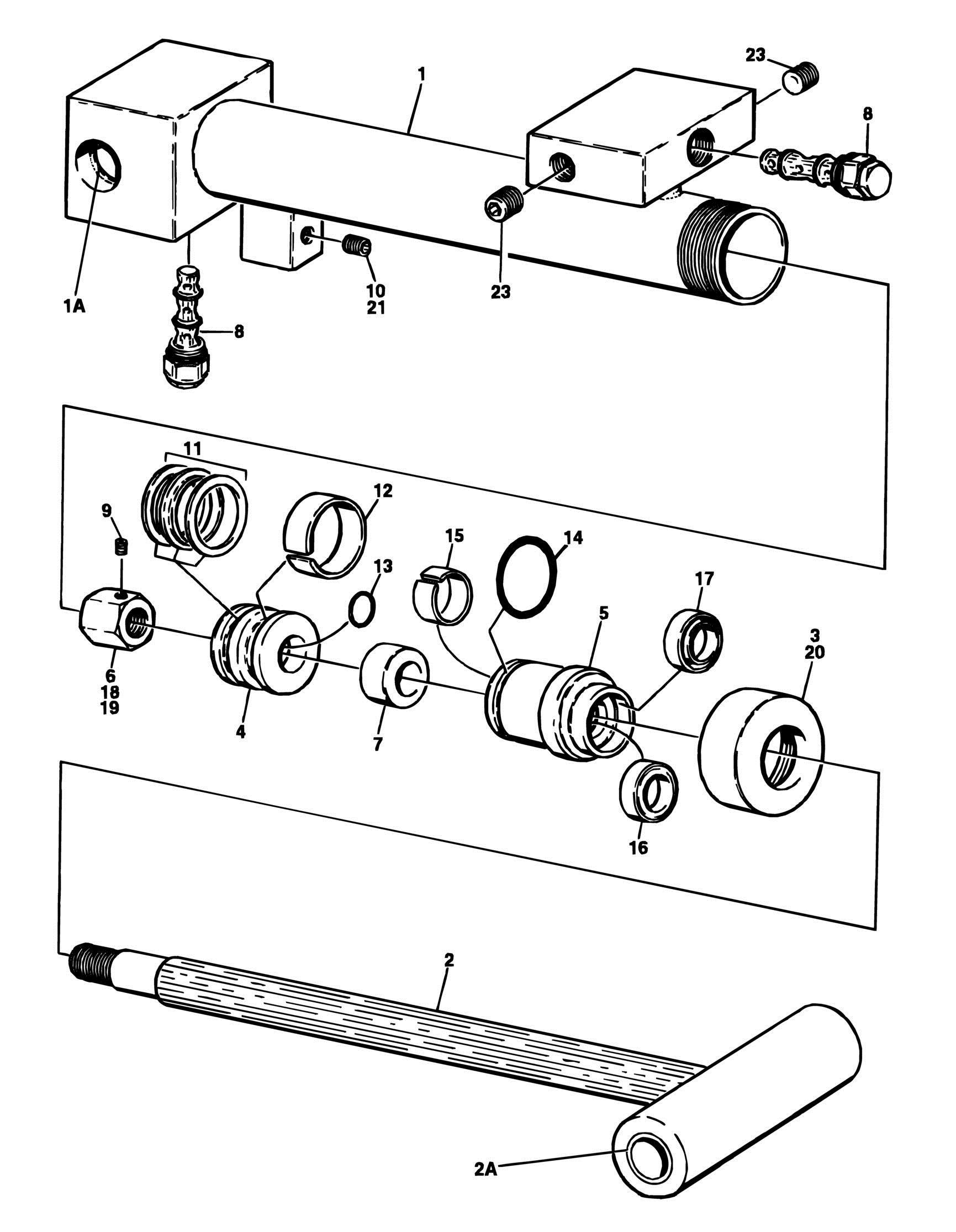

FIGURE 5-6. SLAVE (PLATFORM LEVEL) CYLINDER ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1683285 Ref SLAVE (PLATFORM LEVEL) CYLINDER ASSEMBLY 1 1682878 1 Barrel Weldment 1A 0961608 2 Bushing, Teflon 2 1683286 1 Rod Weldment 2A 0961608 2 Bushing, Teflon 3 1120110 1 Retainer 4 3480217 1 Piston 5 1682154 1 Head 6 3300308 1 Nut, Hex 7 4566023 1 Spacer, Tube 8 4640932 1 Cartridge, Holding Valve 8 7011112 1 Seal Kit - 4640932 Valve 9 3900170 1 Setscrew 3/8in-16NC x 3/8in 10 2200222 1 Plug, Pipe 11 Kit 1 T-Seal 12 Kit 1 Ring, Wear 13 Kit 1 O-Ring 14 Kit 1 O-Ring 15 Kit 1 Ring, Wear 16 Kit 1 Seal, Rod 17 Kit 1 Wiper, Rod 18 0100038 AR Primer, Locking 19 0100011 AR Loctite #242 20 0100035 AR Loctite #222 21 0100020 AR Sealant, Pipe 23 2220883 2 Plug, Socket Hex 2901147 1 Seal Kit - 1683285 Cylinder (Includes Items 11-17)
