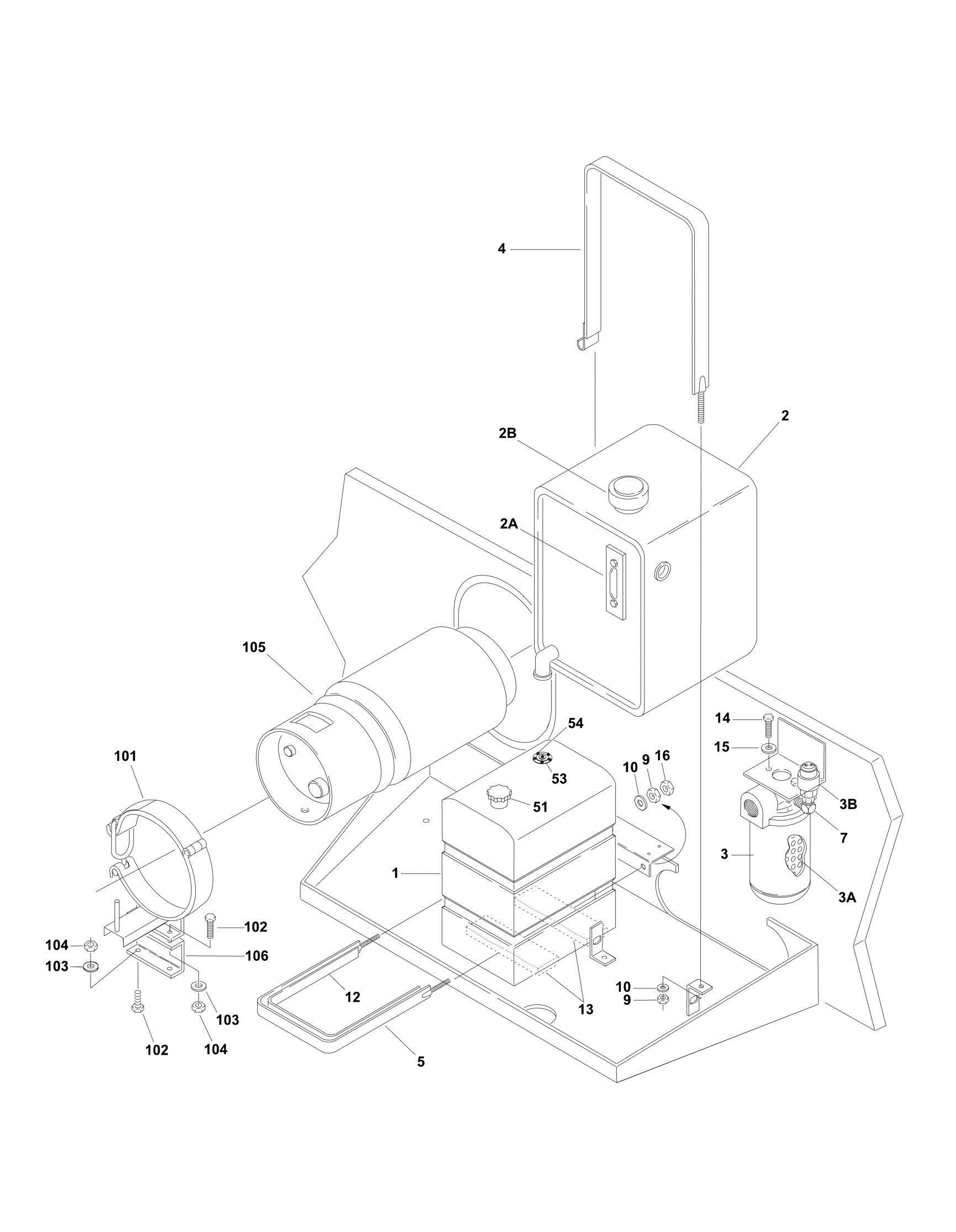

FIGURE 1-13. TANK INSTALLATIONS

FIGURE 1-13. TANK INSTALLATIONS

FIGURE 1-13. TANK INSTALLATIONS

ITEM PART NUMBER QTY DESCRIPTION

Ref TANK INSTALLATIONS 0255993 Ref Fuel and Hydraulic Tanks and Filter Installation (Without

Locking Cap)

0257341 Ref Fuel and Hydraulic Tanks and Filter Installation (With Locking

Cap)

1 4400371 1 Tank, Fuel (Prior to SN 30747) 1 4400401 1 Tank, Fuel (SN 30747 to Present) 1A 1120477 1 Cap, Fuel 2 4400383 1 Tank, Hydraulic Oil 2A 7014802 1 Gauge, Sight 2B 7014803 1 Breather/Filler 3 2120157 1 Hydraulic Oil Filter Assembly 3A 2120158 1 Element, Filter 3B 7016313 1 Switch, Electrical Pressure (Clogging Indicator) 4 4240118 1 Strap, Hold-Down (Hydraulic Tank) 5 4240117 1 Strap, Hold-Down (Fuel Tank) 7 2180117 1 Fitting, 90 8 0100020 AR Sealant, Pipe (Not Shown) 9 3311601 4 Nut 3/8in-16NC 10 4711600 4 Flatwasher 3/8in Narrow 11 0100011 AR Loctite #242 (Not Shown) 12 4280295 30 in/76cm Strip, Bumper 13 4420038 20 in/51cm Moulding, Rubber 14 0641406 2 Bolt 1/4in-20NC x 3/4in 15 4711400 2 Flatwasher 1/4in Narrow 16 3311602 2 Nut, Jam 3/8in-16NC 51 Ref Cap, Fuel Options: 51 1120477 1 Without Locking Cap 51 1120485 1 With Locking Cap (Self Closing) 52 0100019 AR Loctite #271 (Not Shown) (With Locking Cap Only) 53 2420185 1 Sender, Fuel (With Locking Cap Only) 54 4771000 1 Lockwasher, Star #10 (With Locking Cap Only) 0256272 Ref LP TANK INSTALLATION (DUAL FUEL OPTION) 101 1320228 1 Clamp Kit 102 0641608 4 Bolt 3/8in-16NC x 1in 103 4751600 8 Flatwasher 3/8in 104 3311605 4 Locknut 3/8in-16NC 105 Ref LP Tank Options: 105 4400275 1 43.5 Lbs Tank (Alum) 105 4400420 1 43.5 Lbs Tank (Steel) 105 4400281 1 33.5 Lbs Tank (Alum) 105 4400421 1 33.5 Lbs Tank (Steel) 106 0902275 1 Bracket

REV

E-5

B-2

B
