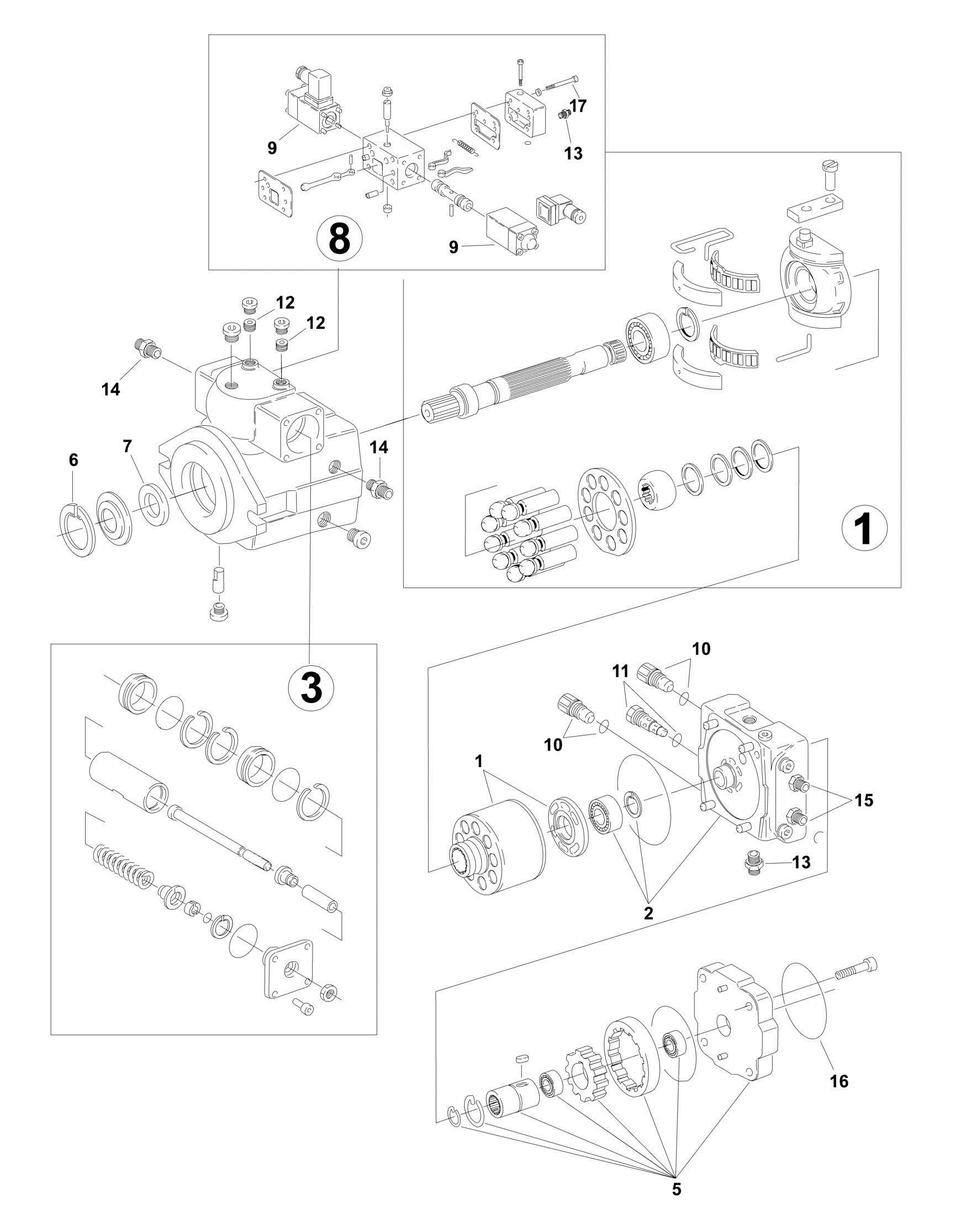

FIGURE 1-11. PISTON PUMP ASSEMBLY

FIGURE 1-11. PISTON PUMP ASSEMBLY

FIGURE 1-11. PISTON PUMP ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

3600256 Ref PISTON PUMP ASSEMBLY 1 7018925 1 Rotary Group Assembly 2 7018926 1 Port Plate Assembly (Includes Items 10 & 11) 3 7018927 1 Stroking Cylinder Assembly 5 7018929 1 Connecting Plate Assembly 6 7018930 1 Ring, Retaining 7 7018931 1 Seal, Shaft 8 7018932 1 Proportional Valve Assembly (Includes Item 9) 9 7018933 2 Coil, Solenoid 10 7018934 2 Cartridge,Valve - High Pressure Relief 11 7018935 1 Cartridge, Valve - Boost Oil Pressure Relief 12 7018936 2 Orifice 13 7018937 2 Fitting, Adapter 14 7018938 2 Fitting, Adapter 15 7018939 1 Fitting, Adapter 16 7018953 1 O-Ring 17 7024016 4 Screw M6 x 55 7018940 1 Seal Kit - Complete External

REV

D
