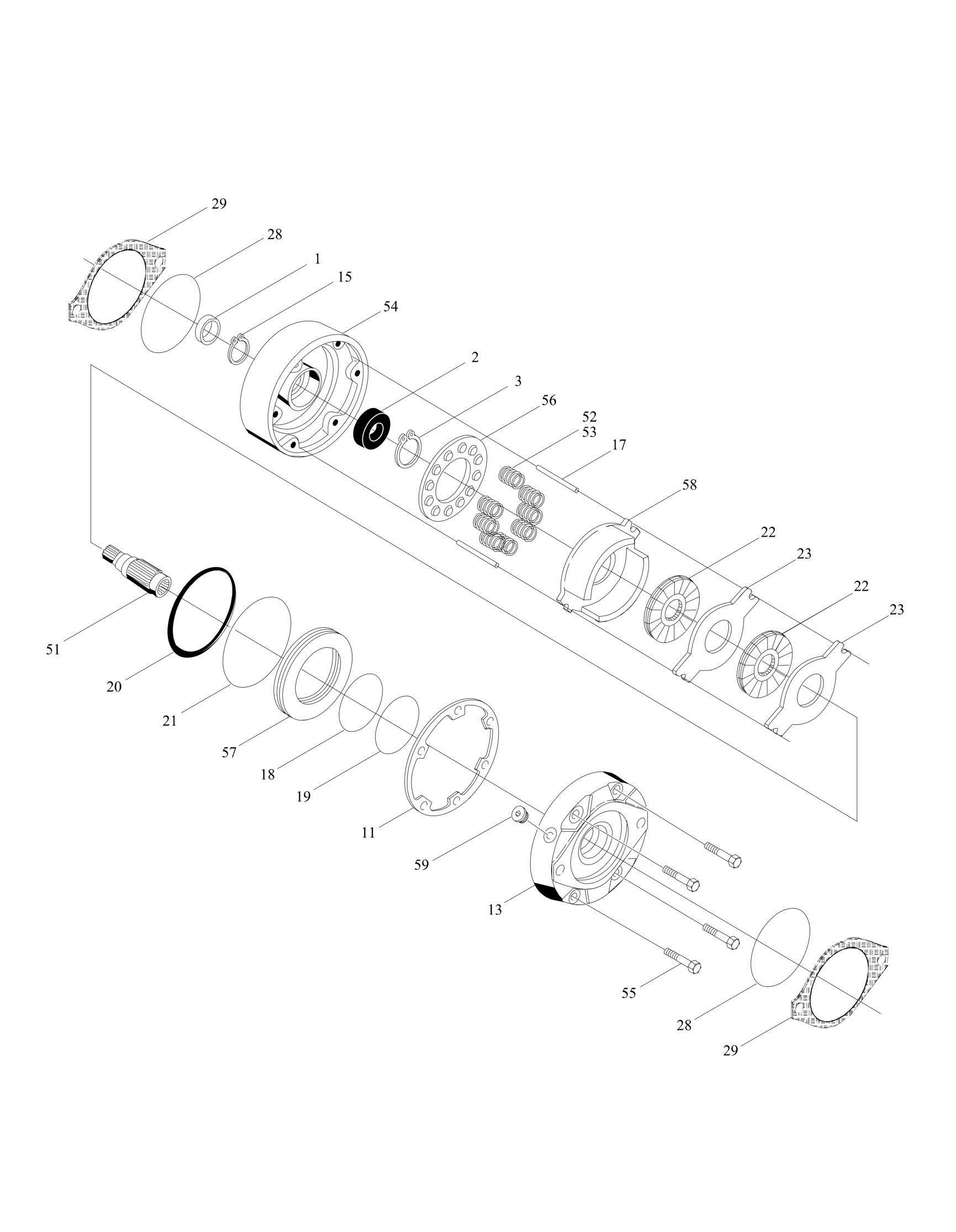

FIGURE 1-5. DRIVE BRAKE ASSEMBLY

FIGURE 1-5. DRIVE BRAKE ASSEMBLY

FIGURE 1-5. DRIVE BRAKE ASSEMBLY

ITEM PART NUMBER QTY DESCRIPTION REV

1

Kit 1 Seal, Oil 2 Kit 1 Bearing 3 7007977 1 Ring, Retaining 11 Kit 1 Seal, Case 13 7007986 1 Cover 15 7011716 1 Ring, Retainer 17 7007987 2 Pin, Dowel 18 Kit 1 Ring, Back-up 19 Kit 1 O-Ring 20 Kit 1 Ring, Back-up 21 Kit 1 O-Ring 22 Kit 2 Rotor 23 Kit 2 Stator 28 Kit 2 O-Ring 29 7007933 2 Gasket 2900766 1 Seal Kit (Includes Items 1, 11, 18, 19, 20, 21, 28 & 29) 2900768 1 Bearing Kit (Includes Items 1, 2, 11, 28 & 29) 0920084 Ref DRIVE BRAKE ASSEMBLY - MICO (Prior to SN 33476) 0920110 Ref DRIVE BRAKE ASSEMBLY - MICO (SN 33476 to Present) A 51 Ref Shaft Options: 51 7011712 1 Shaft (Prior to SN 33476) 51 7011720 1 Shaft (SN 33476 to Present) 52 Ref Spring (Inner) Options: 52 7007979 6 Spring (Inner) (Prior to SN 33476) 52 7007970 6 Spring (Inner) (SN 33476 to Present) 53 Ref Spring (Outer) Options: 53 7007980 6 Spring (Outer) (Prior to SN 33476) 53 7018602 6 Spring (Outer) (SN 33476 to Present) 54 Ref Housing Options: 54 7011713 1 Housing (Prior to SN 33476) 54 7018605 1 Housing (SN 33476 to Present) 55 Ref Bolt, Washer Head Options: 55 7007985 4 Bolt, Washer Head (Prior to SN 33476) 55 7018607 4 Bolt, Washer Head (SN 33476 to Present) 56 Ref Guide, Spring Options: 56 7011717 1 Guide, Spring (Prior to SN 33476) 56 7018606 1 Guide, Spring (SN 33476 to Present) 57 Ref Piston Options: 57 7007923 1 Piston (Prior to SN 33476) 57 7018603 1 Piston (SN 33476 to Present) 58 Ref Plate, Return 58 Kit 1 Kit 58 7011715 2 Separator Assembly 58 7011714 4 Pin 58 7007983 2 Separator 59 7018609 1 Plug 59 7018608 1 Lining Kit (Includes Items 58, 11, 22, 23, 28 & 29)
