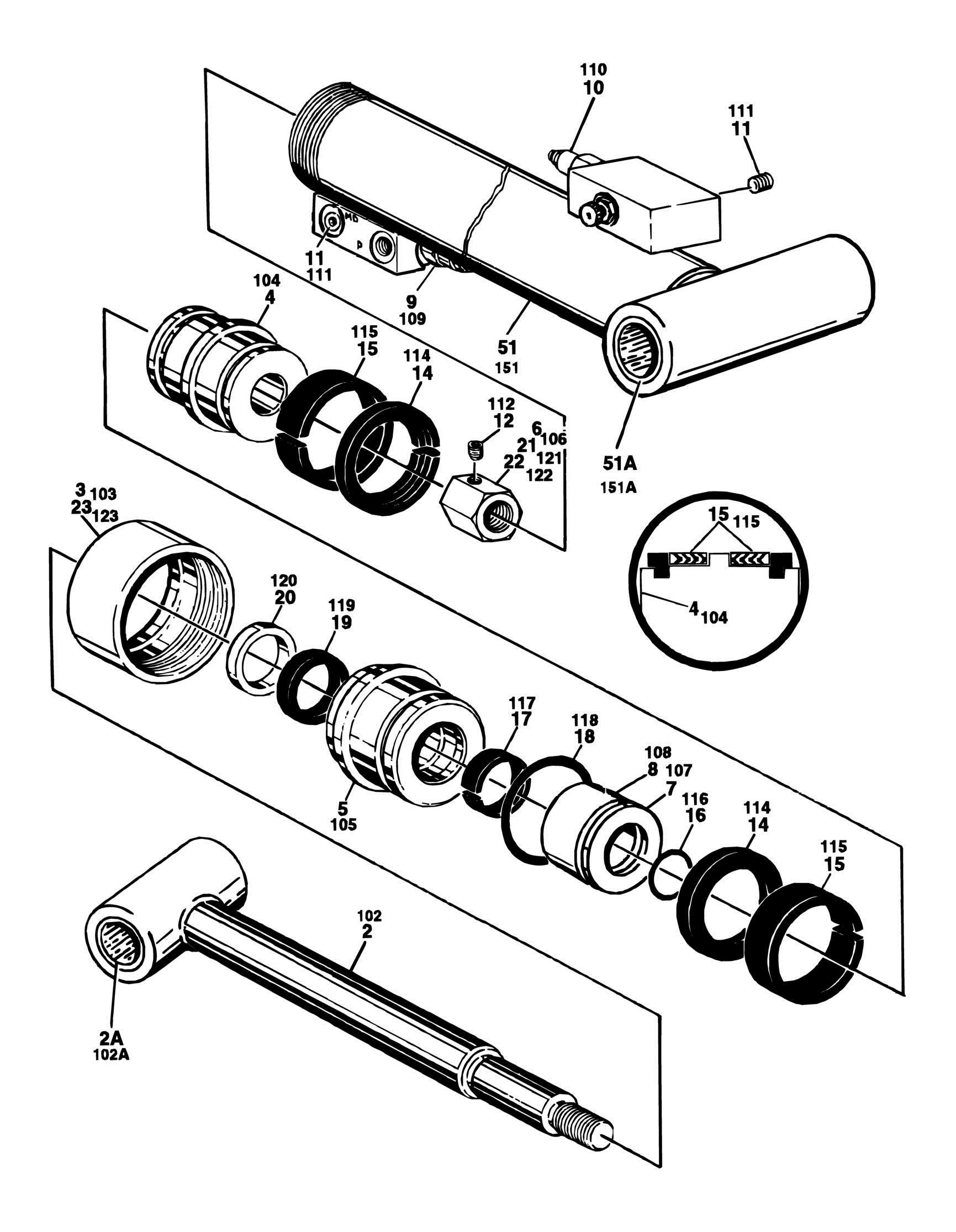

FIGURE 5-3. LOWER LIFT CYLINDER ASSEMBLIES

FIGURE 5-3. LOWER LIFT CYLINDER ASSEMBLIES

FIGURE 5-3. LOWER LIFT CYLINDER ASSEMBLIES

ITEM PART NUMBER QTY DESCRIPTION REV

Ref LOWER LIFT CYLINDER ASSEMBLY - MODEL 45IC

(STANDARD PARTS)

1683013 Ref Lower Lift Cylinder Assembly - Model 45ic (Prior to SN 33090) 1683521 Ref Lower Lift Cylinder Assembly - Model 45ic (SN 33090 to

Present)

1-A

1 Not Required 0 Not Required 2 1683016 1 Rod Weldment 2A 0961726 2 Bushing, Teflon 3 1120094 1 Retainer 4 3480102 1 Piston 5 1682323 1 Head 6 3300281 1 Nut, Hex 7 Not Required 0 Not Required 8 4566432 1 Spacer 9 4640634 1 Cartridge, Holding Valve 9 2900770 1 Seal Kit - 4640634 Valve 10 4640816 1 Cartridge, Holding Valve 10 2900770 1 Seal Kit - 4640816 Valve 11 2220885 2 Plug 12 3900170 1 Setscrew 3/8in-16NC x 3/8in 14 Kit 2 Ring, Lock 15 Kit 2 Seal, Piston 16 Kit 1 O-Ring 17 Kit 1 Ring, Wear 18 Kit 1 O-Ring 19 Kit 1 Seal, Rod 20 Kit 1 Wiper, Rod 21 0100011 AR Loctite #242 22 0100038 AR Primer, Locking 23 0100035 AR Loctite #222 51 Ref Barrel Weldment Options: 51 1683014 1 Barrel Weldment (Prior to SN 33090) 51 1683515 1 Barrel Weldment (SN 33090 to Present) 51A 0961726 2 Bushing, Teflon Ref LOWER LIFT CYLINDER ASSEMBLY - MODEL 40IC 1682855 Ref Lower Lift Cylinder Assembly - Model 45ic (Prior to SN 33090) C 1683518 Ref Lower Lift Cylinder Assembly - Model 40ic (SN 33090 to

Present)

1-A

102 1682858 1 Rod Weldment 102A 0961726 2 Bushing, Teflon 103 1120305 1 Retainer 104 3480113 1 Piston 105 1682209 1 Head 106 3300281 1 Nut, Hex 107 4740207 1 Washer 108 4565992 1 Spacer 109 4640634 1 Cartridge, Holding Valve 109 2900770 1 Seal Kit - 4640634 Valve 110 4640816 1 Cartridge, Holding Valve 110 2900770 1 Seal Kit - 4640816 Valve

ITEM PART NUMBER QTY DESCRIPTION

111 2220885 2 Plug 112 3900170 1 Setscrew 3/8in-16NC x 3/8in 114 Kit 2 Ring, Lock 115 Kit 2 Seal, Piston 116 Kit 1 O-Ring 117 Kit 1 Ring, Wear 118 Kit 1 O-Ring 118 Kit 1 Ring, Back-up 119 Kit 1 Seal, Rod 120 Kit 1 Wiper, Rod 121 0100011 AR Loctite #242 122 0100038 AR Primer, Locking 123 0100035 AR Loctite #222 151 Ref Barrel Weldment Options: 151 1682856 Barrel Weldment (Prior to SN 33090) 151 1683512 Barrel Weldment (SN 33090 to Present) 151A 0961726 2 Bushing, Teflon

REV
