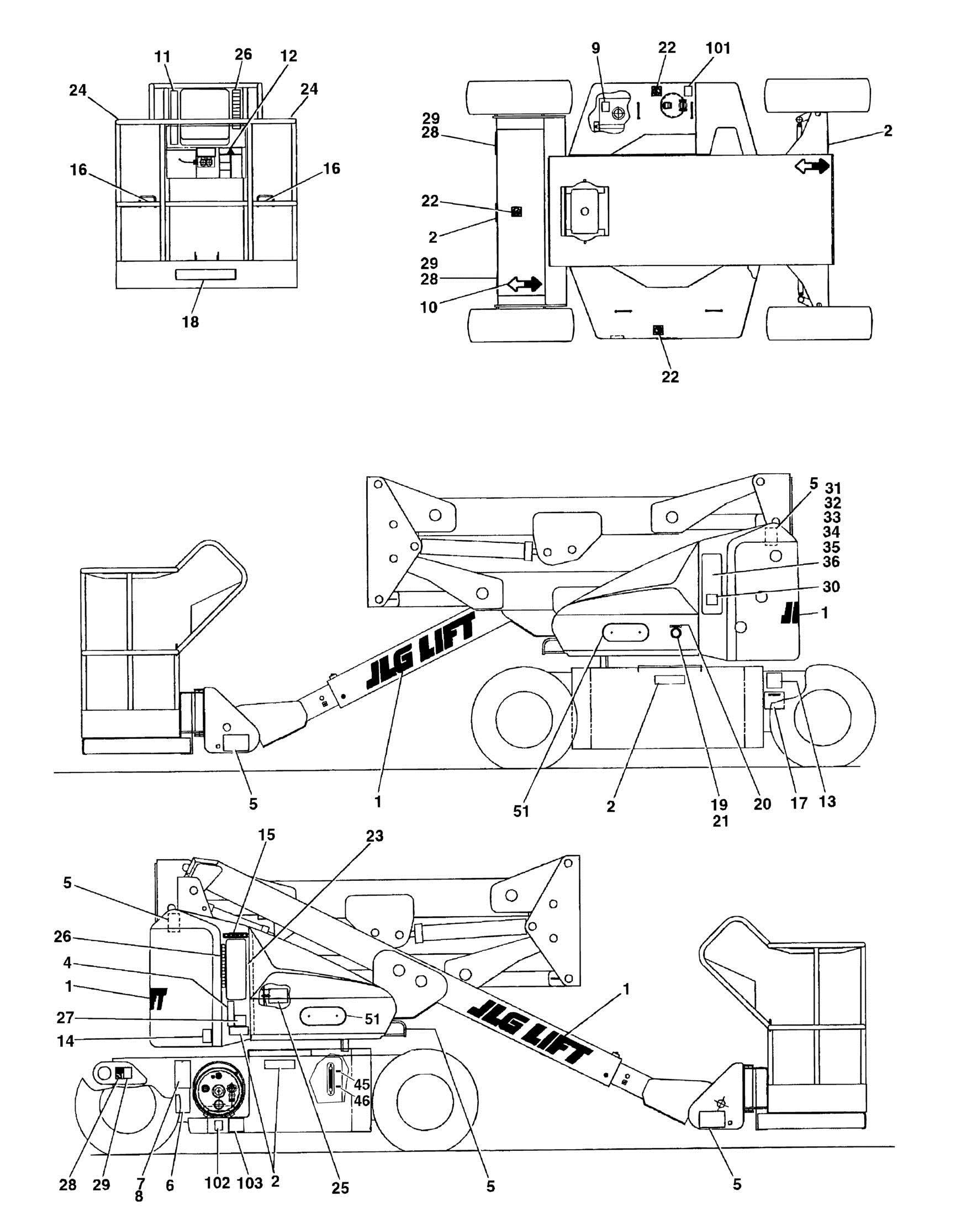

FIGURE 8-1. DECALS INSTALLATION - ANSI SPEC

FIGURE 8-1. DECALS INSTALLATION - ANSI SPEC

FIGURE 8-1. DECALS INSTALLATION - ANSI SPEC

ITEM PART NUMBER QTY

DESCRIPTION

1282497 Ref DECALS INSTALLATION (STANDARD PARTS) 0255997 Ref Decal Installation - 40ic 0255998 Ref Decal Installation - 45ic 1 1701892 3 Decal - JLG Lift 2 1702292 5 Decal - Electrocution 4 1702278 1 Decal - Crushing 5 1702284 5 Decal - Crushing Hazard 6 1700584 1 Decal - Patent 7 Not Available 1 Nameplate - Manufacturer's Serial Number 8 3820001 4 Rivet 9 1701504 1 Decal - Hydraulic Oil 10 1701642 2 Decal - Arrow 11 1702935 1 Decal - Warning/Danger 12 1702936 1 Decal - Warning/Daily CheckList 13 1702631 1 Decal - Bar Code 14 3251813 1 Decal - USA 15 1702688 2 Decal - 500Lbs Max Cap 16 1702612 2 Decal - Attach Lanyard 17 1702153 1 Decal - Inspection 18 1701645 1 Decal - 500Lbs Max Cap (Prior to SN 38576) 19 0961127 1 Bushing, Snap 20 3251243 1 Nameplate - 120V - 60Hz 21 0100010 AR Loctite 22 1701691 3 Decal - No Step 23 1702048 1 Decal - Manual Descent 24 1702294 2 Decal - No Hands 25 1702265 1 Decal - Synchronizing 26 1702937 2 Decal - Legend 27 1702282 1 Decal - Warning 28 1702300 4 Decal - Tie Down 29 1701500 4 Decal - Lift 30 1701640 1 Decal - Manual 31 1580008 1 Box, Manual Storage 32 1060279 1 Lanyard 33 3941003 1 Screw, Self-Tapping 34 3911408 1 Screw, Round Head 1/4in-20NC x 1/2in 35 4711400 1 Flatwasher 1/4in 36 3311401 1 Nut 1/4in-20NC 45 1701502 1 Decal - High (Hydraulic Oil Level) 46 1701503 1 Decal - Low (Hydraulic Oil Level) 51 Ref Decal - JLG Options: 51 1702934 2 Decal - JLG Model 40ic 51 1702932 2 Decal - JLG Model 45ic Ref DECAL INSTALLATION (OPTIONAL PARTS) 101 Ref Decal - Fuel 101 1701505 1 Diesel 101 1701542 1 Gas 102 1701543 1 Decal - LP Gas 103 1700818 1 Decal - LP Gas Liquid Withdrawal System

REV

G 5-B 5-B
