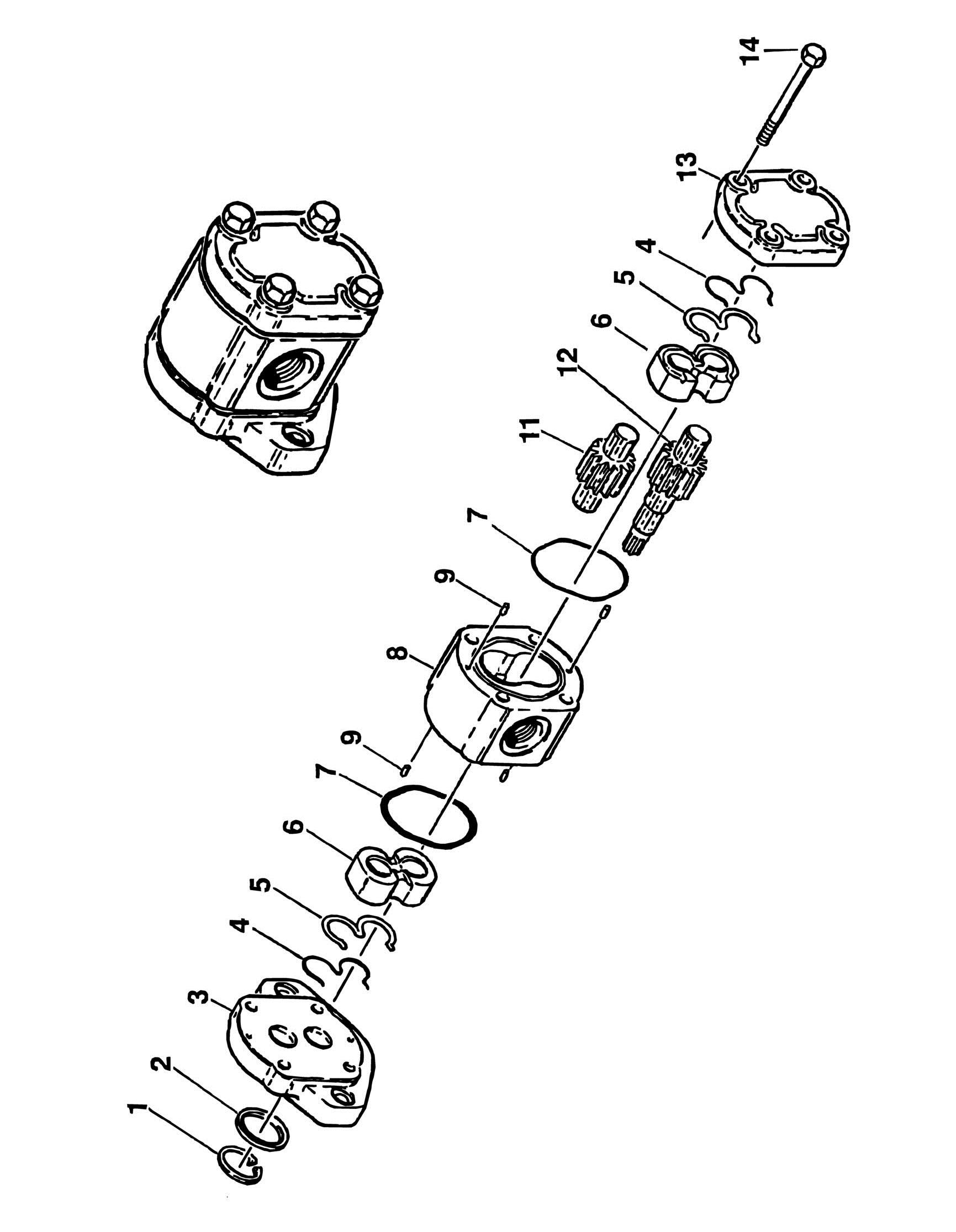

FIGURE 1-12. GEAR PUMP ASSEMBLY
FIGURE 1-12. GEAR PUMP ASSEMBLY
FIGURE 1-12. GEAR PUMP ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
3600199 Ref GEAR PUMP ASSEMBLY 1 7010955 1 Ring, Retaining 2 Kit 1 Seal, Shaft 3 7010956 1 Flange, Mounting 4 Kit 2 Ring, Backup 5 Kit 2 E-Seal 6 7010957 2 Bearing 7 Kit 2 O-Ring 8 7010958 1 Housing 9 7010959 4 Pin, Dowel 11 7010954 1 Gear, Idler 12 7010978 1 Gear, Drive 13 7010960 1 Cover, End 14 7010961 4 Bolt 7010953 1 Seal Kit (Includes Items 2, 4, 5 & 7)
