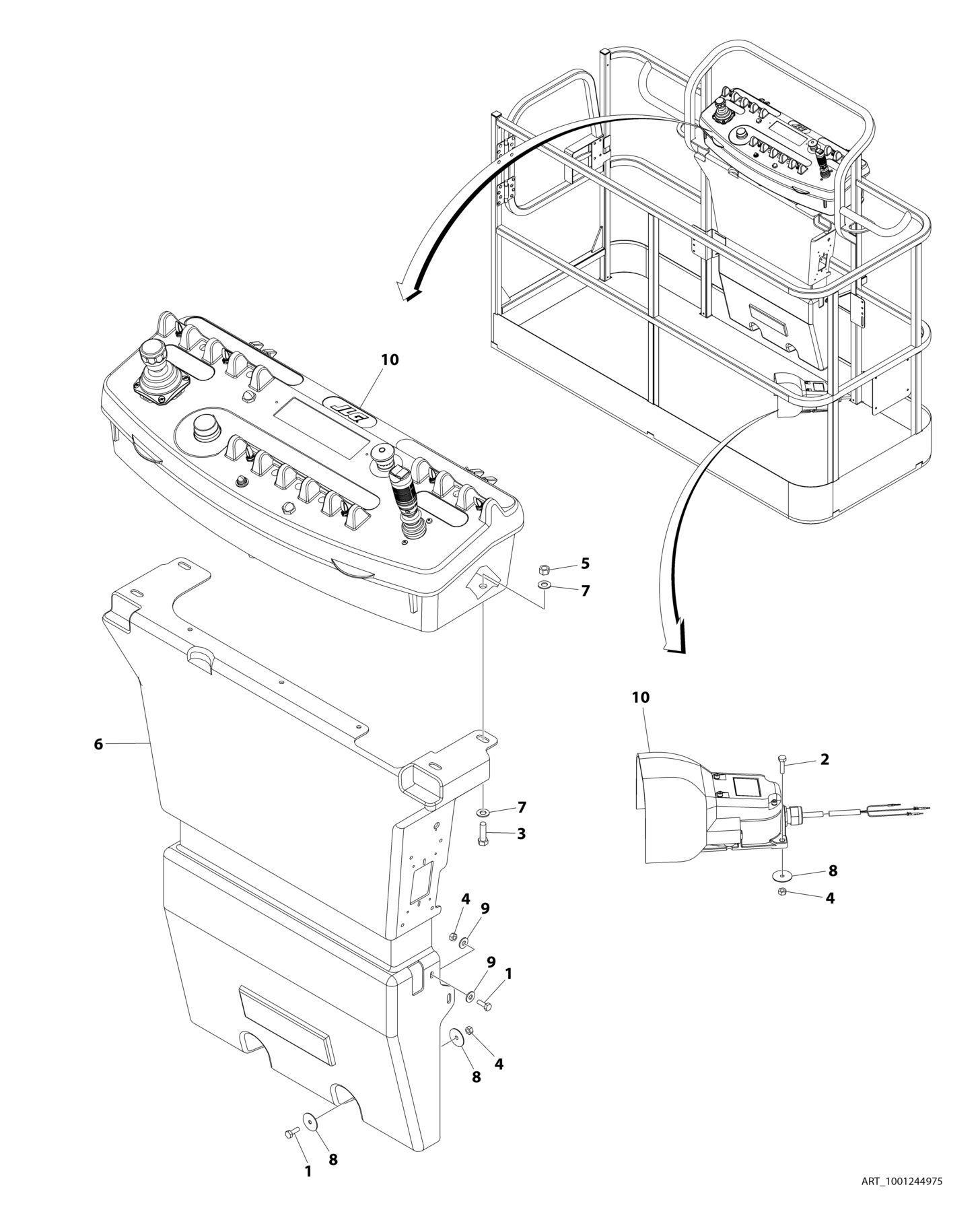

FIGURE 5-19. PLATFORM CONSOLE BOX INSTALLATION

from JLG 400S 460SJ PVC 2001 2007 Parts Manual (31215017) - PDF DOWNLOAD

FIGURE 5-16. PLATFORM ASSEMBLY - 36IN X 8FT (91.5CM X 2.44M) WITH TRI-ENTRY (1 GATE/2 DROP BARS

FIGURE 5-19. PLATFORM CONSOLE BOX INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001244975 Ref PLATFORM CONSOLE BOX INSTALLATION 1 0641406 4 Bolt, 1/4 x 3/4 2 0641408 3 Bolt, 1/4 x 1 3 0641610 4 Bolt, 3/8 x 1-1/4 4 3311405 7 Nut, Lock 1/4 5 3311605 4 Nut, Lock 3/8 6 3380434 1 Panel, Decal Mount 7 4751600 8 Washer, 3/8 8 4740362 7 Washer, 1/4 9 4751400 4 Washer, 1/4 10 1001244976 1 Platform Console Box Assembly (See Separate Breakdown in this Section)
