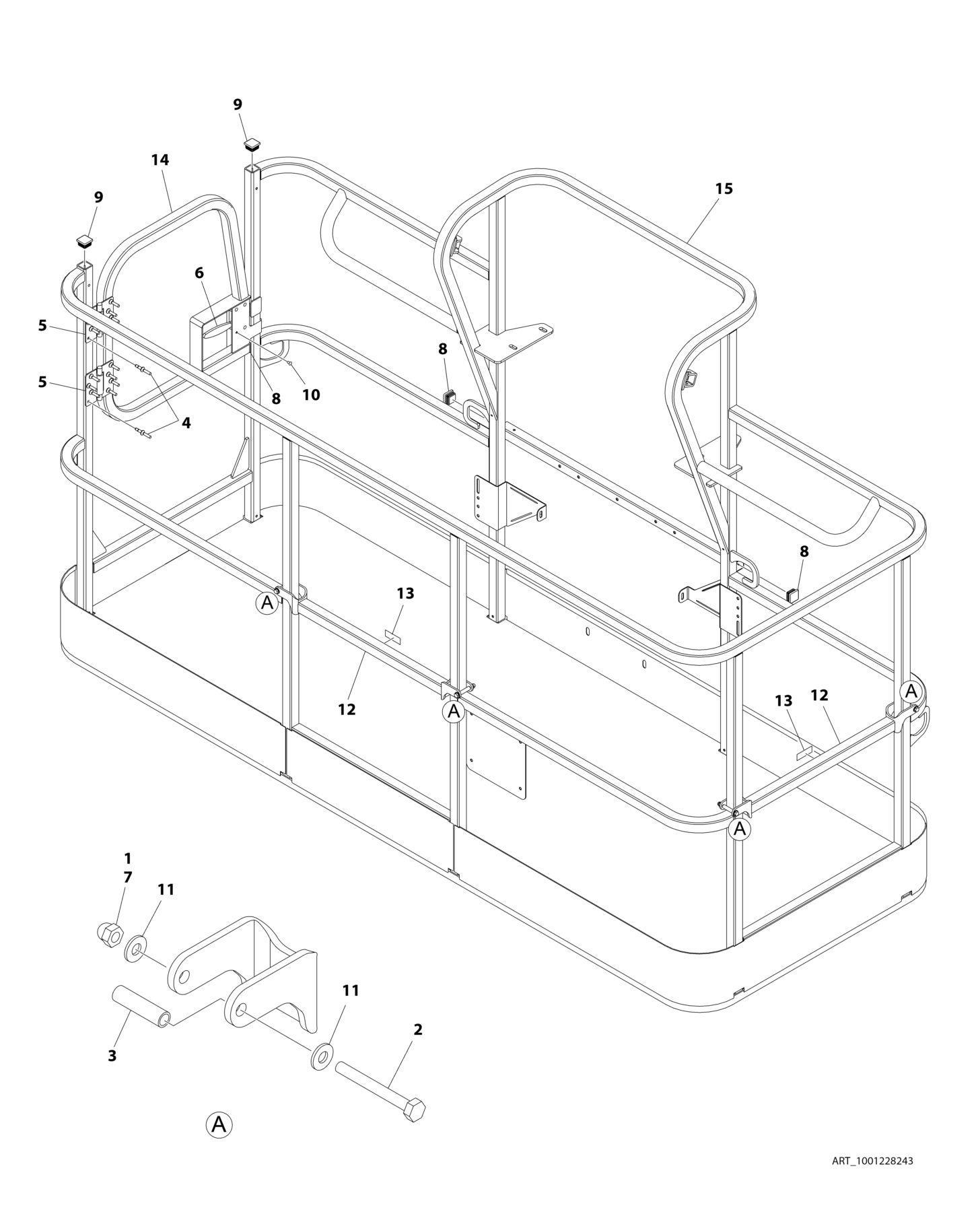

FIGURE 5-16. PLATFORM ASSEMBLY - 36IN X 8FT (91.5CM X 2.44M) WITH TRI-ENTRY (1 GATE/2 DROP BARS
ITEM PART NUMBER QTY
DESCRIPTION
1001228243 Ref PLATFORM ASSEMBLY - 36IN X 8FT (91.5CM X 2.44M) WITH TRI-ENTRY Ref Note: Platform and Mesh must be ordered separately for Platforms with Mesh. See SPECIAL OPTIONS SECTION for Mesh Installations. 1 0100011 AR Compound, Locking 2 0641418 4 Bolt 1/4 x 2-1/4 3 0961845 4 Bushing 4 2080040 16 Fastener, Huck 5 2600281 2 Hinge, Self-Closing 6 2940074 1 Latch 7 3300151 4 Nut 1/4 8 3520072 3 Cap, Plug 9 3520198 2 Cap, Plug 10 3820020 4 Rivet 11 4711400 8 Washer 1/4 12 1001138494 2 Bar, Drop 13 1001140429 2 Decal - Drop Bar 14 1001144629 1 Gate, Weldment 15 See Note 1 Platform (Note: Not Available - Purchase Platform Assembly)
REV
A
