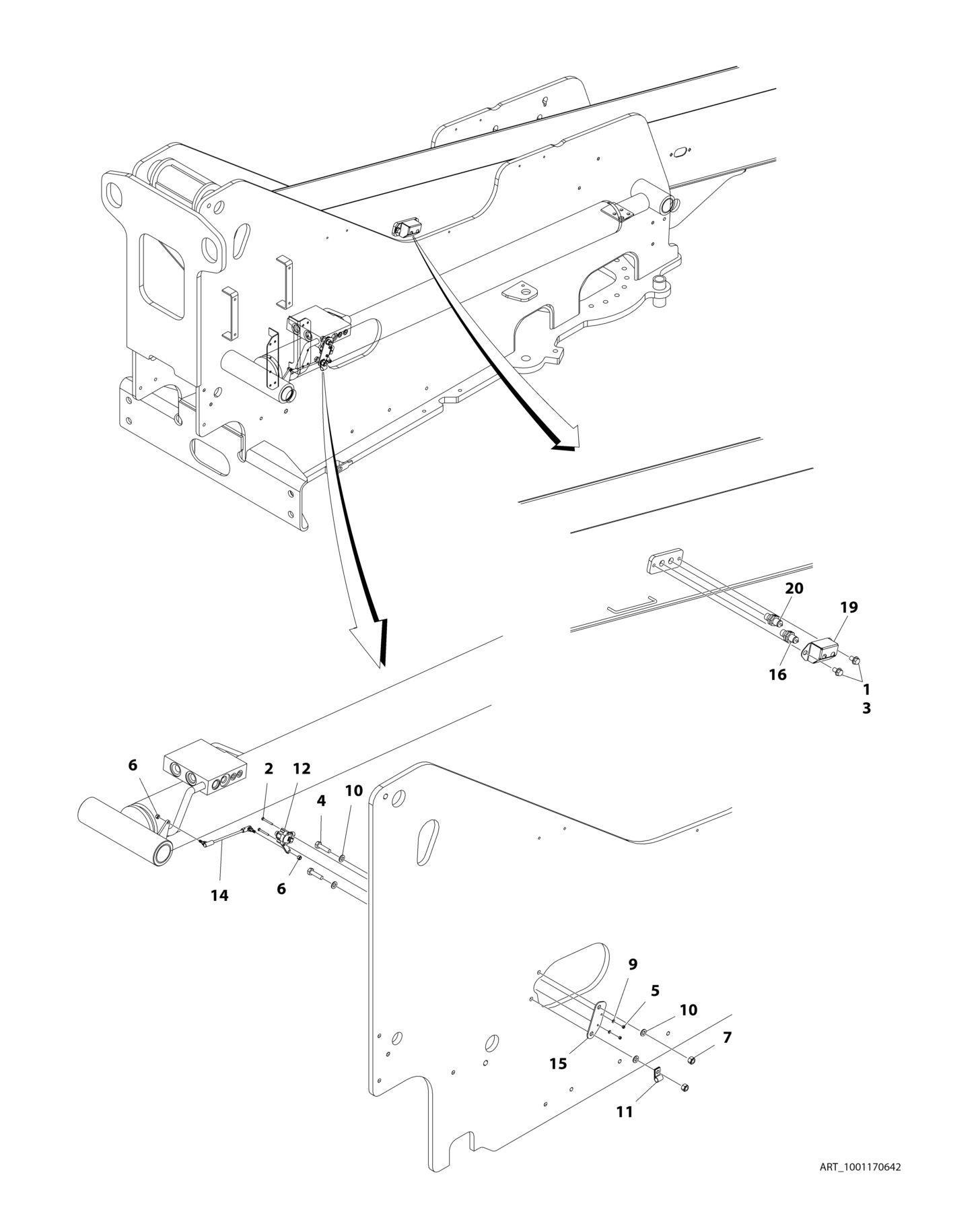

FIGURE 4-14. TRANSPORT SWITCHES INSTALLATION

from JLG 400S 460SJ PVC 2001 2007 Parts Manual (31215017) - PDF DOWNLOAD

FIGURE 5-25. LIGHT PANEL INSTALLATION - 460SJ

FIGURE 4-14. TRANSPORT SWITCHES INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001170642 Ref TRANSPORT SWITCHES INSTALLATION 1 0100011 AR Compound, Locking 2 0760415 2 Bolt M4 x 35 3 5251008 2 Bolt M10 x 16 4 0761016 2 Bolt M10 x 40 5 3290405 2 Nut M4 x 0.7 6 3290605 2 Nut M6 x 1 7 3291005 2 Nut M10 x 1.5 9 4811400 2 Washer M4 10 4812000 4 Washer M10 11 8406110 1 Clip 12 1001118971 1 Angle, Sensor 14 1001170564 1 Link, Sensor 15 1001170565 1 Bracket 16 1001170847 1 Sensor, Proximity 16 4460536 1 Connector - 3 Position 16 4460464 3 Pin, Male 19 1001204715 1 Bracket, Switch Cover 20 1001182570 1 Sensor, Proximity 20 4460539 1 Connector - 3 Position 20 4460465 3 Socket, Female

FIGURE 4-14. TRANSPORT SWITCHES INSTALLATION

Next Article

FIGURE 5-25. LIGHT PANEL INSTALLATION - 460SJ

FIGURE 4-14. TRANSPORT SWITCHES INSTALLATION

FIGURE 4-14. TRANSPORT SWITCHES INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

REV
