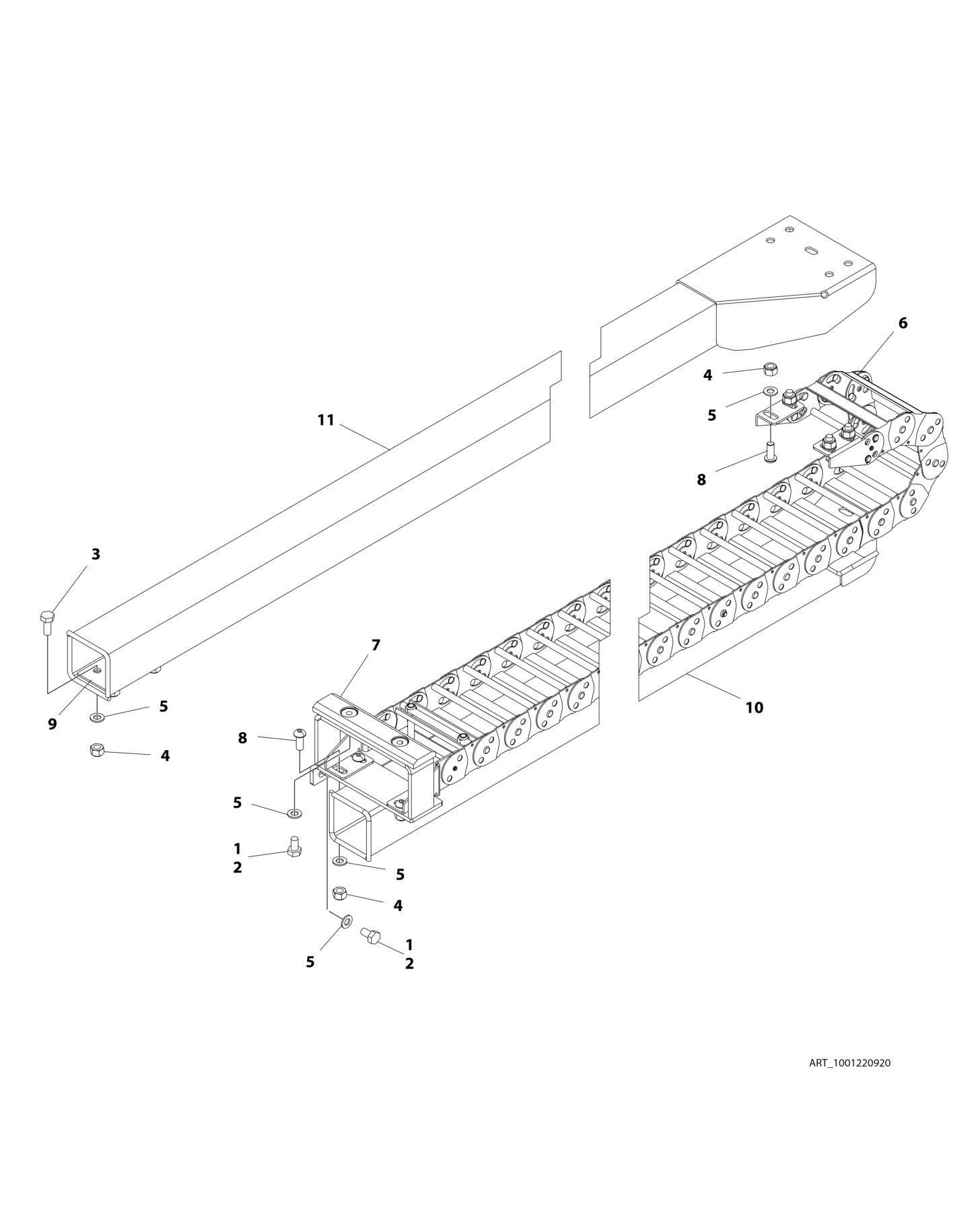

FIGURE 4-12. POWER TRACK INSTALLATION

from JLG 400S 460SJ PVC 2001 2007 Parts Manual (31215017) - PDF DOWNLOAD

FIGURE 5-25. LIGHT PANEL INSTALLATION - 460SJ

FIGURE 4-12. POWER TRACK INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001220920 Ref POWER TRACK INSTALLATION 1 0100011 AR Compound, Locking 2 0761009 10 Bolt M10 x 18 3 0761012 4 Bolt M10 x 25 4 3291005 12 Nut M10 5 4812000 22 Washer M10 6 1001224888 1 Power Track 6 70002011 1 Repair Section without Clamp - 10 Links 6 70005106 1 Repair Section with Clamp - 10 Links 6 70005107 1 Feet, Mounting (Includes 1 each Left and Right Mounting Feet) 7 1001169611 1 Pad, Wear 8 1001173763 8 Screw M10 x 25 9 1001176899 1 Plate, Support 10 1001220921 1 Tube, Carrier 11 1001220924 1 Tube, Push

FIGURE 4-12. POWER TRACK INSTALLATION

Next Article

FIGURE 5-25. LIGHT PANEL INSTALLATION - 460SJ

FIGURE 4-12. POWER TRACK INSTALLATION

FIGURE 4-12. POWER TRACK INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

REV
