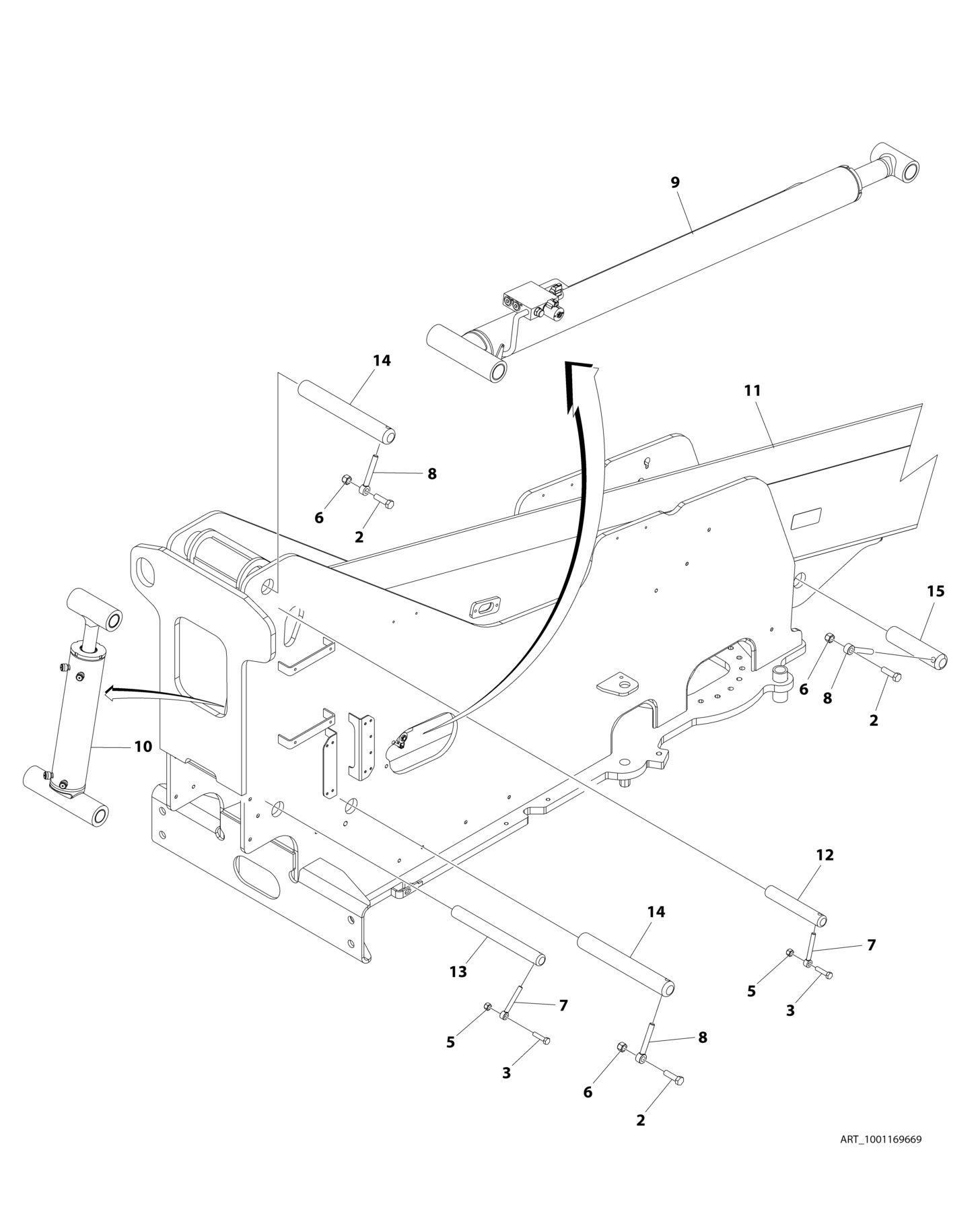

FIGURE 4-2. BOOM AND CYLINDERS INSTALLATION - 460SJ (USA BUILT MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
1001169669 Ref BOOM AND CYLINDERS INSTALLATION 2 0701619 3 Bolt M16 x 55 3 0761218 2 Bolt M12 x 50 5 3291205 2 Nut, Lock M12 x 1.75 6 3291605 3 Nut, Lock M16 x 2 7 3841203 2 Keeper, Pin 8 3841258 3 Keeper, Pin 9 1001228092 1 Lift Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 10 1001163385 1 Master Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 11 1001163482 1 Main Boom Assembly (See Separate Breakdown in this Section) 12 1001168843 1 Pin 13 1001168844 1 Pin 14 1001168845 2 Pin 15 1001168854 1 Pin
REV
H
