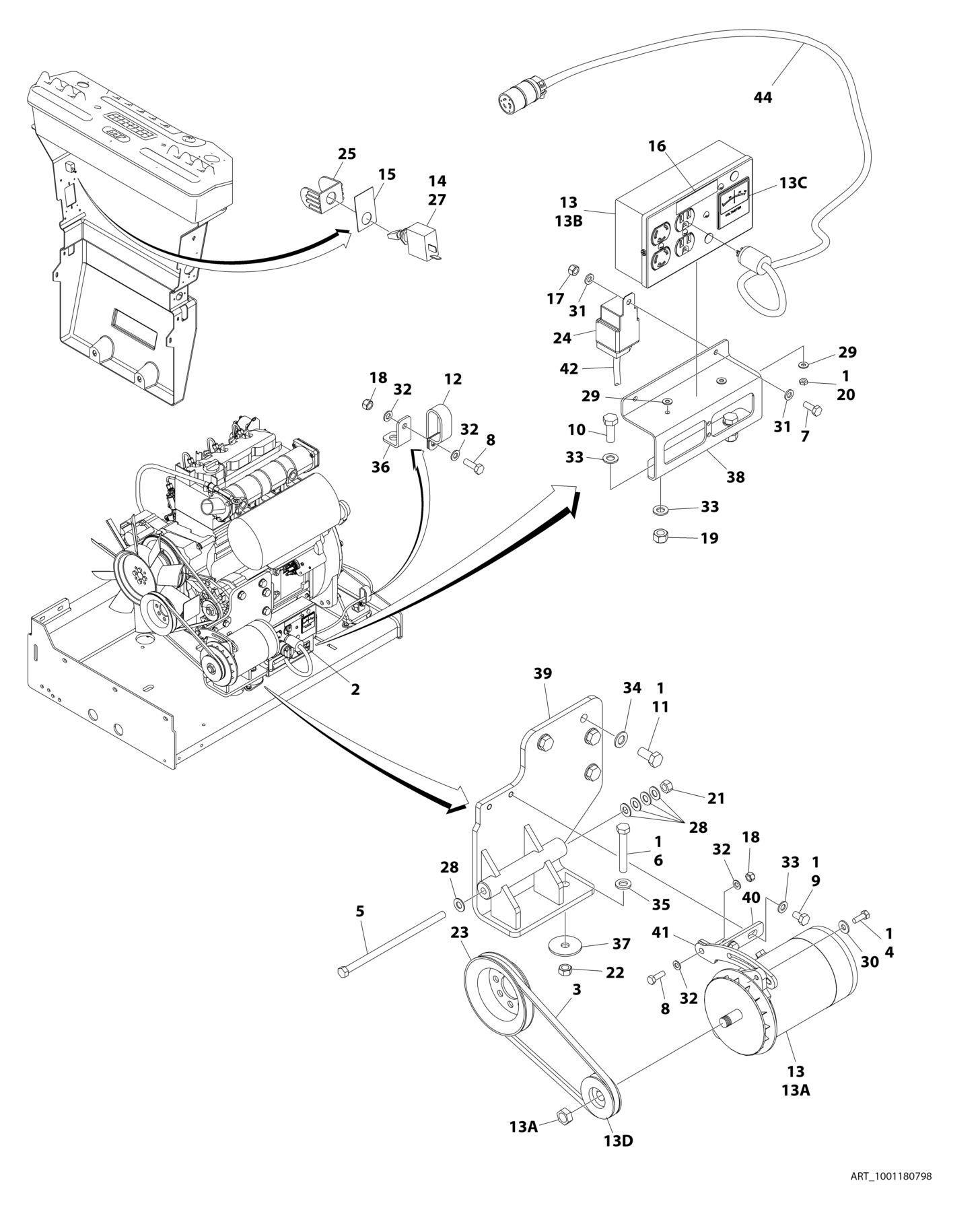

FIGURE 3-42. GENERATOR INSTALLATION - 2500W/60HZ (DEUTZ D2011 ENGINE
ITEM PART NUMBER QTY
DESCRIPTION
1001180798 Ref GENERATOR INSTALLATION - 2500W/60HZ (DEUTZ D2011 ENGINE) 1 0100011 AR Compound, Locking 2 0100048 AR Grease, Dielectric 3 0480122 1 Belt 4 0641507 1 Bolt 5/16 x 7/8 5 0641772 1 Bolt 7/16 x 9 6 0711224 1 Bolt M12 x 80 Grade 10.9 7 0760608 1 Bolt M6 x 16 8 0760812 2 Bolt M8 x 25 9 0761009 2 Bolt M10 x 18 10 0761014 2 Bolt M10 x 30 11 0771414 4 Bolt M14 x 30 Grade 10.9 12 1321716 1 Clamp 13 2460055 1 Generator and Control Box Assembly 13A 7012558 1 Generator See Note Ref Note: Replacement Generators come standard with p/n 3580134 pulley. This pulley may not be correct for all applications. Refer to pulley options below. 13A 7026199 1 Armature with Slip Rings 13A 7012513 3 Cap, Brush Holder 13A 7020108 4 Brush 13A 7020109 4 Holder, Brush 13A 7012514 1 Fan 13A 7020110 1 Bell, Front 13A 7020111 1 Bell, Rear 13A 7020190 1 Bearing 13B 7019680 1 Box, Control 13B 4460190 1 Receptacle, Standard 13B 4460027 1 Receptacle, Twistlock 13B 4360542 1 Breaker, Circuit 13B 3520028 1 Plug, Hole 13B 4460961 1 Connector - 4 Position 13B 4460705 4 Pin, Male 13B 4460321 1 Connector - 4 Position (Note: Mate to p/n 4460961 Purchase Separately) 13B 4460268 3 Socket, Female (Note: Mate to p/n 4460705 Purchase Separately) 13C 2420203 1 Voltmeter 13D 3580276 1 Pulley 13D 7027887 1 Key, Woodruff 14 2820031 AR Heat Shrink 15 See Note 1 Nameplate (Note: Not Available for Purchase) 16 3251243 1 Nameplate 120V-60Hz 17 3290605 1 Nut M6 18 3290805 2 Nut M8 19 3291005 2 Nut M10 20 3311001 2 Nut #10 21 3311705 1 Nut 7/16 22 3331211 1 Nut M12 23 3580158 1 Pulley
REV
B
ITEM PART NUMBER QTY DESCRIPTION
24 3740080 1 Relay 25 4060802 1 Guard, Switch 26 4240099 AR Tie-Strap (Not Shown) 27 4360336 1 Switch, Toggle 28 4711700 5 Washer 7/16 29 4751000 4 Washer #10 30 4751500 1 Washer 5/16 31 4811700 2 Washer M6 32 4811900 4 Washer M8 33 4812000 6 Washer M10 34 4812200 4 Washer M14 35 5241200 1 Washer M12 Hardened 36 1001148641 1 Bracket 37 1001168018 1 Washer, Snubbing 38 1001183477 1 Support 39 1001184637 1 Mount, Engine 40 1001184644 1 Support 41 1001184645 1 Bracket 42 1001187522 1 Harness, Generator (See Separate Breakdown in ELECTRICAL SECTION) 43 1001188731 1 Wiring Diagram (Not Shown) 43 4922641 1 Harness, On/Off Switch (Not Shown - Located at Platform) 44 1001182296 1 Harness, Inverter 44 1060494 10 ft/3.5m Cable, Electrical - 12/3 44 4460134 1 Receptacle, Female 44 4460138 1 Plug, Male
