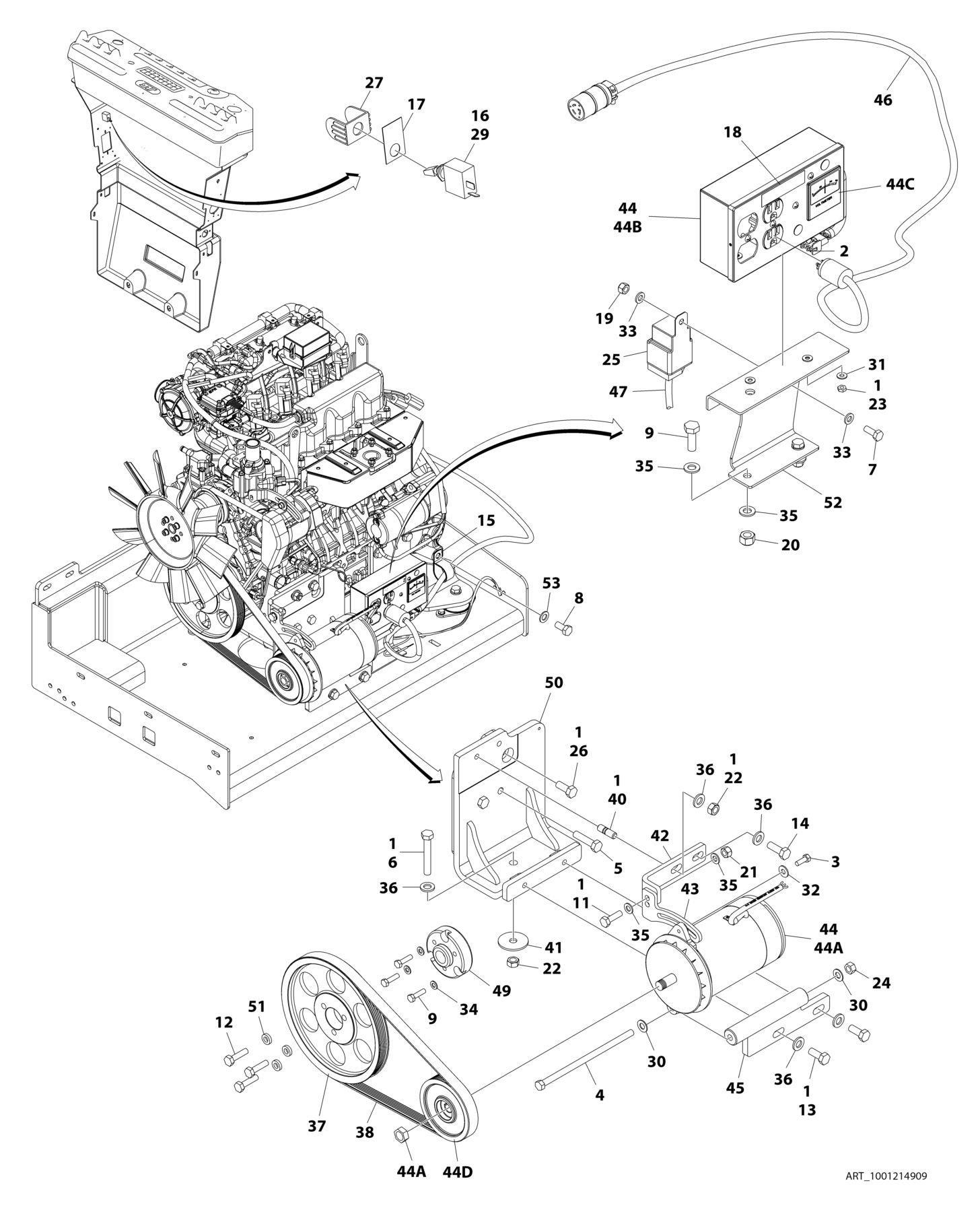

FIGURE 3-44. GENERATOR INSTALLATION - 2500W/60HZ (KUBOTA ENGINE
ITEM PART NUMBER QTY DESCRIPTION REV
1001214909 Ref GENERATOR INSTALLATION - 2500W/60Hz (KUBOTA ENGINE) E 1 0100011 AR Compound, Locking 2 0100048 AR Grease, Dielectric 3 0641507 1 Bolt 5/16 x 7/8 4 0641772 1 Bolt 7/16 x 9 5 1001217344 2 Bolt M12 x 50 6 0711224 AR Bolt M12 x 80 Grade 10.9 6 0701224 AR Bolt M12 x 80 7 0760608 1 Bolt M6 x 16 8 1001217345 1 Bolt M14 x 30 9 0760814 5 Bolt M8 x 30 11 0761015 1 Bolt M10 x 35 12 0761016 3 Bolt M10 x 40 13 0761214 2 Bolt M12 x 30 14 0761215 1 Bolt M12 x 35 15 84521061 1 Clamp 16 2820031 AR Heat Shrink 17 See Note 1 Nameplate (Note: Not Available for Purchase) 18 3251243 1 Nameplate 120V-60Hz 19 3290605 1 Nut M6 20 3290805 2 Nut M8 21 3291005 1 Nut M10 22 3291201 2 Nut M12 23 3311001 2 Nut #10 24 3311705 1 Nut 7/16 25 3740080 1 Relay 26 1001217342 1 Bolt M12 x 30 27 4060802 1 Guard, Switch 28 4240099 AR Tie-Strap (Not Shown) 29 4360336 1 Switch, Toggle 30 4711700 2 Washer 7/16 31 4751000 4 Washer #10 32 4751500 1 Washer 5/16 33 4811700 2 Washer M6 34 4811900 5 Washer M8 35 4812000 4 Washer M10 36 5241200 1 Washer M12 Hardened 37 1001147233 1 Pulley 38 1001148138 1 Belt 40 1001155041 1 Stud 41 1001168018 1 Washer, Snubbing 42 1001179836 1 Mount, Upper Generator 43 1001179837 1 Arm Adjustment 44 1001180001 1 Generator 44A 7026199 1 Armature with Slip Rings 44A 7012513 3 Cap, Brush Holder 44A 7020108 4 Brush 44A 7020109 4 Holder, Brush 44A 7012514 1 Fan 44A 7020110 1 Bell, Front
ITEM PART NUMBER QTY DESCRIPTION
44A 7020111 1 Bell, Rear 44A 7020190 1 Bearing 44B 7019680 1 Box, Control 44B 4460190 1 Receptacle, Standard 44B 4460027 1 Receptacle, Twistlock 44B 4360542 1 Breaker, Circuit 44B 3520028 1 Plug, Hole 44B 4460961 1 Connector - 4 Position 44B 4460705 4 Pin, Male 44B 4460321 1 Connector - 4 Position (Note: Mate to p/n 4460961 Purchase Separately) 44B 4460268 3 Socket, Female (Note: Mate to p/n 4460705 Purchase Separately) 44C 2420203 1 Voltmeter 44D 1001179893 1 Pulley 44D 7027887 1 Key, Woodruff 45 1001181243 1 Mount, Lower Generator 46 1001182296 1 Harness, Inverter 46 1060494 10 ft/ 3.5m Cable, Electrical - 12/3 46 4460134 1 Receptacle, Female 46 4460138 1 Plug, Male 47 1001187522 1 Harness, Generator (See Separate Breakdown in ELECTRICAL SECTION) 48 1001188731 1 Wiring Diagram (Not Shown) 48 4922641 1 Harness, On/Off Switch (Not Shown - Located at Platform) 49 1001213029 1 Adapter, Pulley 50 1001214546 1 Support 51 1001216805 1 Spacer 52 1001216840 1 Support 53 4812200 1 Washer M14
