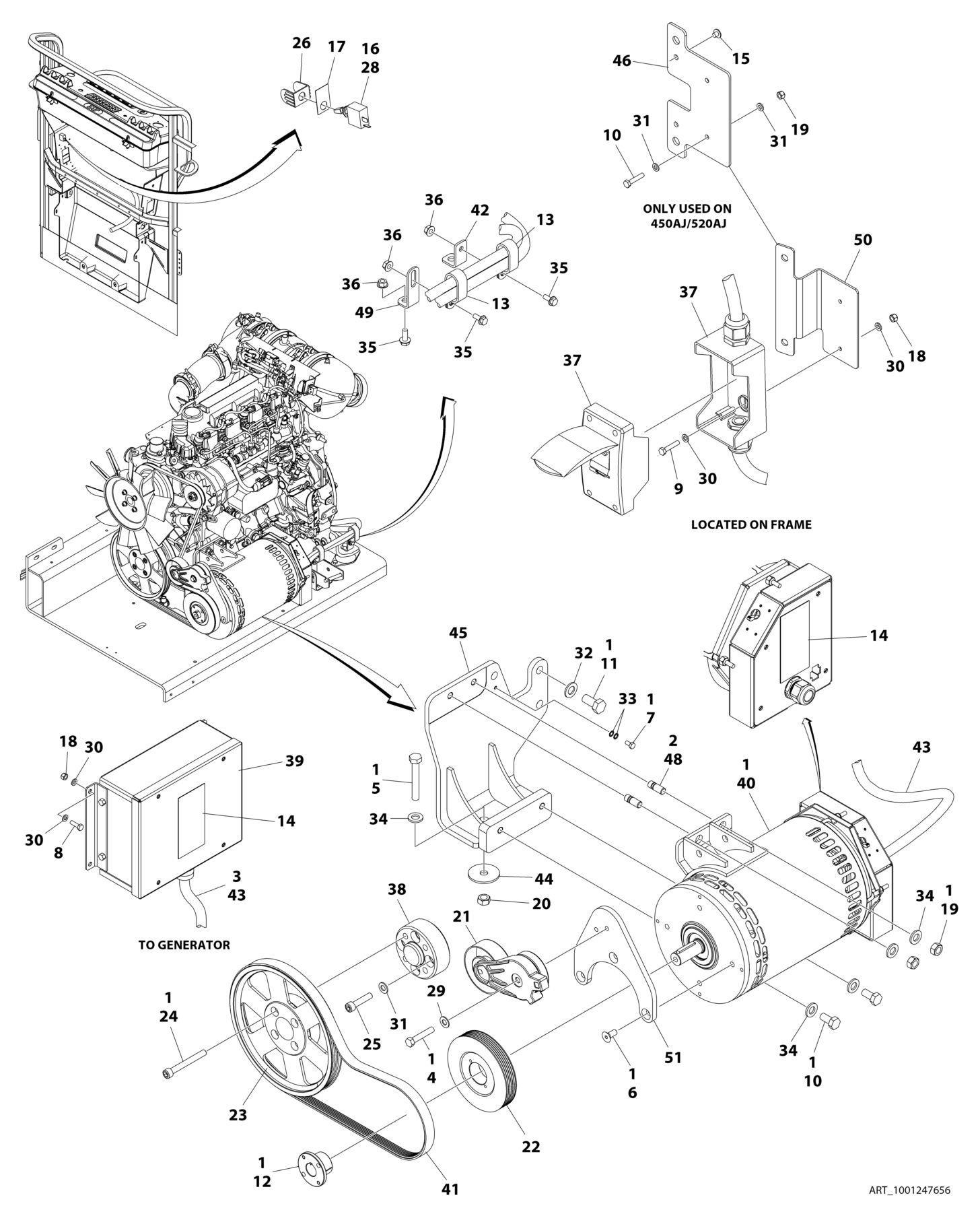

FIGURE 3-48. GENERATOR INSTALLATION - 4000W/50HZ (DEUTZ STAGE V ENGINE
ITEM PART NUMBER QTY
DESCRIPTION
1001247656 Ref GENERATOR INSTALLATION - 4000W/50HZ (DEUTZ (STAGE V) ENGINE) 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0100048 AR Grease, Dielectric 4 0641616 1 Bolt 3/8 x 2 5 0711224 1 Bolt M12 x 80 6 0741607 3 Screw 3/8 x 7/8 7 0760606 1 Bolt M6 x 12 8 0760610 4 Bolt M6 x 20 9 0760614 2 Screw M6 x 30 10 0761212 2 Bolt M12 x 25 11 0771414 3 Bolt M14 x 30 12 0962520 1 Bushing 13 1321716 2 Clamp 14 1705489 2 Decal - Hazardous Voltage 15 2080040 2 Fastener, Huck 16 2820031 0.33 ft /0.10m Heat Shrink 17 3251102 1 Nameplate, Generator 18 3290605 6 Nut M6 19 3291201 2 Nut M12 20 3331211 1 Nut M12 21 3580317 1 Pulley 22 3580319 1 Pulley 23 1001260432 1 Pulley 24 1001261085 4 Capscrew M10 x 85 25 1001261045 4 Capscrew M10 x 45 26 4060802 1 Guard, Switch 27 4240099 AR Tie-Strap (Not Shown) 28 4360336 1 Switch, Toggle 29 4711600 1 Washer 3/8 30 4811700 12 Washer M6 31 4812000 4 Washer M14 32 4812200 3 Washer M14 33 4871700 2 Washer M6 34 5241200 5 Washer M12 Hardened 35 5250810 3 Bolt M8 x 20 36 5260800 3 Nut M8 37 1001096070 1 Breaker Box Kit (50Hz) (See Separate Breakdown in ELECTRICAL SECTION) 38 1001135679 1 Adapter 39 1001138566 1 Box, Control 40 1001140347 1 Generator, 4000W/ 50HZ - Deutz Engine 40 70003709 1 Ring, Retaining (External) 40 70003708 1 Ring, Retaining (Internal) 40 70001966 1 Bearing 40 70004092 1 Endbell (Shaft End) 40 70004099 1 Key 40 70004676 1 Rotor
REV
D
ITEM PART NUMBER QTY DESCRIPTION
40 70004686 1 Stator 40 70004678 1 Endbell (Rear) 40 70004679 1 Cover, Endbell (Rear) 40 70004680 1 Enclosure, Wiring 40 70004681 1 Cover, Enclosure 40 70004682 1 Switch, Reset (Located on Enclosure Cover) 40 70004683 1 Connector, Strain Relief (Located on Enclosure Cover) 41 1001148059 1 Belt, Generator 42 1001148641 1 Bracket 43 1001152532 1 Harness, Generator (See Separate Breakdown in ELECTRICAL SECTION) 44 1001168018 1 Washer, Snubbing 45 1001168207 1 Support 46 1001174158 1 Mount 47 1001174675 1 Wiring Diagram (Not Shown) 48 1001196382 2 Stud 49 1001223122 1 Support 50 1001230784 1 Bracket 51 1001248190 1 Support Ref ELECTRICAL DIAGRAM COMPONENTS 101 4922641 1 Generator Switch Harness (Not Shown)
