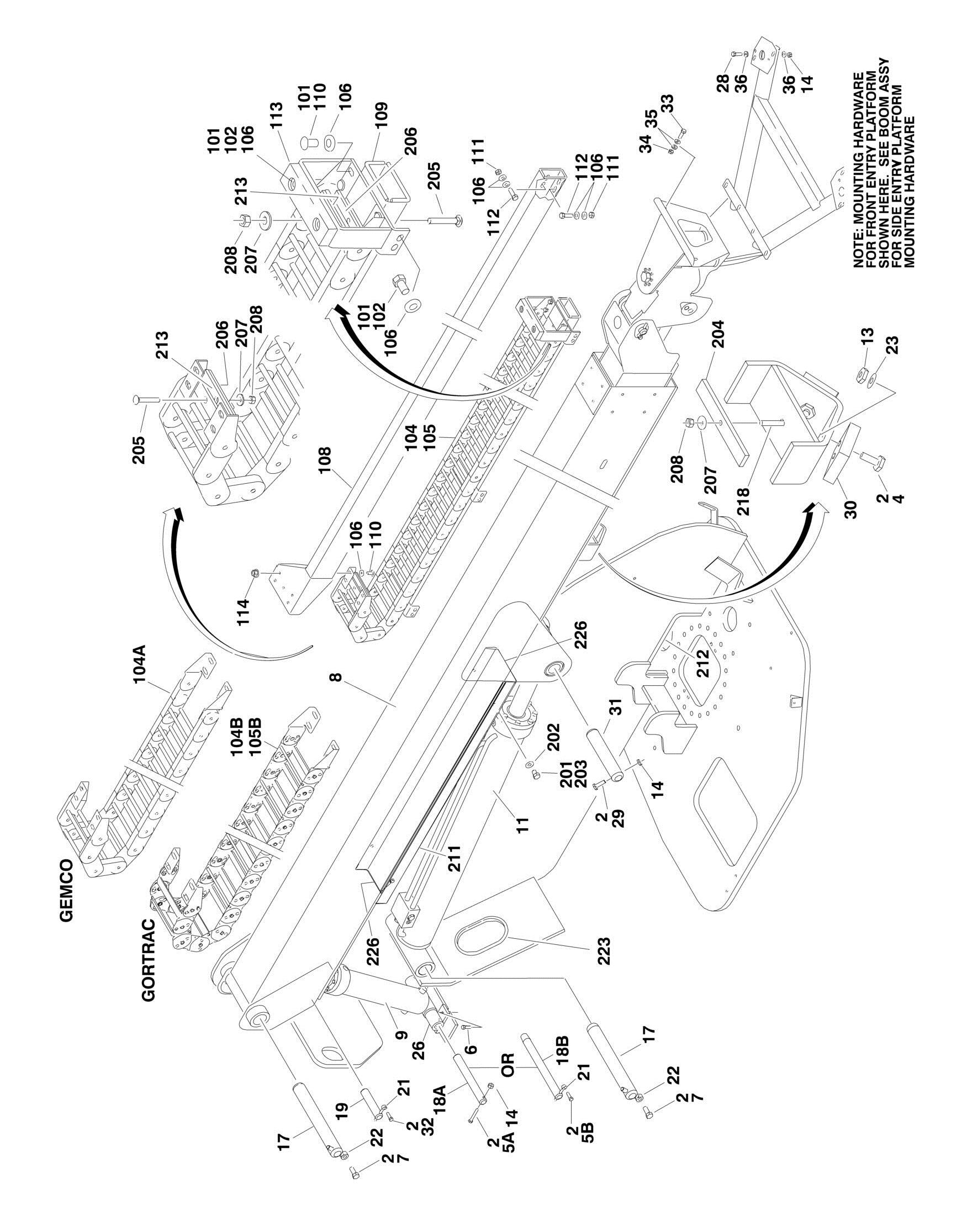

FIGURE 3-1. BOOM INSTALLATIONS
FIGURE 3-1. BOOM INSTALLATIONS
FIGURE 3-1. BOOM INSTALLATIONS
ITEM PART NUMBER QTY DESCRIPTION REV
Ref BOOM AND CYLINDERS INSTALLATION 0259135 Ref Boom and Cylinders Installation 400S (Front Entry Platform) H 0272591 Ref Boom and Cylinders Installation 400S (Side Entry Platform)
(Prior to SN 0300074573)
A 0273065 Ref Boom and Cylinders Installation 400S (Side Entry Platform)
(SN 0300074573 through 0300096000)
A 0259136 Ref Boom and Cylinders Installation 460SJ (Front Entry Platform) F 0272592 Ref Boom and Cylinders Installation 460SJ (Side Entry Platform)
(Prior to SN 0300074573)
A 0272999 Ref Boom and Cylinders Installation 460SJ (Side Entry Platform)
(SN 0300074573 through 0300096000)
A 2 0100011 AR Compound, Locking 4 0641610 4 Bolt 3/8in-16NC x 1-1/4in 5 Ref Bolt Options: 5A 0641620 1 Bolt 3/8in-16NC x 2-1/2in (Prior to SN 0300074573) 5B 0641608 1 Bolt 3/8in-16NC x 1in (SN 0300074573 through 0300096000) 6 0641814 4 Bolt 1/2in-13NC x 1-3/4in Only (Prior to SN 0300074573) 7 0642012 2 Bolt 5/8in-11NC x 1-1/2in 8 Ref Boom Assembly Options: 8 Ref Boom Assembly 400S (See BOOM ASSEMBLY - 400S for Breakdown) 8 0801223 1 Front Entry Platform 8 0801359 1 Side Entry Platform 8 Ref Boom Assembly 460SJ (See BOOM ASSEMBLY - 460SJ for Breakdown) 8 0801186 1 Front Entry Platform 8 0801360 1 Side Entry Platform 9 Ref Master Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 9 1683951 1 Master Cylinder Assembly (Prior to SN 0300074573) 9 1684284 NLA Master Cylinder Assembly (Use p/n 1001140587) (SN
0300074573 through 0300096000)
11 1683776 1 Lift Cylinder Assembly (See CYLINDER SECTION for Breakdown) 13 3311601 4 Nut 3/8in-16NC 14 3311605 AR Locknut 3/8in-16NC 17 3422564 2 Pin, Pivot 18 Ref Pin, Pivot Options: 18A 3422690 1 Pin, Pivot (Prior to SN 0300074573) 18B 3422566 1 Pin, Pivot (SN 0300074573 through 0300096000) 19 3422561 1 Pin, Pivot 21 3841143 AR Keeper, Pin - 3/8in 22 3841258 2 Keeper, Pin - 5/8in 23 4711600 8 Flatwasher 3/8in Thin 26 4846128 2 Cylinder Mount Weldment Only (Prior to SN 0300074573) 28 0681610 6 Bolt 3/8in-16NC x 1-1/4in (Grade 8) (Front Entry Platform) 29 0681632 1 Bolt 3/8in-16NC x 4in (Grade 8) 30 3340853 2 Pad, Boom Rest 31 3422851 1 Pin, Boom Lift 32 0641605 1 Bolt 3/8in-16NC x 5/8in 33 0641820 2 Bolt 1/2in-13NC x 2-1/2in (Front Entry Platform) 34 3311805 2 Locknut 1/2in-13NC (Front Entry Platform)
ITEM PART NUMBER QTY
DESCRIPTION
35 4751800 4 Flatwasher 1/2in Regular (Front Entry Platform) 36 4751600 12 Flatwasher 3/8in Regular (Front Entry Platform) Ref POWERTRACK INSTALLATION 0270213 Ref Standard Powertrack 0272897 Ref Inverted Powertrack
REV
C B
101 0100011 AR Compound, Locking 102 0641605 10 Bolt 3/8in-16NC x 5/8in 104 Ref Power Track Assembly Options: Ref Note: Original Power Track may have been replaced with
a Service Replacement. Visually identify the power track before ordering parts.
104 1180336 NLA Standard Power Track Assembly (Original Equipment) (Use p/n 1001099830) 104 1001099830 NLA Standard Power Track Assembly (Service Replacement (Use p/n 1001225901) 104 1001225901 1 Standard Power Track Assembly 104A Ref Gemco Brand Replacement Parts: 104A 7006140 AR Repair Section for p/n 1180336 Power Track (Includes 10 Link Pins, 4 Radius Links, 8 Carrier Links, 4 Rod Carrier, 8 Screws, 10 Slugs and 20 Bearing Plates) 104A 7006151 2 pr Feet, Mounting for p/n 1180336 Power Track (Includes 2 Round Spacers, Left and Right Mounting Feet) 104A 7006152 AR Pin Kit for p/n 1180336 Power Track (Includes 1 Pin, 1 Retaining Ring and Set of 4 Washers (Different Sizes)
104B
Ref Gortrac Brand Replacement Parts: 104B 70001994 AR Repair Section - 1001099830 Power Track 104B 70001995 1 Mounting Bracket Kit for 1001099830 Power Track 104B 70006268 AR Repair Section - 1001225901 Power Track 104B 70006277 1 Mounting Bracket Kit for 1001225901 Power Track 105 1180379 1 Inverted Power Track Assembly 105B 7016505 AR Repair Section for 1180379 Power Track (Includes extra pin assemblies for each end but no mounting feet) 105B 7016524 2 pr Feet, Mounting for 1180379 Power Track (Includes 1 each of Left and Right Mounting Feet) 105B 7006137 AR Pin Kit for 1180379 Power Track (Includes 1 Pin, 1 Retaining Ring and Set of 4 Washers (Different Sizes) 106 4711600 26 Flatwasher 3/8in Thin 108 4846216 1 Tube, Push 109 4846186 1 Tube, Carrier 110 3900283 8 Screw, Button Head 3/8in-16NC x 3/4in 111 3311601 4 Nut 3/8in-16NC 112 0641609 4 Bolt 3/8in-16NC x 1-1/8in 113 3340453 1 Pad, Wear 114 3311608 4 Nut, Flanged 3/8in-16NC Ref BOOM CABLES INSTALLATION 0259189 Ref Boom Cables Installation 400S (Prior to SN 0300064404) 9 0271160 Ref Boom Cables Installation 400S (SN 0300064404 through
0300096000)
8 0272612 Ref Boom Cables Installation 400S (7500w 60Hz Generator -
SKYPOWER)
4 0259190 Ref Boom Cables Installation 460SJ (Prior to SN 0300064404) 9 0271159 Ref Boom Cables Installation 460SJ (SN 0300064404 through
0300096000)
8 0272613 Ref Boom Cables Installation 460SJ (7500w 60Hz Generator -
SKYPOWER)
ITEM PART NUMBER QTY DESCRIPTION
201 0100011 AR Compound, Locking 202 4711600 4 Flatwasher 3/8in Thin 203 0641604 4 Bolt 3/8in-16NC x 1/2in 204 3572200 1 Clamp, Block 205 0630566 2 Bolt, Carriage 5/16in-18NC x 2-1/4in 206 3572345 4 Clamp, Block 207 4751500 3 Flatwasher 5/16in Regular 208 3311505 3 Locknut 5/16in-18NC 211 3572165 Cover 212 4060919 6 ft/1.8m Trim, Protection 213 3340897 2 Pad 218 0641516 1 Bolt 5/16in-18NC x 2in 223 4060808 5 ft/1.5m Trim, Protection 226 4060805 1.5 ft/ 0.5m Trim, Protection
