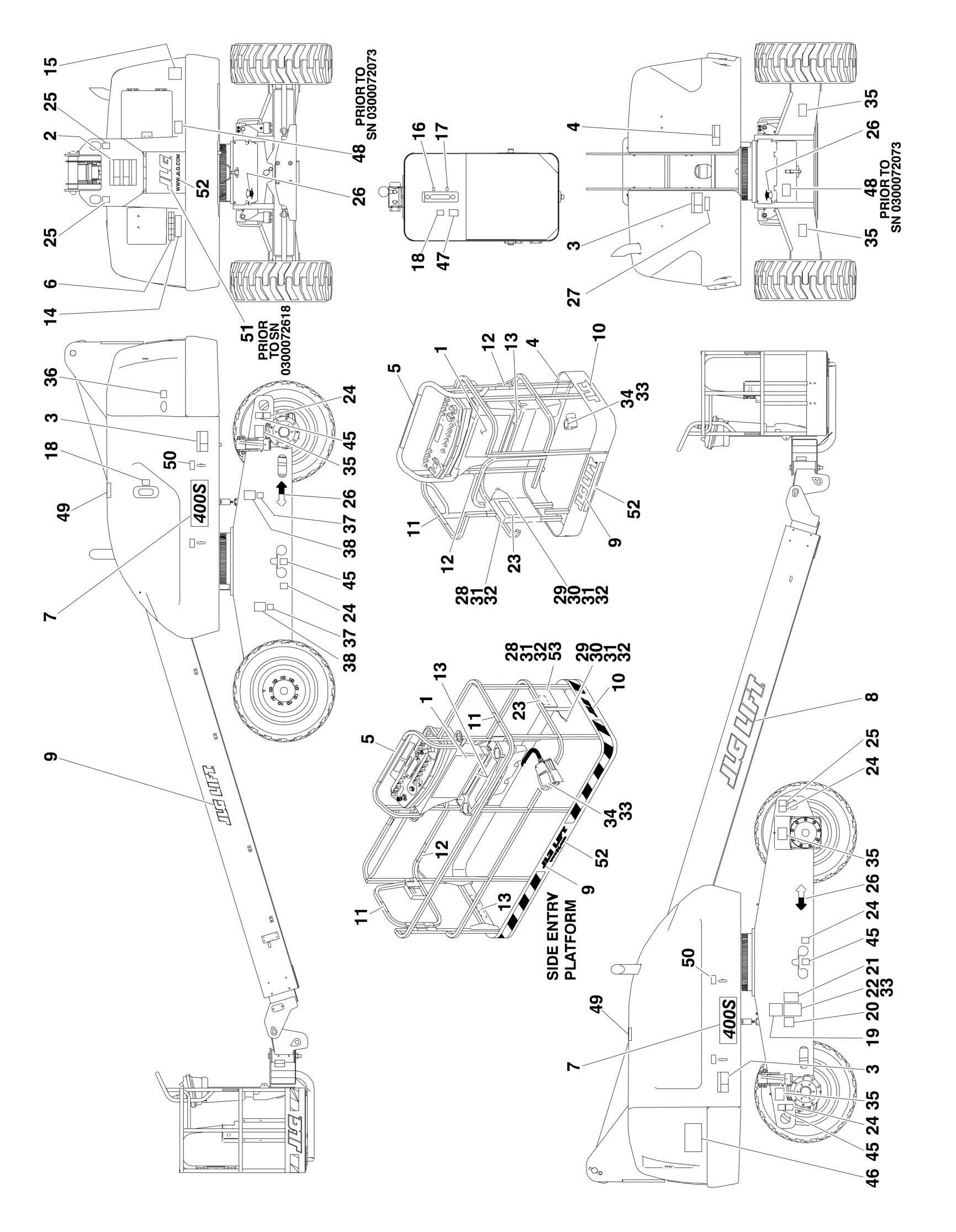

FIGURE 8-1. DECAL INSTALLATION (ANSI SPEC
FIGURE 8-1. DECAL INSTALLATION (ANSI SPEC)
FIGURE 8-1. DECAL INSTALLATION (ANSI SPEC)
ITEM PART NUMBER QTY
DESCRIPTION
Ref STANDARD DECAL INSTALLATIONS 0270398 Ref Decals JLG 0259159 Ref Decals JLG Model 400S with 500LB Capacity 0259981 Ref Decals JLG Model 400S with 750LB Capacity 0259160 Ref Decals JLG Model 460SJ 1 1703797 1 Decal - Danger/Warning (Platform) 2 1703798 1 Decal - Danger/Warning (Ground Control) 3 1703805 2 Decal - Danger/Electrocution 4 1703804 3 Decal - Warning Crushing 5 Ref Decal - Legend (Platform) Options: 5 1702784 1 Decal - Legend (Platform) (Prior to SN 0300093233) 5 1706708 1 Decal - Legend (Platform) (SN 0300093233 through
0300096000)
6 Ref Decal - Legend (Ground Control) Options: 6 1703808 1 Decal - Legend (Ground Control) (Prior to SN 0300093233) 6 1706709 1 Decal - Legend (Ground Control) (SN 0300093233 through
0300096000)
7 Ref Decal - Model Designation Options: 7 1704472 2 Decal - Model Designation 400S 7 1704473 2 Decal - Model Designation 460SJ 8 1702861 Ref Decal - JLG Lift (8in) 8 1702861 1 Decal - JLG Lift (Prior to SN 0300069278) 8 1702861 2 Decal - JLG Lift (SN 0300069278 through 0300096000) 9 1702774 Ref Decal - JLG Lift (3.5in) 9 1702774 2 Decal - JLG Lift (Prior to SN 0300069278) 9 1702774 1 Decal - JLG Lift (SN 0300069278 through 0300096000) 10 1702773 Ref Decal - JLG (5in) 10 1702773 2 Front Entry Platform 10 1702773 1 Side Entry Platform 11 1702868 2 Decal - No Hands 12 1704277 3 Decal - Attach Lanyard Here 13 Ref Decal - Capacity (Platform) Options: 13 1704096 2 Decal - Capacity (Platform) 400S with 500Lbs. Maximum Capacity 13 1704488 2 Decal - Capacity (Platform) 400S with 750Lbs. Maximum Capacity 13 1701645 2 Decal - Capacity (Platform) 460SJ 14 Ref Decal - Capacity (Ground Control) Options: 14 1704104 1 Decal - Capacity (Ground Control) 400S with 500Lbs. Maximum Capacity 14 1704489 1 Decal - Capacity (Ground Control) 400S with 750Lbs. Maximum Capacity 14 1702688 1 Decal - Capacity (Ground Control) 460SJ 15 3251813 1 Decal - USA 16 1701502 1 Decal - High Oil Level 17 1701503 1 Decal - Low Oil Level 18 1701504 2 Decal - Hydraulic Oil 19 1702153 1 Decal - Inspection 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 21 1700584 1 Decal - Patent 22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase)
REV
4 13 11 12
ITEM PART NUMBER QTY DESCRIPTION
23 1701509 1 Decal - Manual 24 1702300 6 Decal - Tie Down 25 1701500 4 Decal - Lift 26 1701529 4 Decal - Arrow 27 3251243 1 Nameplate - 120V-60Hz 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard 30 0641408 1 Bolt 1/4in-20NC x 1in 31 4751400 6 Flatwasher 1/4in 32 3311405 1 Locknut 1/4in-20NC 33 3820001 AR Rivet 34 3252347 1 Decal - Footswitch (Part of 4360031 Footswitch) 35 Ref Decal - Maximum Tire Load Options: 35 1706126 4 Decal - Maximum Tire Load Model 400S with 500LB Capacity (was p/n 1704827) (Prior to SN 0300077958) 35 1704827 NLA Decal - Maximum Tire Load Model 400S with 500LB Capacity (Use p/n 1706126) 35 1704828 4 Decal - Maximum Tire Load Model 400S with 750LB Capacity 35 1704829 4 Decal - Maximum Tire Load Model 460SJ 36 Ref Decal - Fuel 36 1701542 1 GM Engine Machines 36 1701505 1 Caterpillar and Deutz Engine Machines 37 Ref Decal - LPG Gas 37 Not Required 0 Non-Dual Fuel Machines 37 1701543 1 Dual Fuel Machines 38 Ref Decal - LP Gas Liquid Withdrawal System 38 Not Required 0 Non-Dual Fuel Machines 38 1700818 1 Dual Fuel Machines 45 1701499 4 Decal - No Lift 46 3252672 1 Decal - Lift Diagram 47 1704412 1 Decal - Hydraulic Oil Chart 48 1704540 AR Decal - Storage Capacity (Prior to SN 0300072073) 49 1701691 4 Decal - No Step 50 1704726 4 Decal - Lock Latch 51 1704825 1 Decal - JLG (Prior to SN 0300072618) 52 1704885 2 Decal - WWW.JLG.COM 53 0641406 4 Bolt 1/4in-20NC x 3/4in
