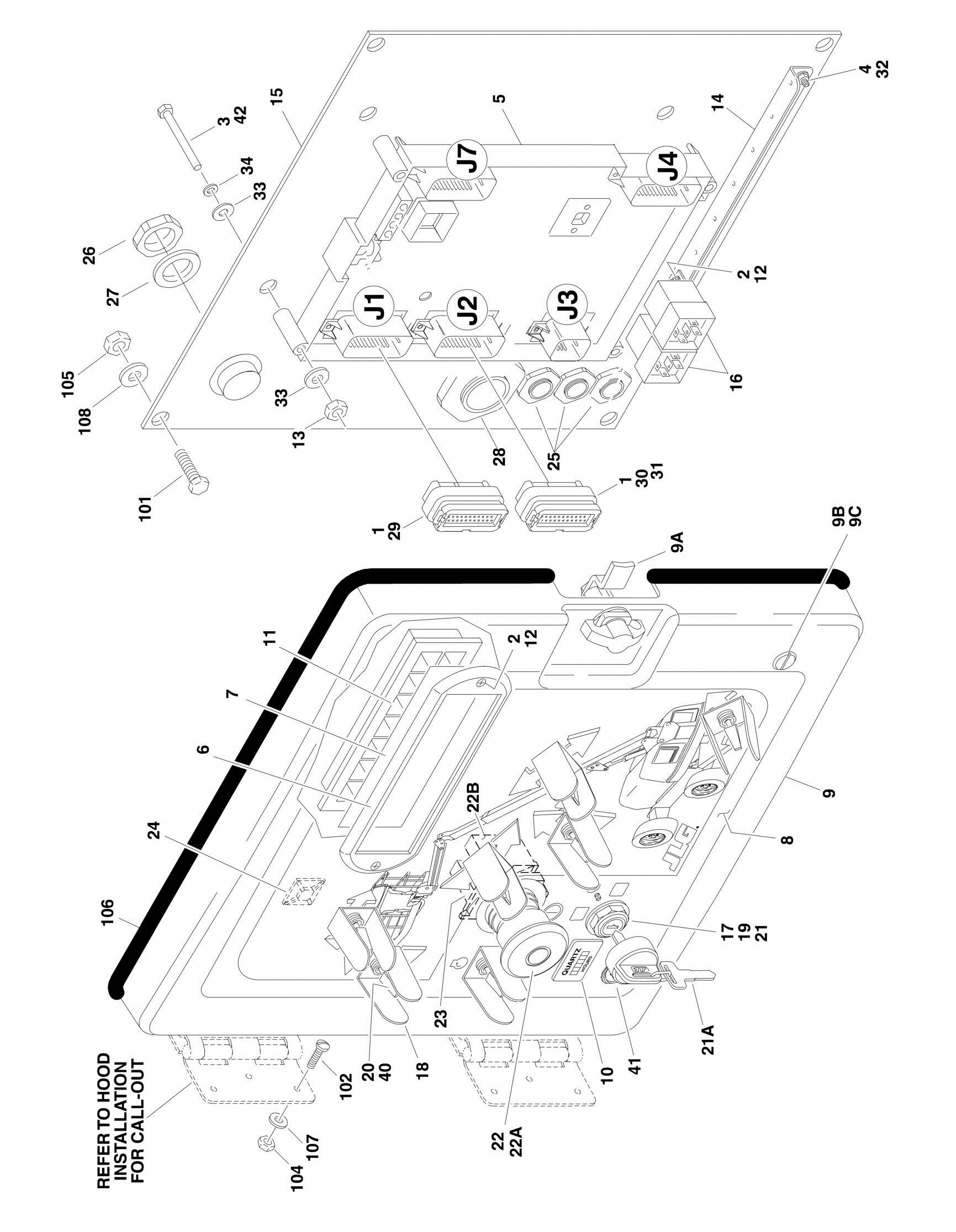

FIGURE 2-21. GROUND CONTROL BOX ASSEMBLY WITH ADE SYSTEM
ITEM PART NUMBER QTY DESCRIPTION REV
Ref GROUND CONTROL BOX ASSEMBLIES 0861591 Ref Ground Control Box Assemblies 400S with Caterpillar Engine
(Prior to SN 0300087630)
0861706 Ref Ground Control Box Assemblies 400S with Caterpillar Engine
(SN 0300087630 through 0300096000)
0861434 Ref Ground Control Box Assemblies 400S with Deutz Engine
(Prior to SN 0300064404)
0861496 Ref Ground Control Box Assemblies 400S with Deutz Engine (SN
0300064404 through 0300085616)
0861736 Ref Ground Control Box Assemblies 400S with Deutz Engine (SN
0300085617 through 0300096000)
0861432 Ref Ground Control Box Assemblies 400S with Ford Engine (Prior
to SN 0300064404)
0861494 Ref Ground Control Box Assemblies 400S with Ford Engine (SN
0300064404 through 0300087629)
C
D
D
F
B
D
G
0861710 Ref Ground Control Box Assemblies 400S with Ford Engine (SN
0300087630 through 0300096000)
D
0861774 Ref Ground Control Box Assemblies 400S with GM Engine B 0861592 Ref Ground Control Box Assemblies 460SJ with Caterpillar
Engine (Prior to SN 0300087630)
C 0861707 Ref Ground Control Box Assemblies 460SJ with Caterpillar
Engine (SN 0300087630 through 0300096000)
D 0861435 Ref Ground Control Box Assemblies 460SJ with Deutz Engine
(Prior to SN 0300064404)
D 0861499 Ref Ground Control Box Assemblies 460SJ with Deutz Engine (SN
0300064404 through 0300085616)
G 0861739 Ref Ground Control Box Assemblies 460SJ with Deutz Engine (SN
0300085617 through 0300096000)
C 0861433 Ref Ground Control Box Assemblies 460SJ with Ford Engine
(Prior to SN 0300064404)
D 0861495 Ref Ground Control Box Assemblies 460SJ with Ford Engine (SN
0300064404 through 0300087629)
G 0861711 Ref Ground Control Box Assemblies 460SJ with Ford Engine (SN
0300087630 through 0300096000)
D 0861773 Ref Ground Control Box Assemblies 460SJ with GM Engine B 1 0100048 AR Grease, Dialectric 2 0630518 5 Capscrew, Button Head 3 0630548 5 Tap Bolt, 2-1/2in 4 0721004 2 Screw #10-24NC x 1/2in 5 Ref Module, Ground Control Options (Re-calibration Required when Replaced): 5 1600312 NLA Module, Ground Control (Caterpillar/Deutz/Ford Engine) (Use p/n 2910752) (Prior to SN 0300064404) 5 1600327 NLA Module, Ground Control (Caterpillar/Deutz/Ford Engine) (Use p/n 2915014) (SN 0300064404 through 0300077553) 5 1600364 1 Module, Ground Control (SN 0300077554 through
0300096000)
5 1600364 1 Module, Ground Control (Deutz Engine) (SN 0300077554
through 0300085616)
5 1600411 1 Module, Ground Control (Deutz and GM Engine) (SN
0300085617 through 0300096000)
6 1670829 1 Bezel 7 Ref Decal - Ground Control Display Options: 7 1702610 1 Caterpillar and Ford Engine Machines (Prior to SN
0300085617)
ITEM PART NUMBER QTY
DESCRIPTION
7 1705753 1 Caterpillar and Ford Engine Machines (SN 0300085617
through 0300093232)
7 1706712 1 Caterpillar and Ford Engine Machines (SN 0300093233
through 0300096000)
7 1702610 1 Deutz Engine Machines (Prior to SN 0300085617) 7 1705753 1 Deutz and GM Engine Machines (SN 0300085617 through
0300093232)
7 1706712 1 Deutz and GM Engine Machines (SN 0300093233 through
0300096000)
8 Ref Decal - Faceplate Options: 8 1704465 1 Decal - Faceplate 400S 8 1704466 1 Decal - Faceplate 460SJ 9 1780307 1 Lid Assembly 9A 2940073 1 Latch 9B 7024319 2 Screw 9C 7024320 2 Retainer 10 2420172 1 Gauge, Hourmeter 11 2760105 1 Housing, Display Light 12 3300408 5 Locknut, Plastic Insert 13 3311401 10 Nut 1/4in-20NC 14 3539275 1 Bracket, Relay Mounting 15 3572827 1 Plate 16 3740049 AR Relay 17 3910804 6 Screw #8-32NC x 1/4in 18 4060906 AR Shield, Toggle Switch 19 4070987 1 Shim.015 20 4360328 AR Switch, Toggle 21 4360469 1 Switch, Key 21A 2860030 1 Key 22 4360475 1 Switch, Emergency Stop 22A 7020175 1 Cap, Mushroom Head 22B 7020176 1 Block, Contact 23 4360476 1 Switch, Contact Block 24 4460234 AR Base, Tie-Strap 25 4460428 3 Connector, Strain Relief 26 4460470 1 Nut, Terminal 27 4460471 1 Washer, Terminal 28 4460526 1 Connector, Strain Relief 29 4460874 1 Connector, Natural 30 4460875 1 Connector, Gray 31 4460905 4 Connector, Amp Seal Plug 32 4751000 2 Flatwasher #10 Regular 33 4751400 20 Flatwasher 1/4in Regular 34 4761400 15 Lockwasher 1/4in 35 Ref Engine Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 35 4922880 1 Caterpillar Engine Machines (Prior to SN 0300087630) 35 4923234 1 Caterpillar Engine Machines (SN 0300087630 through
0300091229)
35 4923356 1 Caterpillar Engine Machines (SN 0300091230 through
0300096000)
35 4922537 1 Deutz Engine Machines (Prior to SN 0300085617) 35 4923260 1 Deutz Engine Machines (SN 0300085617 through
REV
ITEM PART NUMBER QTY DESCRIPTION REV
0300096000)
35 4922536 1 Ford Engine Machines (Prior to SN 0300087630) 35 4923235 1 Ford Engine Machines (SN 0300087630 through 0300096000) 35 4923419 1 GM Engine Machines 36 4922538 1 Valve Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 37 Ref Ground Control Box Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 37 4922664 1 Caterpillar Engine Machines (Prior to SN 0300087630) 37 4923236 1 Caterpillar Engine Machines (SN 0300087630 through
0300091229)
37 4923456 1 Caterpillar Engine Machines (SN 0300091230 through
0300096000)
37 4922540 1 Deutz Engine Machines (Prior to SN 0300064404) 37 4922664 1 Deutz Engine Machines (SN 0300064404 through
0300085616)
37 4923261 1 Deutz Engine Machines (SN 0300085617 through
0300096000)
37 4922539 1 Ford Engine Machines (Prior to SN 0300064404) 37 4922663 1 Ford Engine Machines (SN 0300064404 through 0300067470) 37 4922664 1 Ford Engine Machines (SN 0300067471 through 0300087629) 37 4923236 1 Ford Engine Machines (SN 0300087630 through 0300096000) 37 4923261 1 GM Engine Machines 38 Ref Harness, Analyzer Cable Options (Not Shown - See ELECTRICAL SECTION for Breakdown): 38 4922485 1 All Machines (Prior to SN 0300064404) 38 4922666 1 All Machines (SN 0300064404 through 0300085616) 38 4922666 1 Caterpillar and Ford Engine Machines (SN 0300085617
through 0300096000)
38 Not Required 0 Deutz and GM Engine Machines (SN 0300085617 through
0300096000)
40 3790012 7 O-Ring 41 1705132 1 Decal - ADE Control (SN 0300067471 through 0300096000) 42 0100011 AR Compound, Locking Ref GROUND CONTROL BOX INSTALLATIONS 0272938 Ref Ground Control Box Installations 400S with Caterpillar Engine
(Prior to SN 0300087630)
0274415 Ref Ground Control Box Installations 400S with Caterpillar Engine
(SN 0300087630 through 0300096000)
0271078 Ref Ground Control Box Installations 400S with Deutz Engine
(Prior to SN 0300064404)
0271657 Ref Ground Control Box Installations 400S with Deutz Engine (SN
0300064404 through 0300096000)
2
1
4
4
0271076 Ref Ground Control Box Installations 400S with Ford Engine
(Prior to SN 0300064404)
0271662 Ref Ground Control Box Installations 400S with Ford Engine (SN
0300064404 through 0300087629)
0274419 Ref Ground Control Box Installations 400S with Ford Engine (SN
0300087630 through 0300096000)
3
4
2
0275059 Ref Ground Control Box Installations 400S with GM Engine 1 0272939 Ref Ground Control Box Installations 460SJ with Caterpillar
Engine (Prior to SN 0300087630)
2 0274416 Ref Ground Control Box Installations 460SJ with Caterpillar
Engine (SN 0300087630 through 0300096000)
1 0271079 Ref Ground Control Box Installations 460SJ with Deutz Engine 3
ITEM PART NUMBER QTY DESCRIPTION REV
(Prior to SN 0300064404)
0271661 Ref Ground Control Box Installations 460SJ with Deutz Engine
(SN 0300064404 through 0300096000)
0271077 Ref Ground Control Box Installations 460SJ with Ford Engine
(Prior to SN 0300064404)
0271659 Ref Ground Control Box Installations 460SJ with Ford Engine (SN
0300064404 through 0300087629)
0274420 Ref Ground Control Box Installations 460SJ with Ford Engine (SN
0300087630 through 0300096000)
4
3
4
2
0275060 Ref Ground Control Box Installations 460SJ with GM Engine 1 101 0641406 4 Bolt 1/4in-20NC x 3/4in 102 0720805 6 Screw, Machine #8-32NC 104 3310805 6 Locknut #8-32NC 105 3311405 4 Locknut 1/4in-20NC 106 3960438 AR Seal 107 4750800 6 Flatwasher #8 Regular 108 4751400 8 Flatwasher 1/4in Regular
