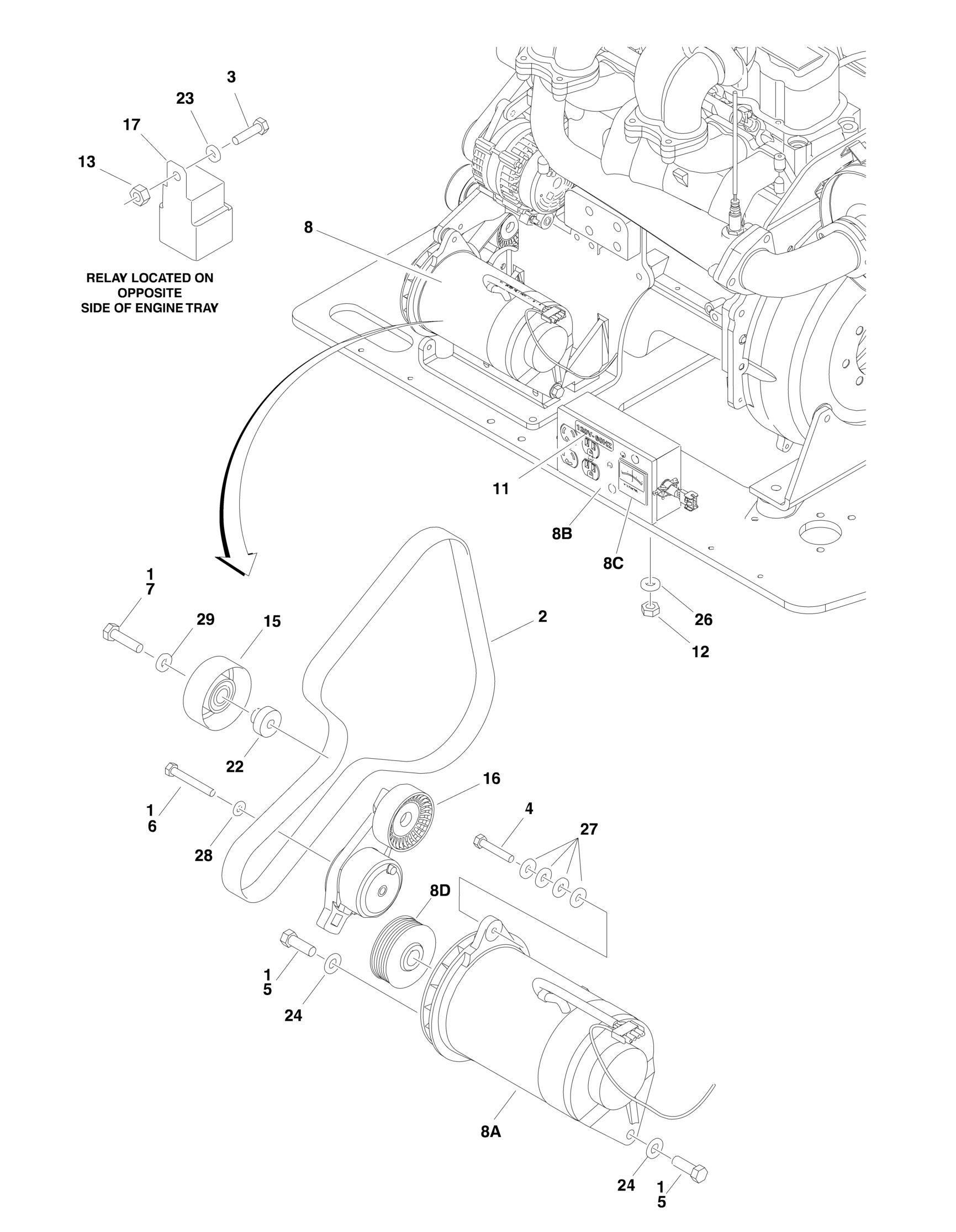

FIGURE 2-28. 2500W GENERATOR INSTALLATION - GM MACHINES (OPTIONAL
ITEM PART NUMBER QTY
DESCRIPTION
Ref 2500W ENERATOR INSTALLATION OPTIONS: 0275039 Ref 110V Generator See Note Ref 220V Generator (Note: Not Available for Purchase) 1 0100011 AR Compound, Locking 2 0480142 1 V-Belt 3 0641405 1 Bolt 1/4in-20NC x 5/8in 4 0641510 1 Bolt 5/16in-18NC x 1-1/4in 5 0641710 2 Bolt 7/16in-14NC x 1-1/4in 6 0700820 1 Bolt 8mm x 60mm 7 0701016 1 Bolt 10mm x 340mm 8 Ref Generator and Control Box Assembly Options: 8 2460051 1 110 Volt Assembly 8 2460052 1 220 Volt Assembly 8A 7012558 1 Generator Only - 110V 8A 1001100321 1 Generator Only - 220V Ref Note: Replacement Generators come standard with p/n
3580134 pulley. This pulley may not be correct for all applications. Refer to pulley options below.
8A Ref Armature with Slip Rings Options: 8A 7026199 1 Armature with Slip Rings - 110V 8A 70000123 1 Armature with Slip Rings - 220V 8A 7012513 4 Cap, Brush Holder 8A 7020108 4 Brush 8A 7020109 4 Holder, Brush 8A 7012514 1 Fan 8A 7020110 1 Bell, Front 8A 7020111 1 Bell, Rear 8A 7020190 2 Bearing 8A 7020193 1 Cord, Power 8B 7019680 1 Box, Control - 110V 8B 70000127 1 Box, Control - 220V 8B Ref Receptacle Options: 8B 4460190 1 Receptacle, Standard (110V Only) 8B 4460027 1 Receptacle, Twistlock (110V Only) 8B 70000124 1 Receptacle, Double (220V Only) 8B 70000125 1 Receptacle, Single (220V Only) 8B Ref Breaker, Circuit Options: 8B 4360542 1 Breaker 110V 8B 70000126 1 Breaker 220V 8B 3520028 1 Plug, Hole 8C Ref Voltmeter Options: 8C 2420203 1 Voltmeter - 110V 8C 7020192 1 Voltmeter - 220V 8D Ref Pulley Options: 8D 3580324 1 Pulley 110V 8D 3580325 1 Pulley 220V 8D 7027887 1 Key, Woodruff 9 2820031 AR Heat Shrink (Not Shown - Located at Platform) 10 3251102 1 Nameplate - Generator (Not Shown - Located at Platform) 11 Ref Decal
REV
D
ITEM PART NUMBER QTY DESCRIPTION
11 3251243 1 110 Volt Generator 11 1702590 1 220 Volt Generator 12 3311005 2 Locknut # 10-24NC 13 3311405 1 Locknut 1/4in-20NC 15 3580312 1 Pulley, Idler 16 3580348 1 Tensioner, Belt 17 3740080 1 Relay, Bosch 18 4060802 1 Guard, Switch (Not Shown - Located at Platform) 19 4240018 AR Tie-Strap (Not Shown) 20 4360336 1 Switch, Toggle (Not Shown - Located at Platform) 21 4460906 3 Terminal (Not Shown) 22 4568735 1 Spacer, Tube (Idler Pulley Grooved) 23 4711400 1 Flatwasher 1/4in Thin 24 4711700 2 Flatwasher 7/16in Thin 25 4740397 1 Spacer (Not Shown - Located at Platform) 26 4751000 2 Flatwasher #10 Regular 27 4751500 4 Flatwasher 5/16in Regular 28 4811900 1 Flatwasher 8mm 29 4891600 1 Flatwasher 3/8in Hardened
