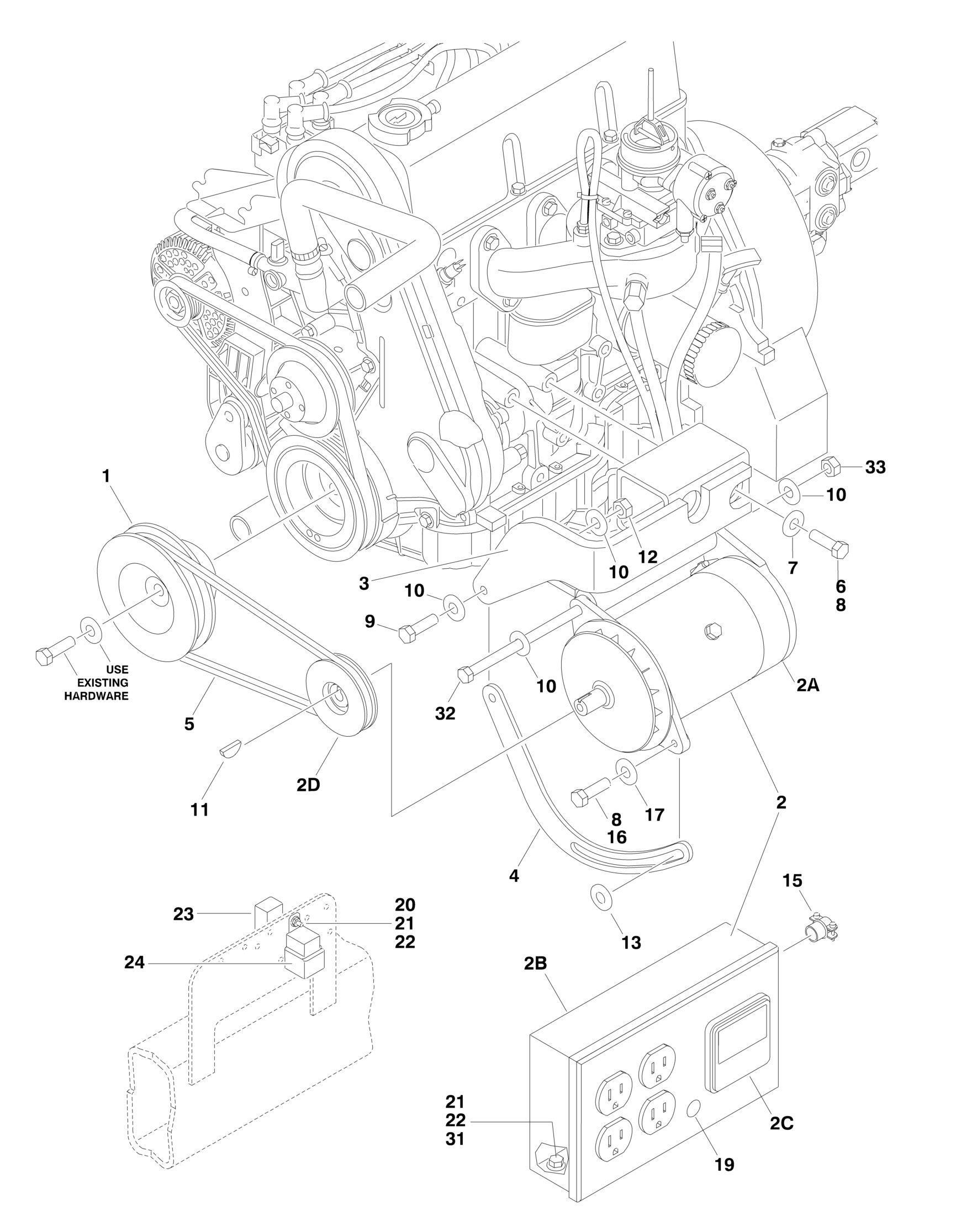

FIGURE 2-26. 2500W GENERATOR INSTALLATION - FORD MACHINES (OPTIONAL) (Prior to SN 0300078473 FIGURE 2-27. 2500W GENERATOR INSTALLATION - FORD MACHINES (OPTIONAL) (SN 0300078473 through 0300096000) ...................................................................................................................................................................................................... 174
ITEM PART NUMBER QTY DESCRIPTION REV
Ref 2500W ENERATOR INSTALLATION OPTIONS: 0270496 Ref 110V Generator without ADE System
3-A 0271345 Ref 110V Generator with ADE System (Prior to SN 0300064509) 3-C 0272008 Ref 110V Generator with ADE System (SN 0300064509 through
0300078473)
5-C 0270497 Ref 220V Generator without ADE System 3-A 0271348 Ref 220V Generator with ADE System (Prior to SN 0300064509) 3-C 0272011 Ref 220V Generator with ADE System (SN 0300064509 through
0300078473)
4-B 1 3580250 1 Pulley 2 Ref Generator and Control Box Assembly Options: 2 2460011 1 110Volt Assembly (Prior to SN 0300066060) 2 2460032 1 110Volt Assembly (SN 0300066060 through 0300066477) 2 2460044 1 110Volt Assembly (SN 0300066478 through 0300078473) 2 2460013 1 220Volt Assembly (Prior to SN 0300066060) 2 2460034 1 220Volt Assembly (SN 0300066060 through 0300066477) 2 2460013 1 220Volt Assembly (SN 0300066478 through 0300078473) 2A 7012558 1 Generator Only - 110V 2A 1001100321 1 Generator Only - 220V Ref Note: Replacement Generators come standard with p/n
3580134 pulley. This pulley may not be correct for all applications. Refer to pulley options below.
2A Ref Armature with Slip Rings Options: 2A 7026199 1 Armature with Slip Rings - 110V 2A 70000123 1 Armature with Slip Rings - 220V 2A 7012513 4 Cap, Brush Holder 2A 7020108 4 Brush 2A 7020109 4 Holder, Brush 2A 7012514 1 Fan 2A 7020110 1 Bell, Front 2A 7020111 1 Bell, Rear 2A 7020190 2 Bearing 2A 7020193 1 Cord, Power 2B 7003657 1 Box, Control - 110V 2B 70002235 1 Box, Control - 220V 2B Ref Receptacle Options: 2B 4460190 1 Receptacle, Standard (110V Only) 2B 4460027 1 Receptacle, Twistlock (110V Only) 2B 70000124 1 Receptacle, Double (220V Only) 2B 70000125 1 Receptacle, Single (220V Only) 2B Ref Breaker, Circuit Options: 2B 4360542 1 Breaker 110V 2B 70000126 1 Breaker 220V 2B 3520028 1 Plug, Hole 2B 2920162 1 Lamp Assembly 2B 7020191 1 Switch, Toggle 2C Ref Voltmeter Options: 2C 2420203 1 Voltmeter - 110V 2C 7020192 1 Voltmeter - 220V 2D Ref Pulley Options:
ITEM PART NUMBER QTY
DESCRIPTION
2D 3580134 1 Pulley 110V (Prior to SN 0300066060) 2D 3580276 1 Pulley 110V (SN 0300066060 through 0300066477) 2D 3580307 1 Pulley 110V (SN 0300066478 through 0300078473) 2D 3580134 1 Pulley 220V (Prior to SN 0300066060) 2D 3580276 1 Pulley 220V (SN 0300066060 through 0300066477) 2D 3580134 1 Pulley 220V (SN 0300066478 through 0300078473) 2D 7027887 1 Key, Woodruff 3 Ref Bracket, Generator Mounting Options: 3 0902210 1 Bracket, Generator Mounting (Prior to SN 0300064508) 3 0902756 1 Bracket, Generator Mounting (SN 0300064508 through
0300078473)
4 0200632 1 Arm, Adjusting 5 Ref V-Belt Options: 5 0480118 1 Generator - 110V (Prior to SN 0300066060) 5 0480111 NLA Generator - 110V (Use p/n 0480134) (SN 0300066060 through
0300073859)
5 0480134 1 Generator - 110V (SN 0300073860 through 0300078473) 5 0480118 1 Generator - 220V 6 0701015 2 Bolt, Metric 10mm-1.5 x 35mm 7 4812000 2 Flatwasher 10mm 8 0100011 AR Compound, Locking 9 0681612 AR Bolt 3/8in-16NC x 1-1/2in (Grade 8) 10 4751600 6 Flatwasher 3/8in Regular 11 2860012 1 Key, Woodruff 12 3311605 1 Locknut 3/8in-16NC 13 4564417 1 Spacer, Tube 15 4460023 1 Connector, Strain Relief 16 0641508 1 Bolt 5/16in-18NC x 1in 17 4751500 2 Flatwasher 5/16in Regular 19 3520028 1 Plug, Hole 20 0721006 AR Bolt #10-24NC x 3/4in 21 3311005 AR Locknut #10-24NC 22 4751000 AR Flatwasher #10 Regular 23 4360294 1 Breaker, Circuit - 30 Amp (Prior to SN 0300069330) 24 3740080 1 Relay, Bosch 25 4360336 1 Switch, Toggle - SPST (Not Shown - Located at Platform) 26 4740397 1 Washer (Not Shown - Located at Platform) 27 4060802 1 Guard, Switch (Not Shown - Located at Platform) 29 2820031 1 Heat Shrink (Not Shown - Located at Platform) 30 3251102 1 Decal (Not Shown - Located at Platform) 31 0721008 2 Bolt #10-24NC x 1in 32 0641772 1 Bolt 7/16in-14NC x 9in (SN 0300064509 through 0300078473) 33 3311705 1 Locknut 7/16in-14NC (SN 0300064509 through 0300078473)
REV
ITEM PART NUMBER QTY
DESCRIPTION

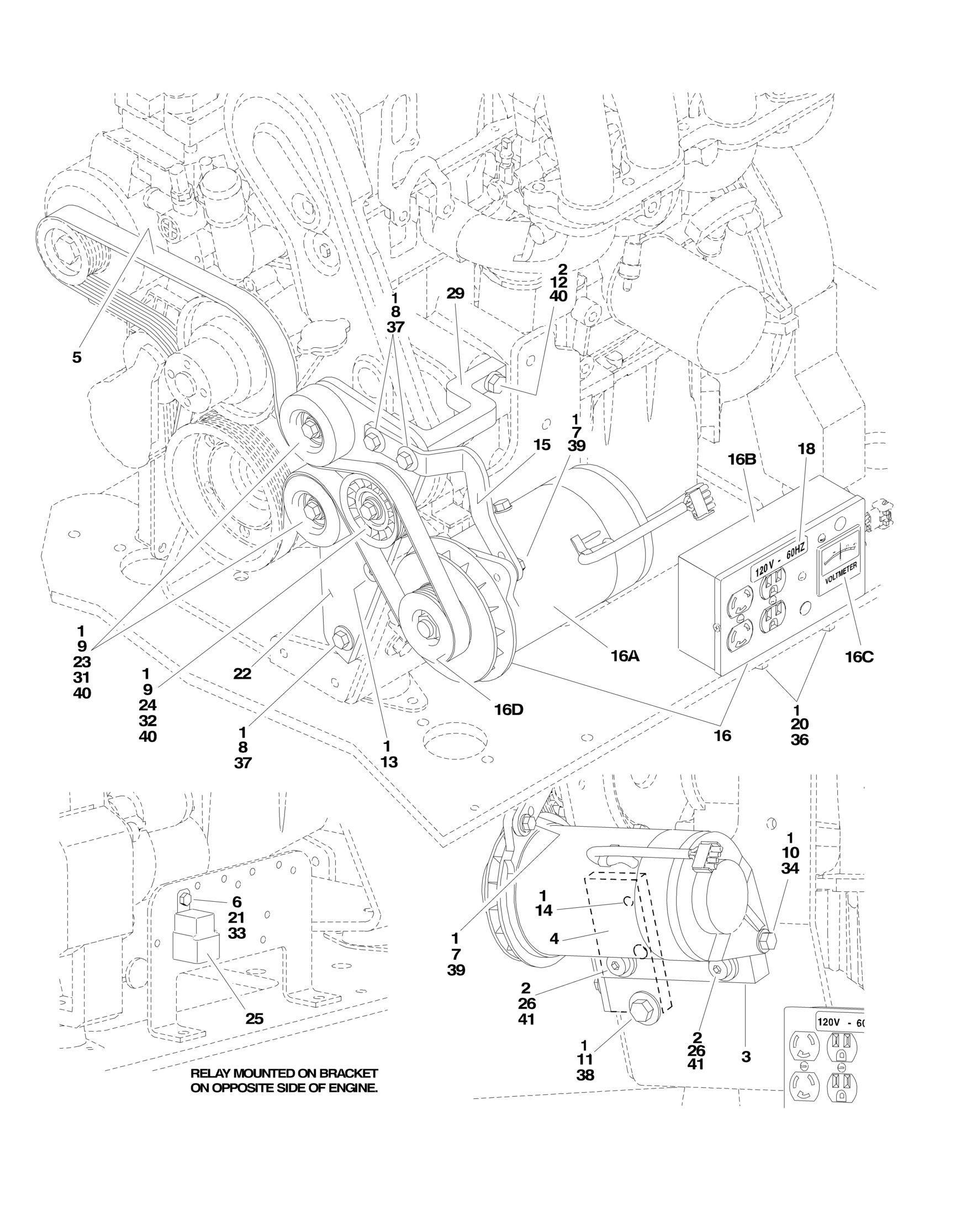

Ref 2500W ENERATOR INSTALLATION OPTIONS: 0273507 Ref 110V Generator with ADE System (SN 0300078473 through
0300096000)
0273511 Ref 220V Generator with ADE System (SN 0300078473 through
0300096000)
1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0363082 1 Bar, Generator Adjuster 4 0363097 1 Bar, Pulley Mounting 5 0480135 1 V-Belt 6 0641405 1 Bolt 1/4in-20NC x 5/8in 7 0641508 1 Bolt 5/16in-18NC x 1in 8 0641611 3 Bolt 3/8in-16NC x 1-3/8in 9 0641612 3 Bolt 3/8in-16NC x 1-1/2in 10 0641718 2 Bolt 7/16in-14NC x 2-1/4in 11 0641810 1 Bolt 1/2in-13NC x 1-1/4in 12 0701015 1 Bolt 10mm x 35mm 13 0741606 1 Screw, Countersunk 3/8in-16NC x 3/4in 14 0741808 1 Screw, Countersunk 1/2in-13NC x 1in 15 0902952 1 Bracket, Generator Mounting 16 Ref Generator and Control Box Assembly Options: 16 2460051 1 110Volt Assembly 16 2460052 1 220Volt Assembly 16A 7012558 1 Generator Only - 110V 16A 1001100321 1 Generator Only - 220V Ref Note: Replacement Generators come standard with p/n
3580134 pulley. This pulley may not be correct for all applications. Refer to pulley options below.
16A Ref Armature with Slip Rings Options: 16A 7026199 1 Armature with Slip Rings - 110V 16A 70000123 1 Armature with Slip Rings - 220V 16A 7012513 4 Cap, Brush Holder 16A 7020108 4 Brush 16A 7020109 4 Holder, Brush 16A 7012514 1 Fan 16A 7020110 1 Bell, Front 16A 7020111 1 Bell, Rear 16A 7020190 2 Bearing 16A 7020193 1 Cord, Power 16B 7019680 1 Box, Control - 110V 16B 70000127 1 Box, Control - 220V 16B Ref Receptacle Options: 16B 4460190 1 Receptacle, Standard (110V Only) 16B 4460027 1 Receptacle, Twistlock (110V Only) 16B 70000124 1 Receptacle, Double (220V Only) 16B 70000125 1 Receptacle, Single (220V Only) 16B Ref Breaker, Circuit Options: 16B 4360542 1 Breaker 110V 16B 70000126 1 Breaker 220V 16B 3520028 1 Plug, Hole
REV
B
A
ITEM PART NUMBER QTY DESCRIPTION
16C Ref Voltmeter Options: 16C 2420203 1 Voltmeter - 110V 16C 7020192 1 Voltmeter - 220V 16D Ref Pulley Options: 16D 3580324 1 Pulley 110V 16D 3580325 1 Pulley 220V 16D 7027887 1 Key, Woodruff 17 2820031 AR Heat Shrink (Not Shown - Located at Platform) 18 Ref Decal 18 1702590 1 110V Generator 18 3251243 1 220V Generator 19 3252764 1 Nameplate (Not Shown - Located at Platform) 20 3311005 2 Locknut #10-24NC 21 3311405 1 Locknut 1/4in-20NC 22 3574225 1 Plate, Pulley Mounting 23 3580312 2 Pulley, Idler 24 3580313 1 Pulley, Grooved Idler 25 3740080 1 Relay, Bosch 26 3900322 2 Screw, Shoulder 27 4060802 1 Guard, Switch (Not Shown - Located at Platform) 28 4240018 AR Tie-Strap (Not Shown) 29 4340738 1 Support, Idler Pulley 30 4360336 1 Switch, Toggle - SPST (Not Shown - Located at Platform) 31 4568734 2 Spacer, Tube (Idler Pulley Non-Grooved) 32 4568735 1 Spacer, Tube (Idler Pulley Grooved) 33 4711400 1 Flatwasher 1/4in Thin 34 4711700 2 Flatwasher 7/16in Thin 35 4740397 1 Spacer (Not Shown - Located at Platform) 36 4751000 2 Flatwasher #10 Regular 37 4751600 3 Flatwasher 3/8in Regular 38 4751800 1 Flatwasher 1/2in Regular 39 4891500 1 Flatwasher 5/16in Hardened 40 4891600 4 Flatwasher 3/8in Hardened 41 4892000 2 Flatwasher 5/8in Hardened
