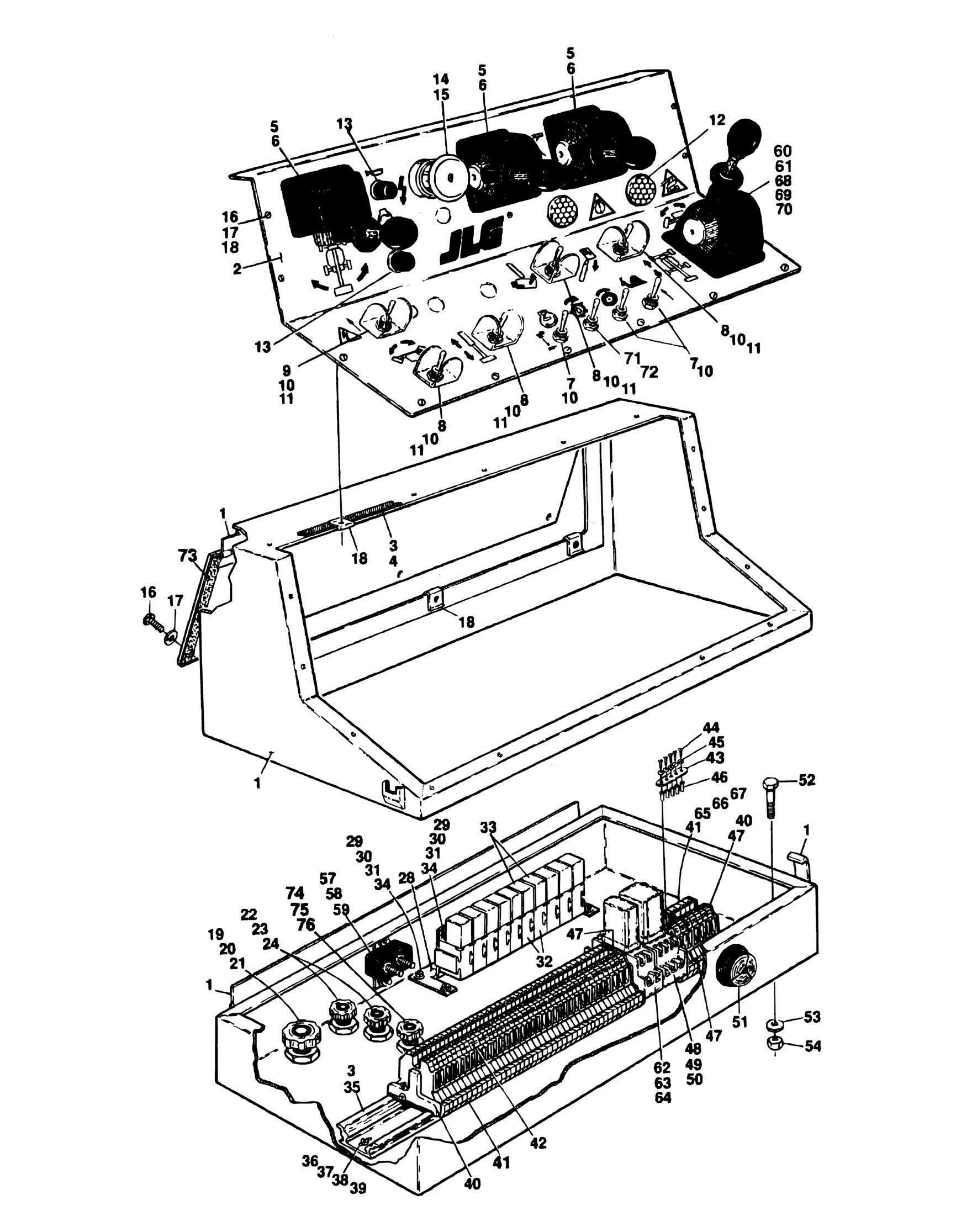

FIGURE 4 6. PLATFORM CONSOLE BOX ASSEMBLY (PROPORTIONAL CONTROLS
ITEM PART NUMBER QTY
DESCRIPTION
Ref PLATFORM CONSOLE BOX ASSEMBLY OPTIONS: 0860827 Ref 2WS With Creep 1 0860739 1 Box, Console 1A 2940052 2 Latch 1B 2600132 1 Hinge (Top and Bottom) 1C 2600105 1 Hinge (Access Door) 2 Ref Lid, Box Options: 2 3252224 1 Lid, Box (Prior to March 1994) 2 3252382 1 Lid, Box (March 1994 to November 1994) 2 3538392 1 Lid, Box (November 1994 to Present) 3 4420008 5.75 Tape, Insulation ft/1.75m 4 0100001 AR Adhesive (Not Shown) 5 1600126 3 Controller - PQ 5 7003702 1 Housing Assembly 5 7003700 1 Handle Assembly 5 7003782 1 Electrical Assembly 6 2560112 3 Knob 7 4360199 3 Switch, Toggle 8 4360202 4 Switch, Toggle 9 4360200 1 Switch, Toggle 10 3790012 8 O-Ring 11 4060229 5 Guard, Switch 12 2920015 1 Lamp 13 4360274 2 Switch, Push Button 14 4360289 1 Switch, Push/Pull (Emergency Stop) 14 7012611 1 Mushroom Head 14 7012612 1 Boot 15 4360282 1 Block, Contact 16 0751006 21 Screw Pan Head #10-24NC x 3/4in 17 4740120 21 Washer, Nylon 18 3300177 21 Nut, Tinnerman 19 4460386 1 Strain, Relief 20 3300147 1 Nut, Conduit 21 0960905 1 Bushing 22 4460052 2 Strain, Relief 23 3300047 2 Nut, Conduit 24 0960239 2 Bushing 25 to 27 Not Required 0 Not Required 28 0901796 1 Bracket 29 4751000 8 Flatwasher #10 30 4761000 8 Lockwasher #10 31 3311001 8 Nut #10-24NC 32 3740085 6 Socket, Relay 33 3740086 6 Relay 34 3911012 8 Screw #10-24NC x 3/4in 35 3640752 1 Track 36 3910608 2 Screw Pan Head #6-32NC x 1/2in 37 4750600 2 Flatwasher #6 38 4760600 2 Lockwasher #6
REV
C
ITEM PART NUMBER QTY DESCRIPTION
39 3310601 2 Nut #6-32NC 40 4460299 2 Stop, Terminal 41 4460298 54 Block, Terminal 42 4460301 1 Strip, Marking 43 4460311 2 Bar, Buss 44 4460305 10 Screw 45 4460306 10 Washer 46 4460307 10 Sleeve 47 4460300 3 Barrier, Terminal 48 4120013 1 Socket, Relay 49 3740058 1 Relay 50 3740063 1 Spring, Relay 51 0140019 1 Alarm 52 0641508 4 Bolt 5/16in-18NC x 1in 53 4751500 8 Flatwasher 5/16in 54 3311505 4 Locknut 5/16in-18NC 56 3520034 8 Plug, Hole (Not Shown) 57 4761000 1 Lockwasher #10 58 3311001 1 Nut #10-24NC 59 4360232 1 Breaker, Circuit 15Amp 60 1600116 1 Controller - PQ 60 7003702 1 Housing Assembly 60 7003700 1 Handle Assembly 60 7003783 1 Electrical Assembly 61 2560112 1 Knob 62 4120012 1 Socket, Relay 63 3740057 1 Relay 64 3740066 1 Spring, Relay 65 4460404 10 Strip, Marking 66 4460405 32 Strip, Marking 67 4460423 2 Strip, Marking 68 0720803 16 Screw Machine #8-32NC x 3/8in 69 4750800 16 Flatwasher #8 70 4760800 16 Lockwasher #8 71 to 72 Not Required 0 Not Required 73 4420037 13.75 Tape, Insulation ft/4.1m 74 4460071 1 Connector 75 3300048 1 Nut, Conduit 76 0960238 1 Bushing 77 1702402 1 Decal, Console Box
