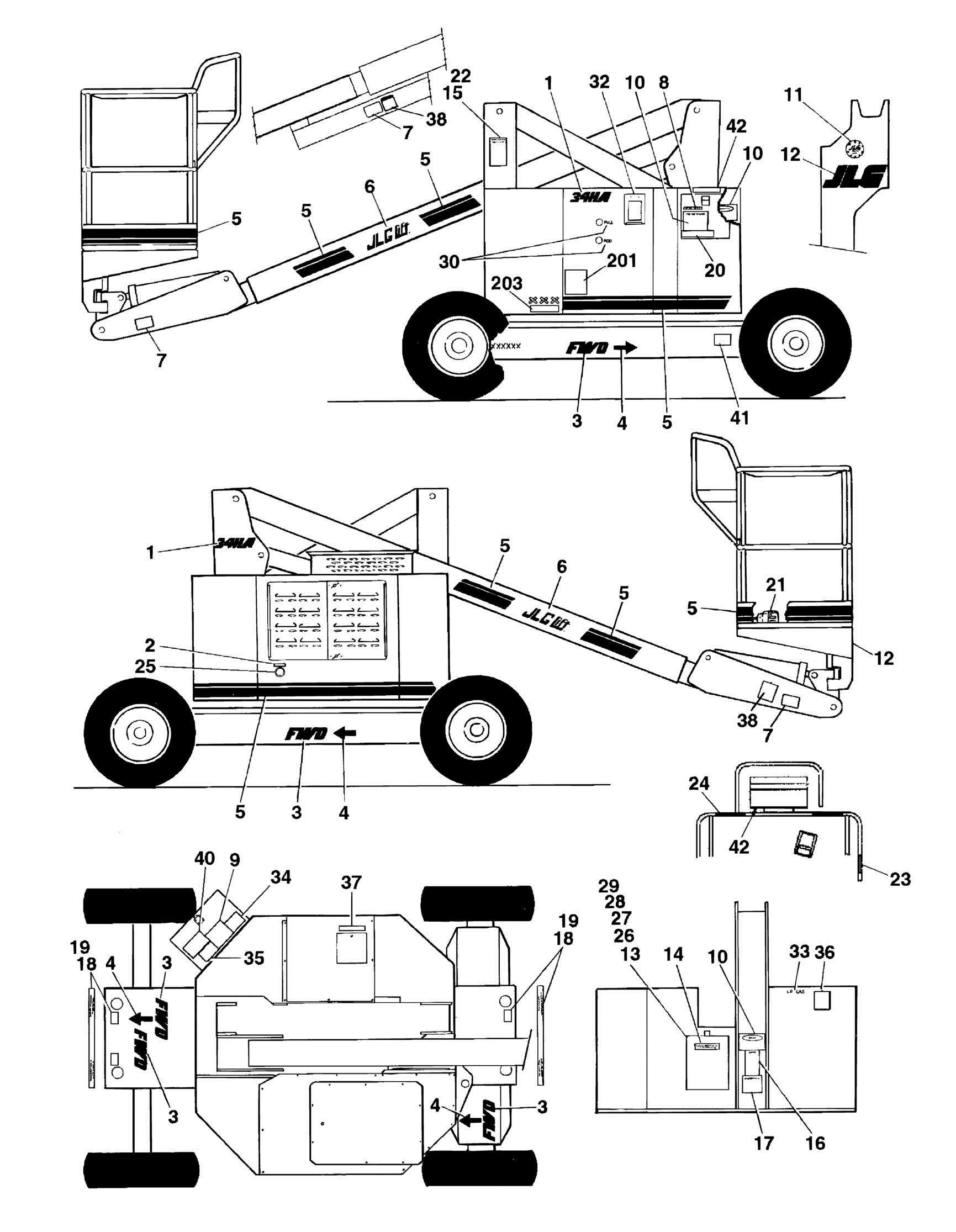

FIGURE 8 1. DECALS INSTALLATION STANDARD (PRIOR TO JULY 1991
ITEM PART NUMBER QTY DESCRIPTION
Ref DECAL INSTALLATIONS 0250643 Ref Brown and Cream 0271036 Ref JLG Logo (Brown) 1 Ref Decal - 34HA Options: 1 1701340 2 Decal - 34HA (Prior to June 1991) 1 1701471 2 Decal - 34HA (June 1991 to Present) 2 3251243 1 Nameplate - 120V 60HZ 3 1700977 4 Decal - FWD (Prior to November 1992) 4 Ref Decal - Arrow Options: 4 1700978 4 Decal - Arrow (Prior to November 1992) 4 1701529 4 Decal - Arrow (November 1992 to Present) 5 Ref Decal - Stripping Options: 5 1700431 7.9 m Decal - Stripping (Prior to March 1994) 5 1701703 10 m Decal - Stripping (March 1994 to Present) 6 Ref Decal - JLG Lift Options: 6 1700422 2 Decal - JLG Lift (Prior to June 1991) 6 1701441 2 Decal - JLG Lift (June 1991 to Present) 7 Ref Decal - Crushing Options: 7 1700640 3 Decal - Crushing (Prior to March 1994) 7 1702284 3 Decal - Crushing (March 1994 to Present) 8 1700037 1 Decal - Ground Control 9 Ref Decal - Caution Options: 9 1700643 1 Decal - Caution (Prior to March 1994) 9 1702299 1 Decal - Caution (March 1994 to Present) 10 Ref Decal - Caution Options: 10 1700585 3 Decal - Caution (Prior to March 1994) 10 1702277 3 Decal - Caution (March 1994 to Present) 11 3251813 1 Decal - Made in USA 12 1700981 2 Decal - JLG 13 0860520 1 Box Manual Storage 14 Ref Decal - Operations, Safety and Maintenance Options: 14 1700157 1 Decal - Operations, Safety and Maintenance (Prior to March 1994) 14 1701509 1 Decal - Operations, Safety and Maintenance (March 1994 to Present) 15 Not Available 1 Nameplate - Manufacturer 16 1700584 1 Decal - Patent 17 Ref Decal - Inspection Options: 17 1700593 1 Decal - Inspection (Prior to March 1994) 17 1702153 1 Decal - Inspection (March 1994 to Present) 18 Ref Decal - Lift Here Options: 18 1700975 4 Decal - Lift Here (Prior to SN 27273) 18 1701500 4 Decal - Lift Here (SN 27273 to Present) 19 Ref Decal - Tie Down Options: 19 1702300 4 Decal - Tie Down (Prior to SN 27273) 19 1701500 4 Decal - Tie Down (SN 27273 to Present) 20 Ref Decal - Electrocution Hazard Options: 20 1700580 1 Decal - Electrocution Hazard (Prior to March 1994) 20 1702292 1 Decal - Electrocution Hazard (March 1994 to Present) 21 3252347 1 Nameplate - Footswitch (Prior to June 1992) (Was p/n 3251766)
REV
8 1
ITEM PART NUMBER QTY DESCRIPTION REV
22 3820001 4 Rivet 23 Ref Decal - No Hands Options: 23 1700476 2 Decal - No Hands (Prior to March 1994) 23 1702294 2 Decal - No Hands (March 1994 to Present) 24 Ref Decal - Attach Lanyard Options: 24 1700477 2 Decal - Attach Lanyard (Prior to March 1994) 24 1702512 2 Decal - Attach Lanyard (March 1994 to June 1995) 24 1704277 2 Decal - Attach Lanyard (June 1995 to Present) (was p/n 1702612) 25 0961127 1 Bushing, Snap 26 4751400 6 Flatwasher 1/4in 27 3311405 5 Nut 1/4in-20NC 28 1060279 1 Cable, Lanyard 29 0641408 1 Bolt 1/4in-20NC x 1in 30 1700756 1 Decal - ADD/Full 31 0100010 AR Loctite #242 (Not Shown) 32 Ref Decal - Fuel Options: 32 1700428 1 Brown - Diesel 32 1700430 1 Brown - Gas 32 1701542 1 Dual Fuel 33 Ref Decal - LP Options: 33 1700429 1 Brown 33 1701543 1 LP Gas Only 34 3252356 1 Decal - Dual Fuel Only 35 Ref Decal - LP Options: 35 1700582 1 Decal - LP (Prior to March 1994) 35 1702293 1 Decal - LP (March 1994 to Present) 36 1700818 1 Decal - LP Gas Liquid Withdraw System 37 Ref Decal - Hydraulic Oil Options: 37 1700419 1 Decal - Hydraulic Oil (Prior to April 2000) 37 1701504 1 Decal - Hydraulic Oil (April 2000 to Present) 38 Ref Decal - Caution Options: 38 1700460 2 Decal - Caution (Prior to March 1994) 38 1702280 2 Decal - Caution (March 1994 to Present) 40 1702282 1 Decal - Warning (March 1994 to Present) 41 1702631 1 Decal - Bar Code 42 1702688 2 Decal - 500Lbs Max Capacity 0251241 Ref CAPACITY DECAL PLATES INSTALLATION - 265KG (FRENCH
SPEC) (NOT SHOWN)
B
101 9983243 1 Decal - 265kg (Located on Platform Console Box) 102 3820001 4 Rivet 0251301 Ref CORNER WARNING STRIPES INSTALLATION (NOT SHOWN) A 151 4420051 AR Tape, Safety (Black/Yellow) 0252104 Ref DECAL INSTALLATION - MANUAL DESCENT 201 1701557 1 Decal - Instructions 202 1701558 4 Decal - Manual Descent (Located on Lift Cylinders) (Not Shown) 203 1701556 1 Decal - Manual Descent
