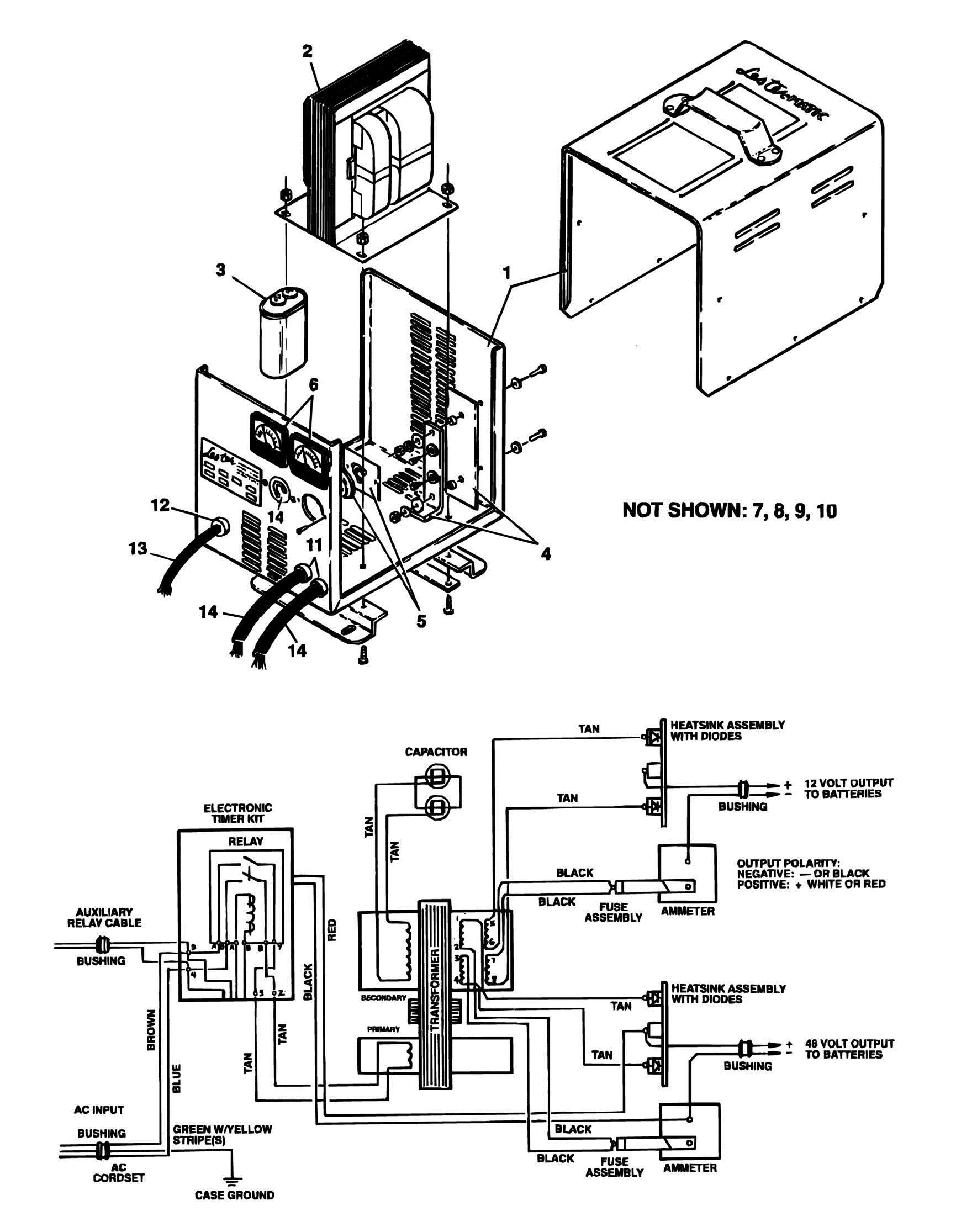

FIGURE 2 18. BATTERY CHARGER ASSEMBLY
FIGURE 2-18. BATTERY CHARGER ASSEMBLY
FIGURE 2-18. BATTERY CHARGER ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
0400096 Ref BATTERY CHARGER ASSEMBLY 1 Not Serviced 1 Case, Assembly 2 Not Available 1 Transformer Assembly 3 7005902 1 Capacitor - 6MFD/660 VAC 4 7005971 2 Heatsink Assembly 5 7005963 2 Fuse Assembly 6 Not Available 2 Ammeter 7 Not Available 1 Timer, Electronic 8 Not Available 1 Relay 9 7005962 1 Auxiliary Relay Cable Assembly 48VDC 10 7005960 1 Bushing (Auxiliary Relay) 11 7005935 2 Bushing (DC Cord) 12 Not Available 1 Bushing (AC Cord) 13 Not Available 1 Cord Set (AC) 14 Not Available 1 Cord Set, (DC)
