GENERATOR (CE SPEC FIGURE 8-14. AC BOX AT PLATFORM INSTALLATION - 220V AFSINT 107 KEYED GROUND WITH 4000W GENERATOR (CE

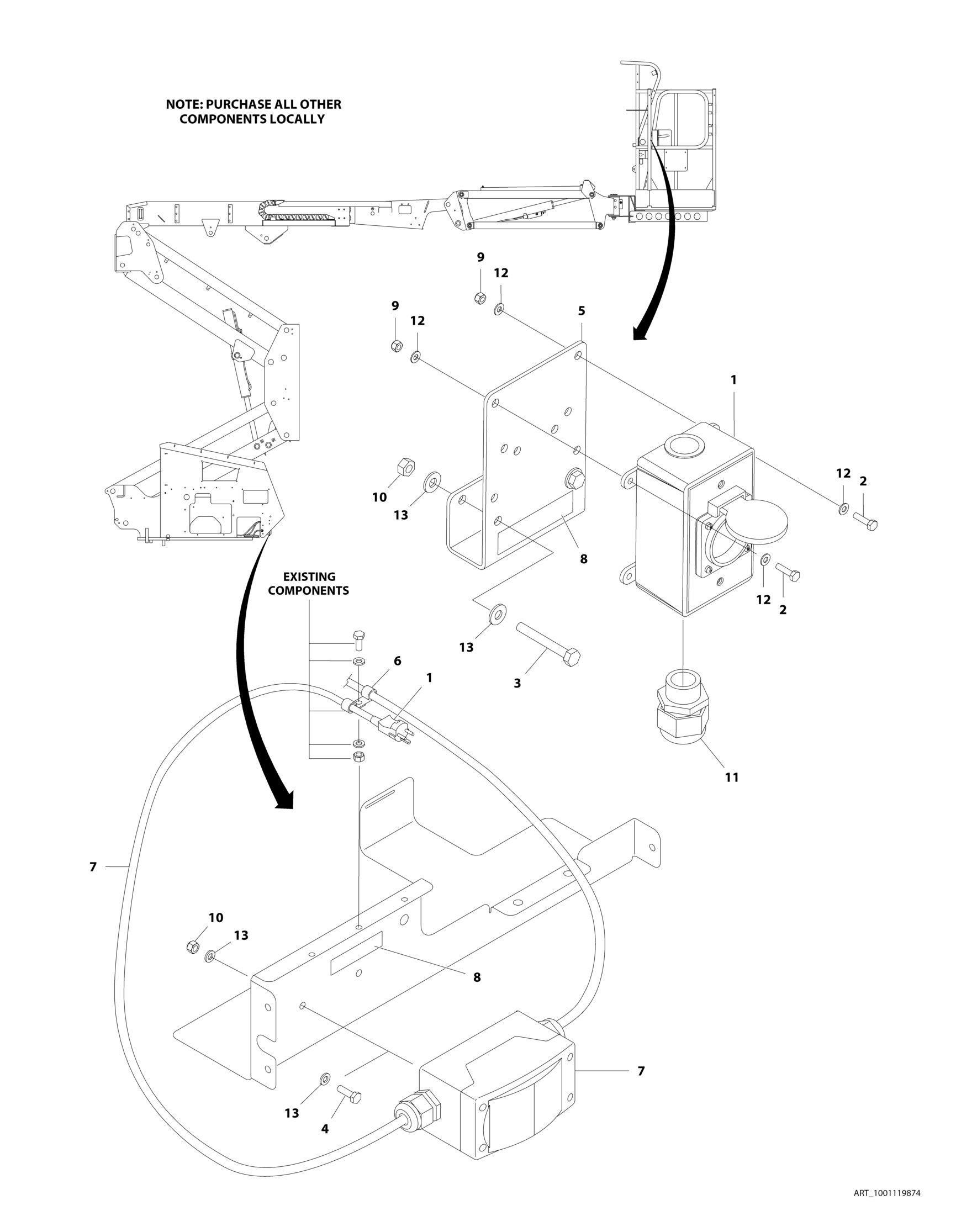

FIGURE 8-13. AC BOX AT PLATFORM INSTALLATION - 220V AFSINT 107 KEYED GROUND WITHOUT 4000W GENERATOR (CE SPEC)

FIGURE 8-13. AC BOX AT PLATFORM INSTALLATION - 220V AFSINT 107 KEYED GROUND WITHOUT 4000W GENERATOR (CE SPEC)

ITEM PART NUMBER QTY

DESCRIPTION

1001119874 Ref AC BOX AT PLATFORM INSTALLATION - 220V AFSINT 107 KEYED GROUND WITH 2IN X 4IN BOX 1 0275454 1 Receptacle Box Kit (See Separate Breakdown in this Section) 2 0700408 4 Bolt M4 x 16 3 0700618 2 Bolt M6 x 50 4 0760610 2 Bolt M6 x 20 5 1001193018 1 Bracket 6 1320043 1 Clamp 7 2902549 1 Breaker Box Kit (See Separate Breakdown in this Section) 8 3252507 2 Decal - 220V - 50/60Hz 9 3290405 4 Nut M4 10 3290605 4 Nut M6 11 4460662 1 Connector, Strain Relief 12 4811400 8 Washer M4 13 4811700 8 Washer M6

REV

C
