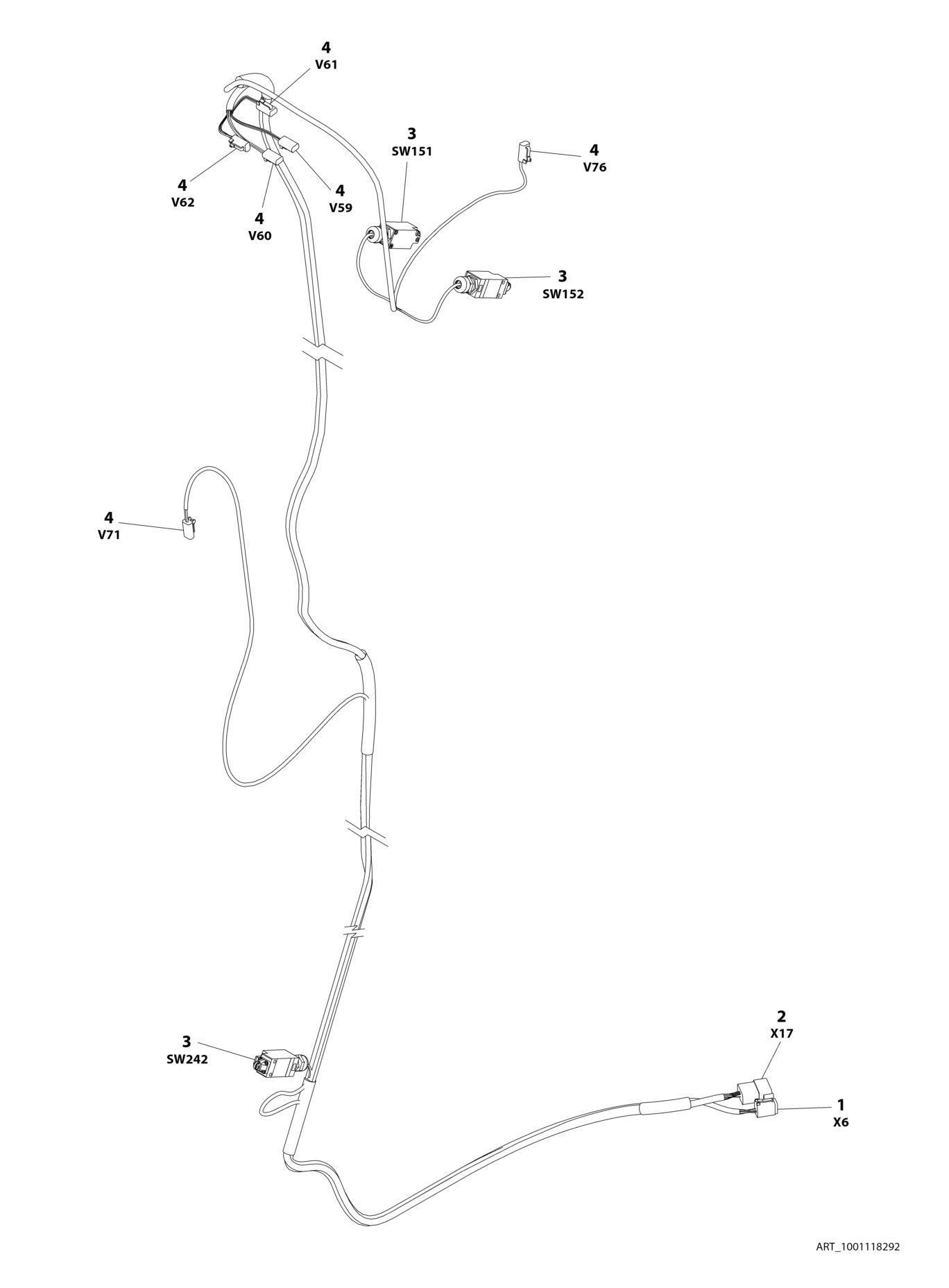

FIGURE 8-29. BOOM HARNESS - LIMIT SWITCHES AND UPRIGHT VALVE
ITEM PART NUMBER QTY DESCRIPTION REV
1001118292 Ref BOOM HARNESS - LIMIT SWITCHES AND UPRIGHT VALVE D 1 4460894 1 Plug, Male - 6 Position 1 4460465 6 Socket, Female 2 4460970 1 Receptacle, Female - 12 Position 2 4460464 9 Pin, Male 2 4460466 3 Plug, Terminal 3 4360548 3 Switch, Limit 3 4460968 3 Connector, Strain Relief 3 0962449 3 Bushing 4 4460891 6 Plug, Male - 2 Position 4 4460465 12 Socket, Female 5 1001257690 1 Connector, Strain Relief 90 (Not Shown)
